Radio Volume Compensator Interior Noise Microphone Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

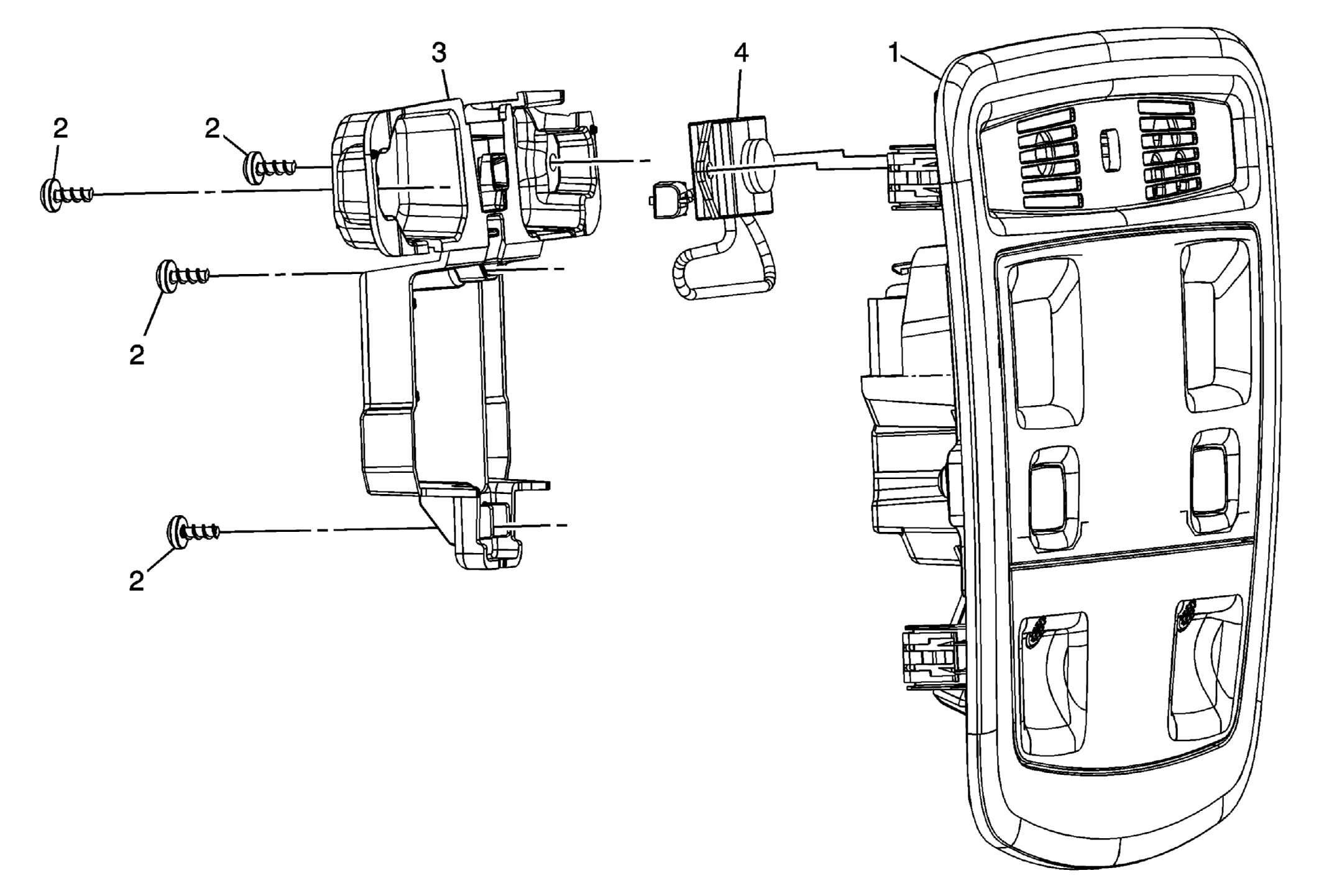

| Callout | Component Name |
|---|---|
| 1 | Front Overhead Console Assembly |
| 2 | Front Overhead Console Reinforcement Bracket Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Front Overhead Console Reinforcement Bracket |
| 4 | Radio Volume Compensator Interior Noise Microphone Assembly |
