Door Control Module Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Driver Door Module Schematic (1 of 2)
GM1932288Courtesy of GENERAL MOTORS CORP.

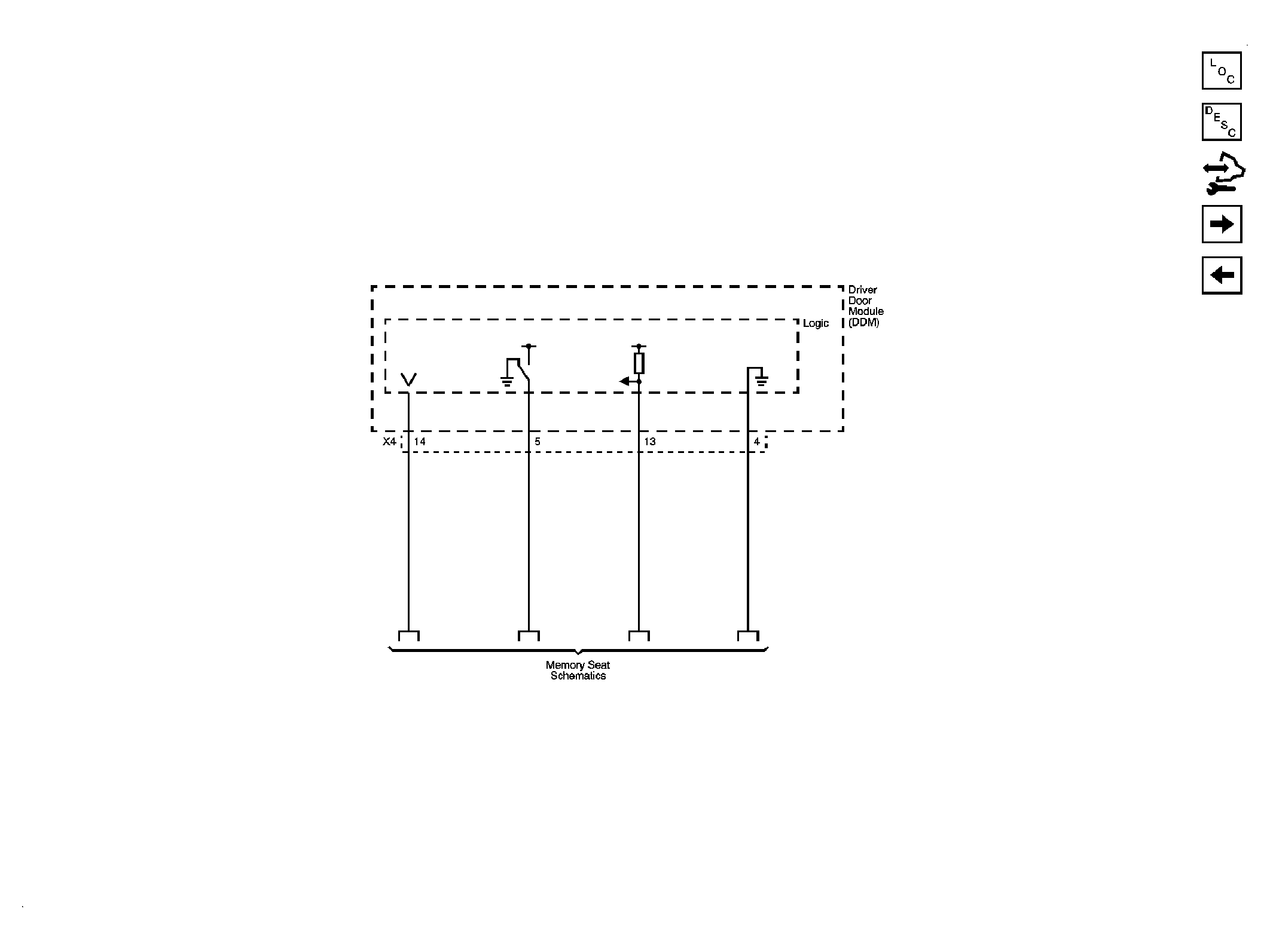

Fig 2: Driver Door Module Schematic (2 of 2)
GM1932291Courtesy of GENERAL MOTORS CORP.

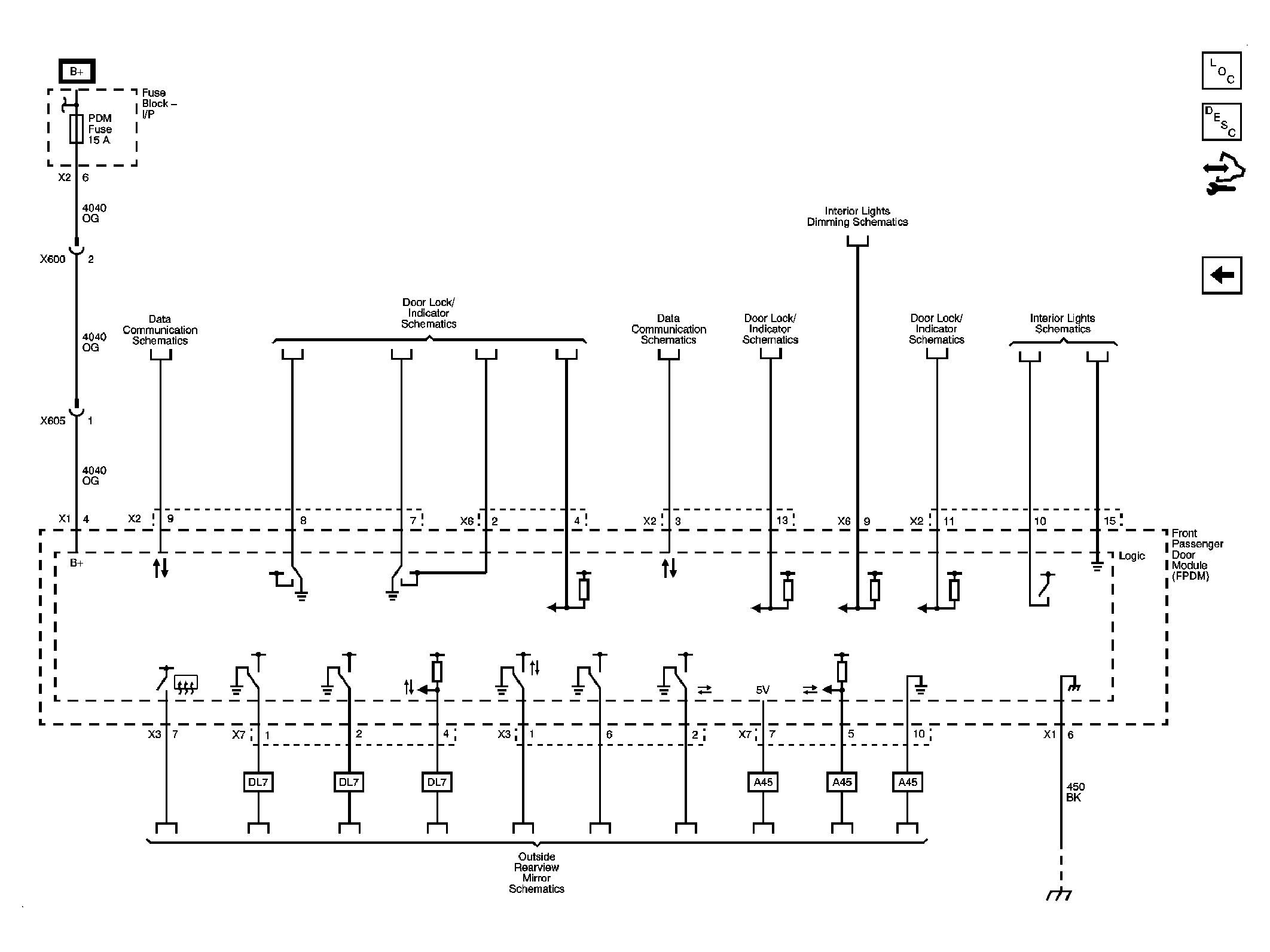

Fig 3: Front Door Passenger Door Module Schematic
GM1932293Courtesy of GENERAL MOTORS CORP.
