Front of Vehicle/Engine Compartment Component Views

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

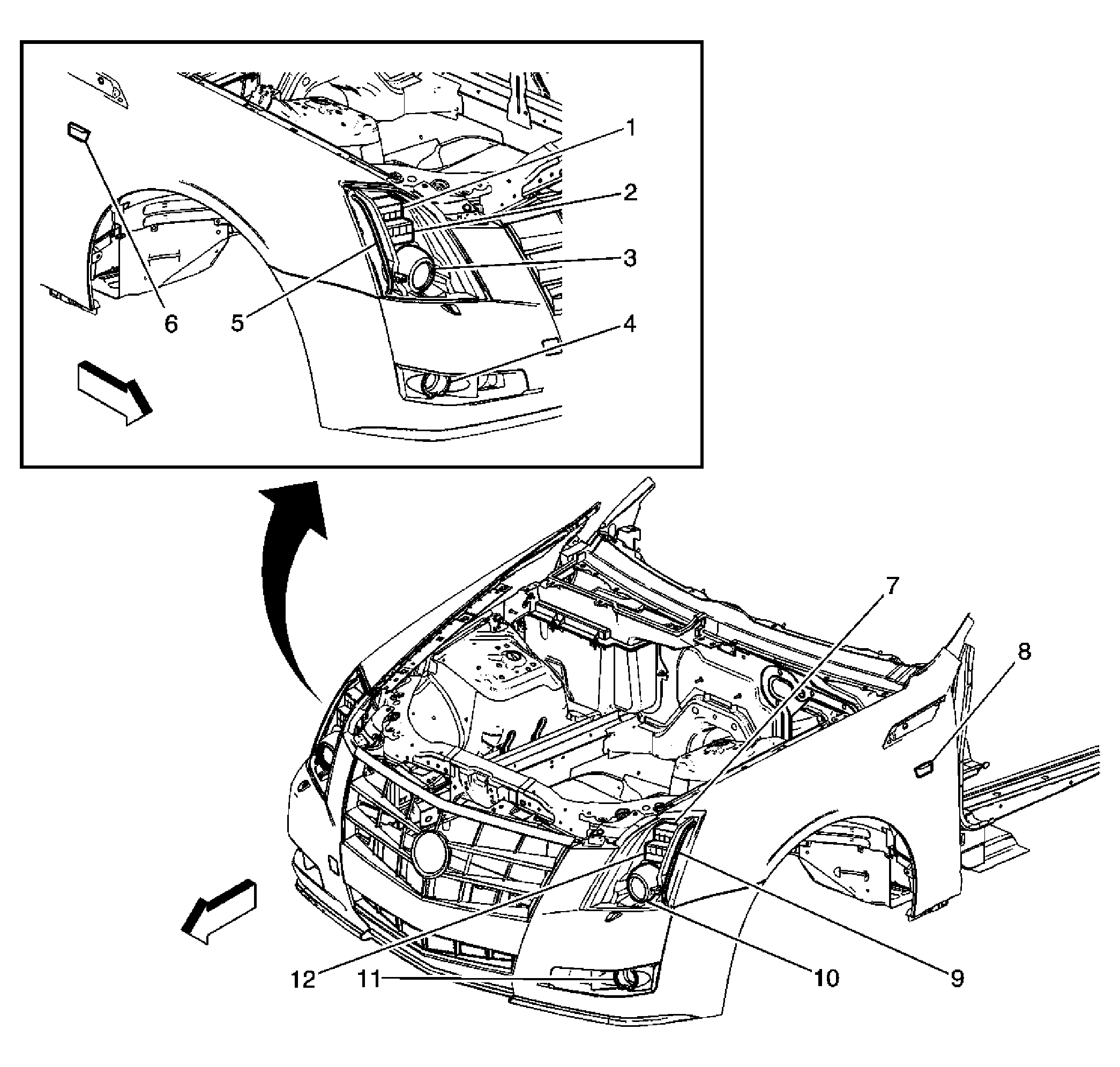

Fig 1: Front Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Lamp - Right Front
2	Daytime Running Lamp (DRL) - Right (TT6/TT7/TT8)
3	Headlamp - Right High/Low Beam
4	Fog Lamp - Right Front
5	Side Marker Tube-Right Front
6	Repeater Lamp - Right (T90)
7	Turn Signal Lamp - Left Front
8	Repeater Lamp - Left (T90)
9	Side Marker Tube-Left Front
10	Headlamp - Left High/Low Beam
11	Fog Lamp-Left
12	Daytime Running Lamp (DRL) - Left (TT6/TT7/TT8)

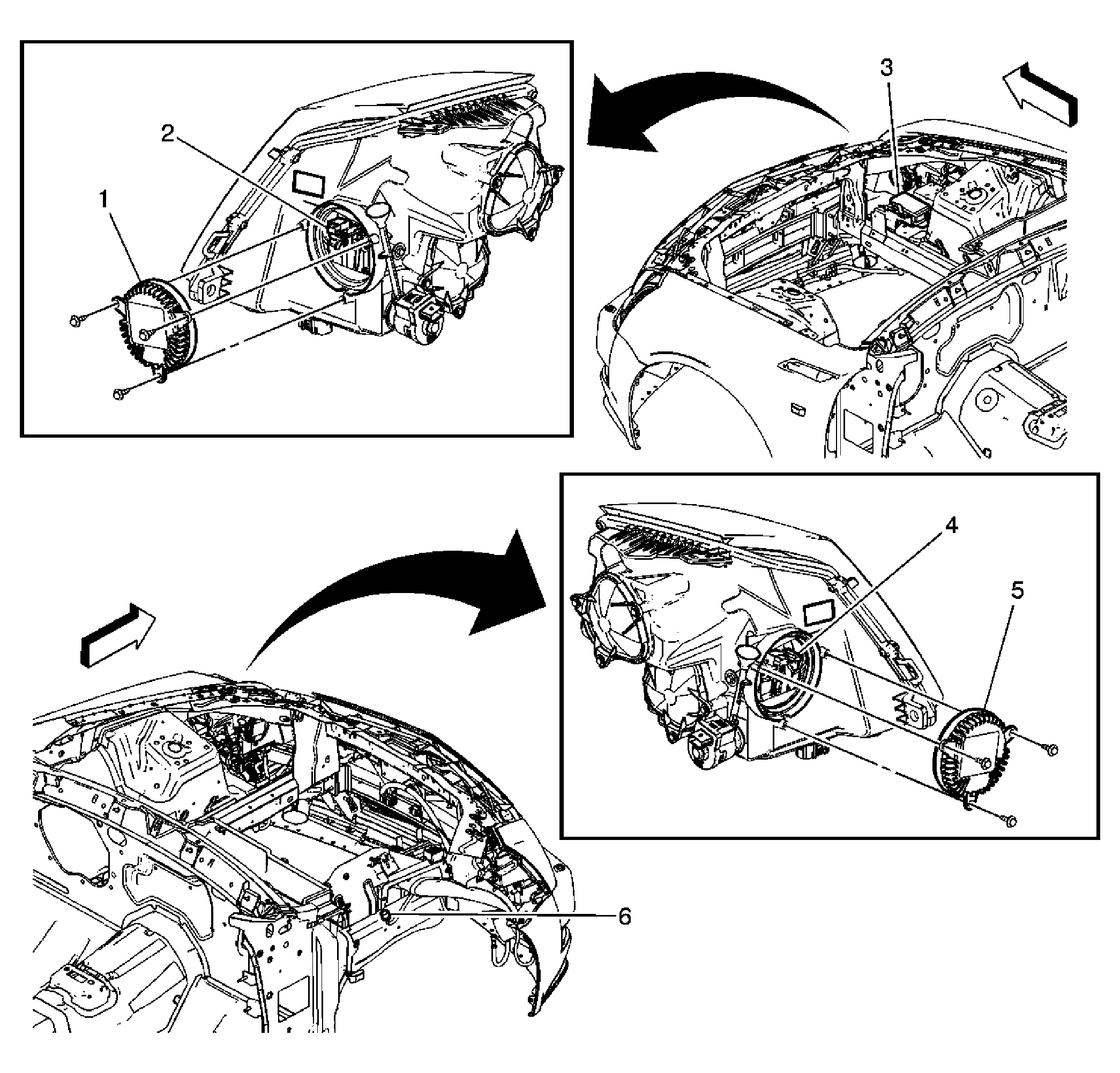

Fig 2: Headlamps - Uplevel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Ballast - Right (TT6/TT7/TT8)
2	Headlamp Motor - Right (TR7+TT6/TT7/TT8)
3	Headlamp Module (TT6/TT7/TT8)
4	Headlamp Motor - Left (TR7+TT6/TT7/TT8)
5	Headlamp - Ballast Left (TT6/TT7/TT8)
6	Headlamp Leveling Sensor - Right Front (TR7)

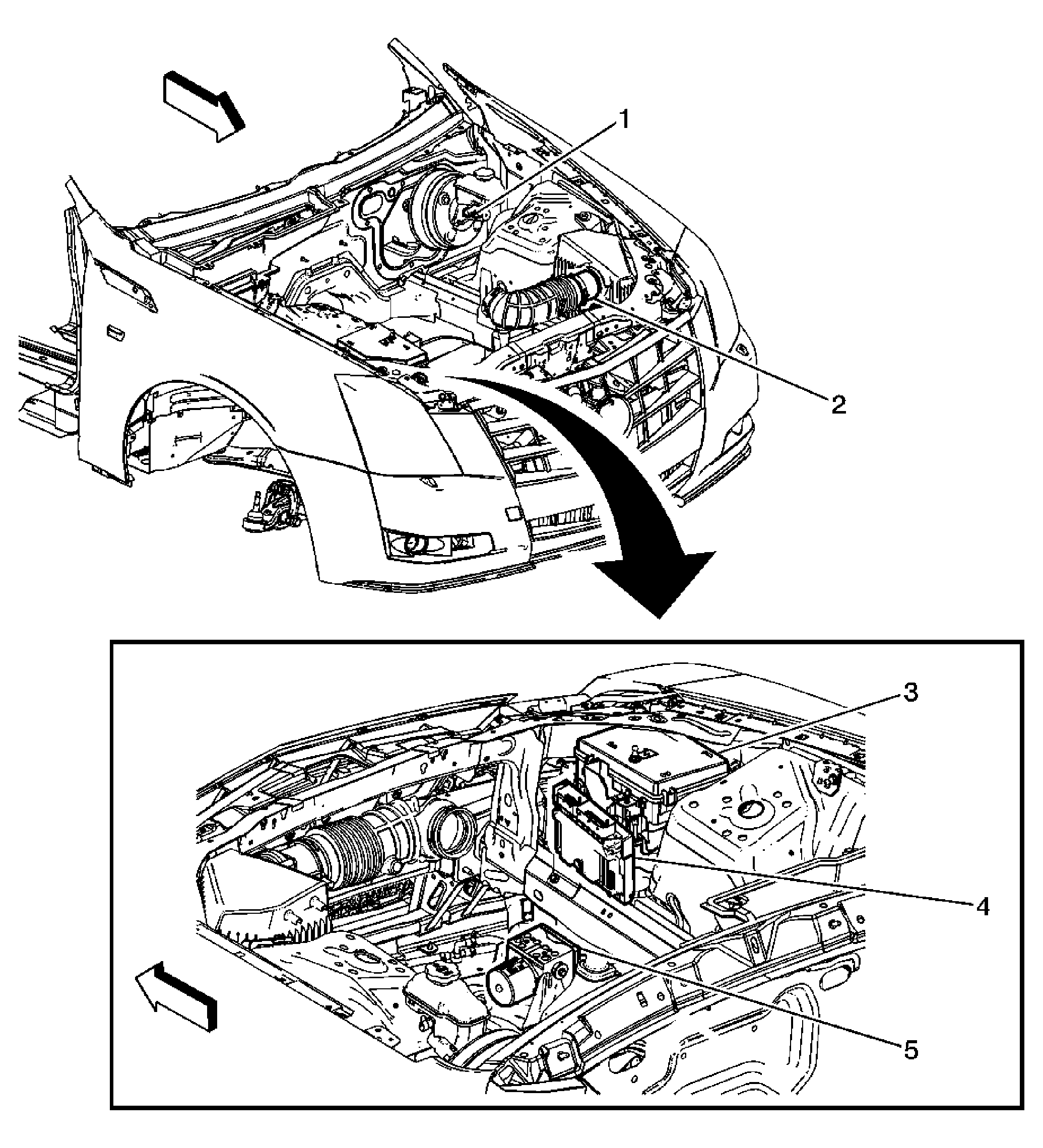

Fig 3: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor (LLT)
3	Fuse Block - Underhood
4	Engine Control Module (ECM)
5	Electronic Brake Control Module (EBCM)

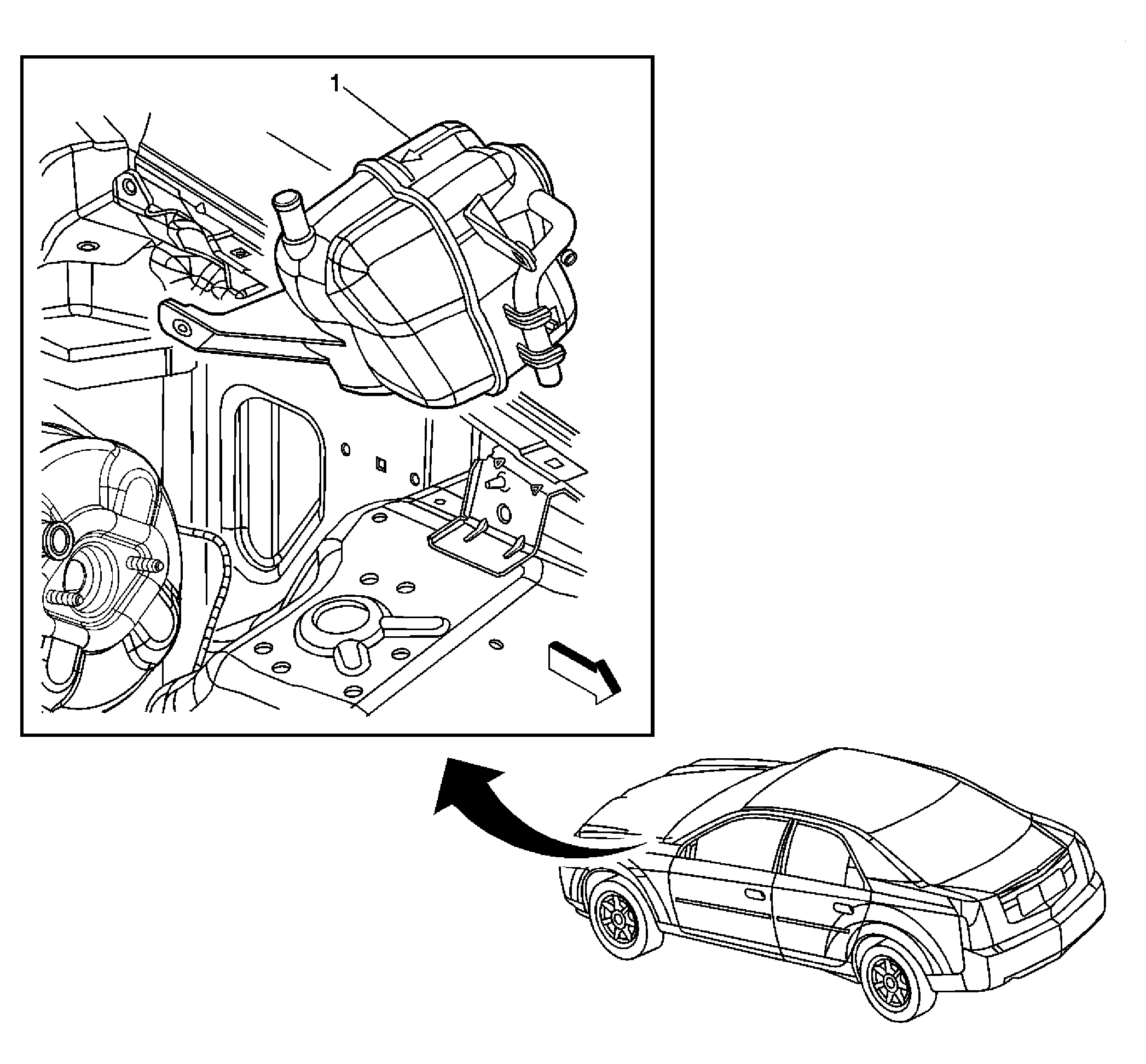

Fig 4: Coolant Surge Tank Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Surge Tank (RHD)
2	Coolant Surge Tank (LHD)

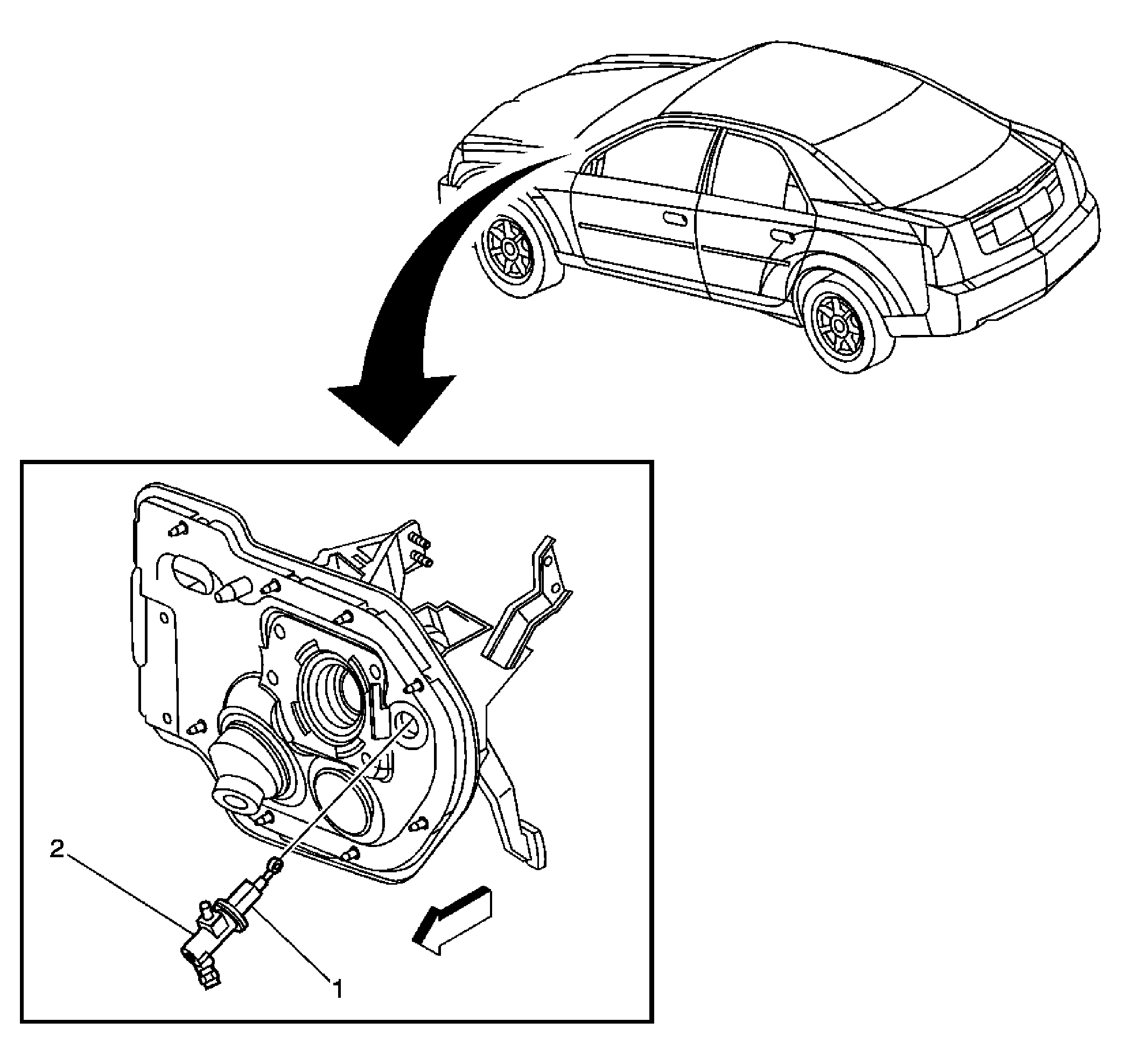

Fig 5: Clutch Pedal Position (CPP) Sensor Component View (M35/M12/MN6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Switch
2	Clutch Master Cylinder
