Instrument Panel/Center Console Component Views
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

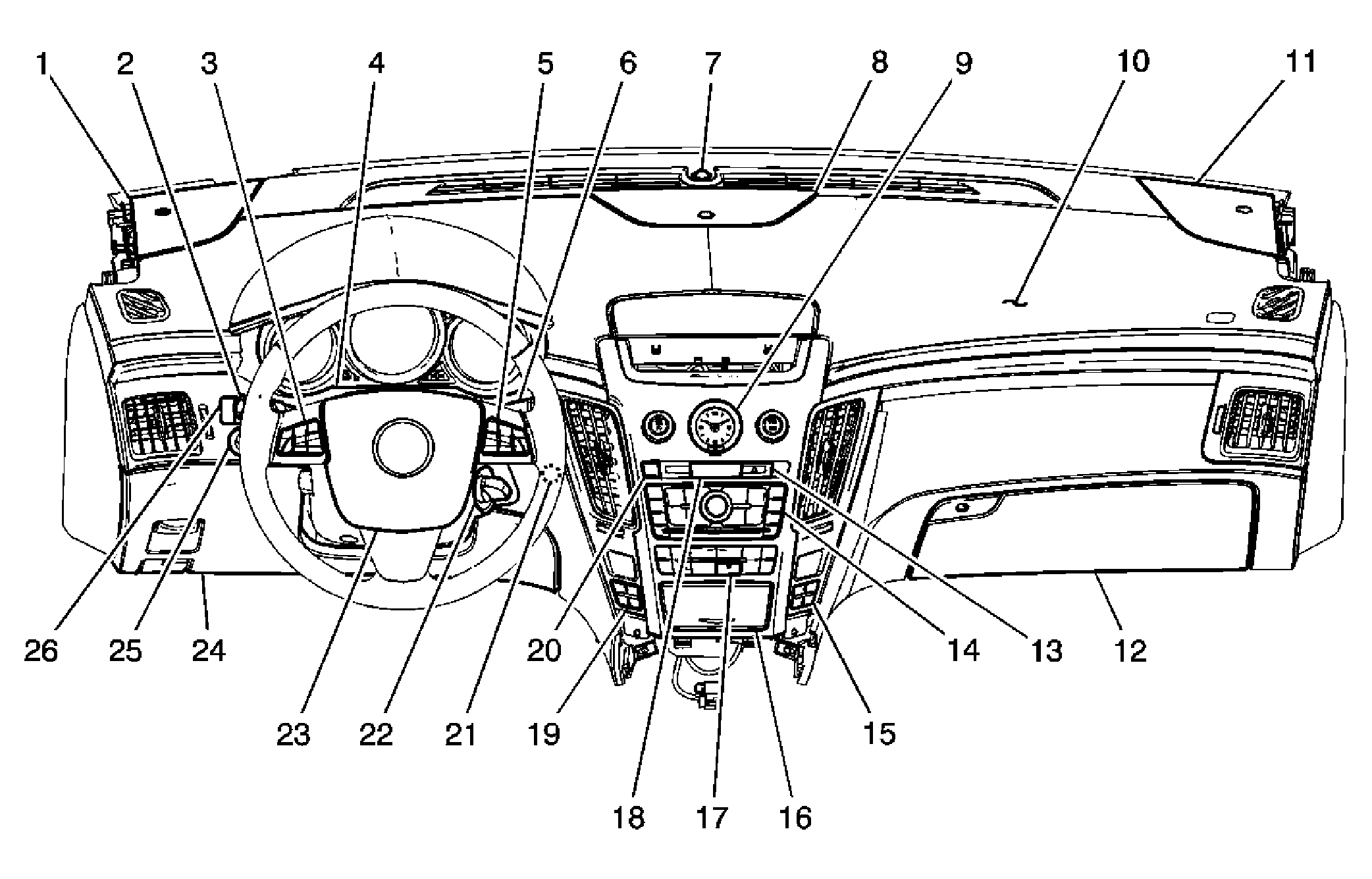

| Callout | Component Name |
|---|---|
| 1 | Speaker - Left Front |
| 2 | Turn Signal/Multifunction Switch |
| 3 | Steering Wheel Control Switch Assembly - Left (-KA9) |
| 4 | Instrument Panel Cluster (IPC) |
| 5 | Steering Wheel Control Switch Assembly - Right |
| 6 | Windshield Wiper/Washer Switch |
| 7 | Sunload Sensor |
| 8 | Speaker - Front Center |
| 9 | Analog Clock |
| 10 | Inflatable Restraint I/P Module |
| 11 | Speaker - Right Front |
| 12 | Instrument Panel Compartment Lamp |
| 13 | Hazard Switch |
| 14 | Radio/Navigation Unit |
| 15 | Heated Seat Switch - Front Passenger Seat |
| 16 | Auxiliary Power Outlet - Console Front |
| 17 | HVAC Control |
| 18 | Inflatable Restraint I/P Module AIRBAG Indicator |
| 19 | Heated Seat Switch-Driver |
| 20 | Traction Control Switch |
| 21 | Air Temperature Sensor - Inside |
| 22 | Ignition Switch |
| 23 | Inflatable Restraint Steering Wheel Module |
| 24 | Data Link Connector (DLC) |
| 25 | Instrument Panel Dimmer Switch |
| 26 | Driver Information Center (DIC) |
| Callout | Component Name |
|---|---|
| 1 | Accelerator Pedal Position (APP) Sensor |
| 2 | Accelerator Pedal |
| 3 | Brake Pedal |
| 4 | Brake Pedal Position (BPP) Sensor |

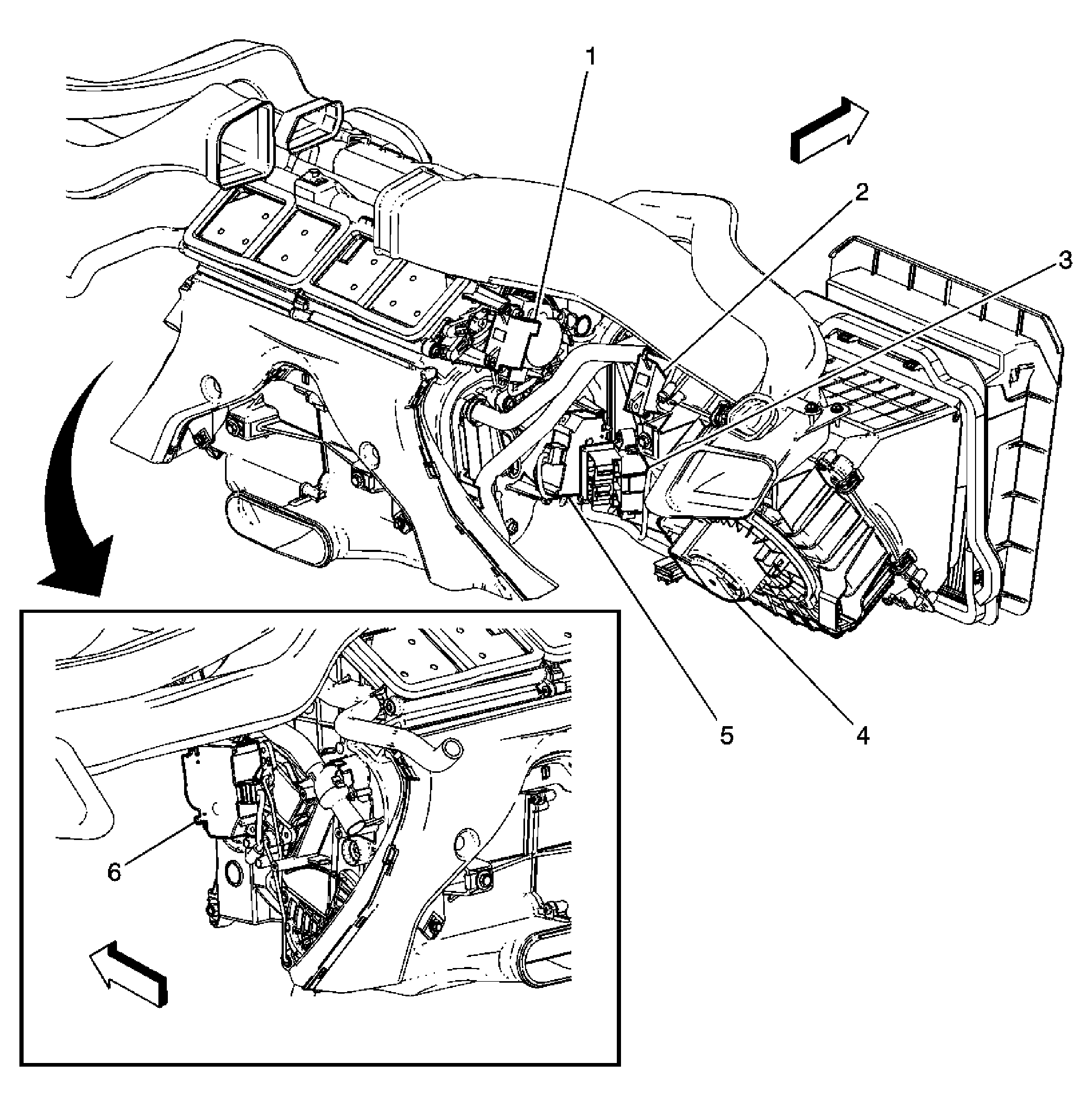

| Callout | Component Name |
|---|---|
| 1 | Mode Actuator |
| 2 | Recirculation Actuator |
| 3 | Blower Motor Control Processor |
| 4 | Blower Motor |
| 5 | Air Temperature Actuator - Passenger |
| 6 | Air Temperature Actuator - Driver |

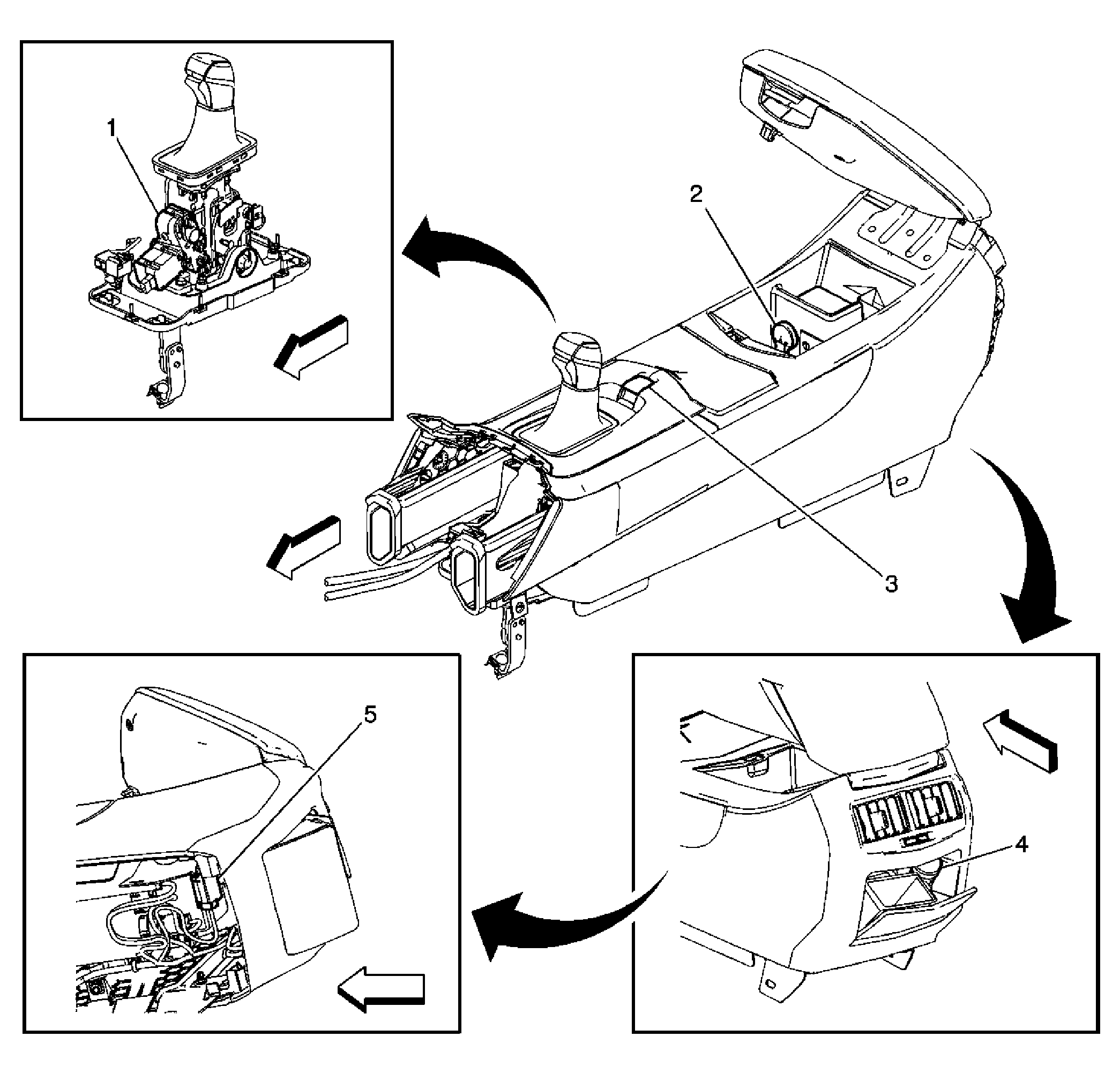

| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Solenoid (MYB) |
| 2 | Auxiliary Power Outlet - Console Front |
| 3 | Park Brake Switch |
| 4 | Auxiliary Power Outlet - Console Rear |
| 5 | Keyless Entry Antenna - Passenger Compartment (UHA/UHF) |
