Passenger Compartment/Roof Component Views
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

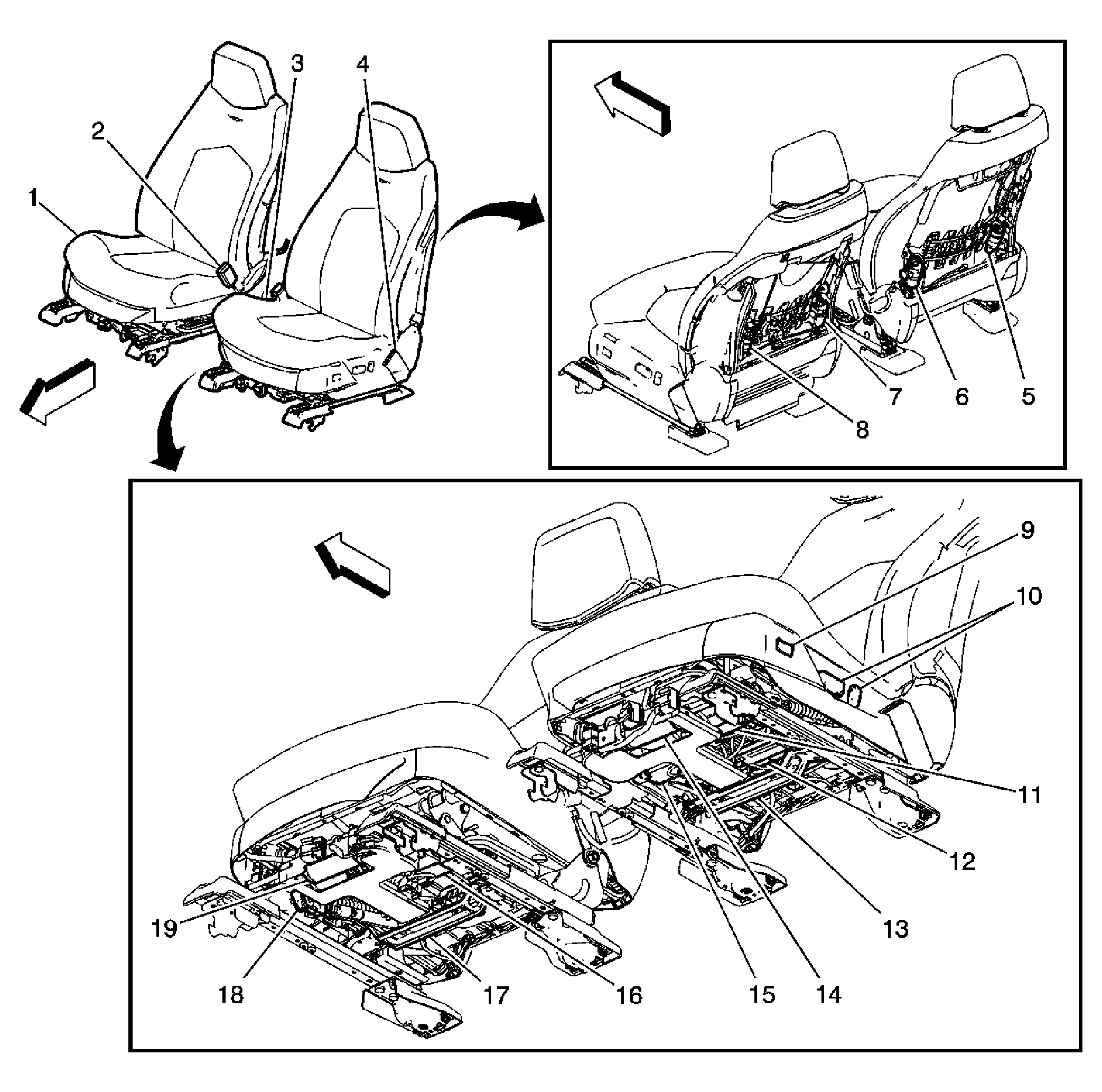

| Callout | Component Name |
|---|---|
| 1 | Passenger Seat |
| 2 | Driver Seat |
| 3 | Lumbar Horizontal Motor - Passenger (AL2) |
| 4 | Seat Recline Motor - Passenger (AH8) |
| 5 | Lumbar Horizontal Motor Assembly - Driver (AL2) |
| 6 | Seat Recline Motor - Driver (-A45) |
| 7 | Seat Rear Vertical Motor - Driver (A45) |
| 8 | Memory Seat Module (MSM) (A45) |
| 9 | Seat Front Vertical Motor - Driver (A45) |
| 10 | Seat Horizontal Motor - Driver (A45) |
| 11 | Seat Rear Vertical Motor - Passenger (AH8) |
| 12 | Seat Horizontal Motor - Passenger (AH8) |
| 13 | Seat Front Vertical Motor - Passenger (AH8) |

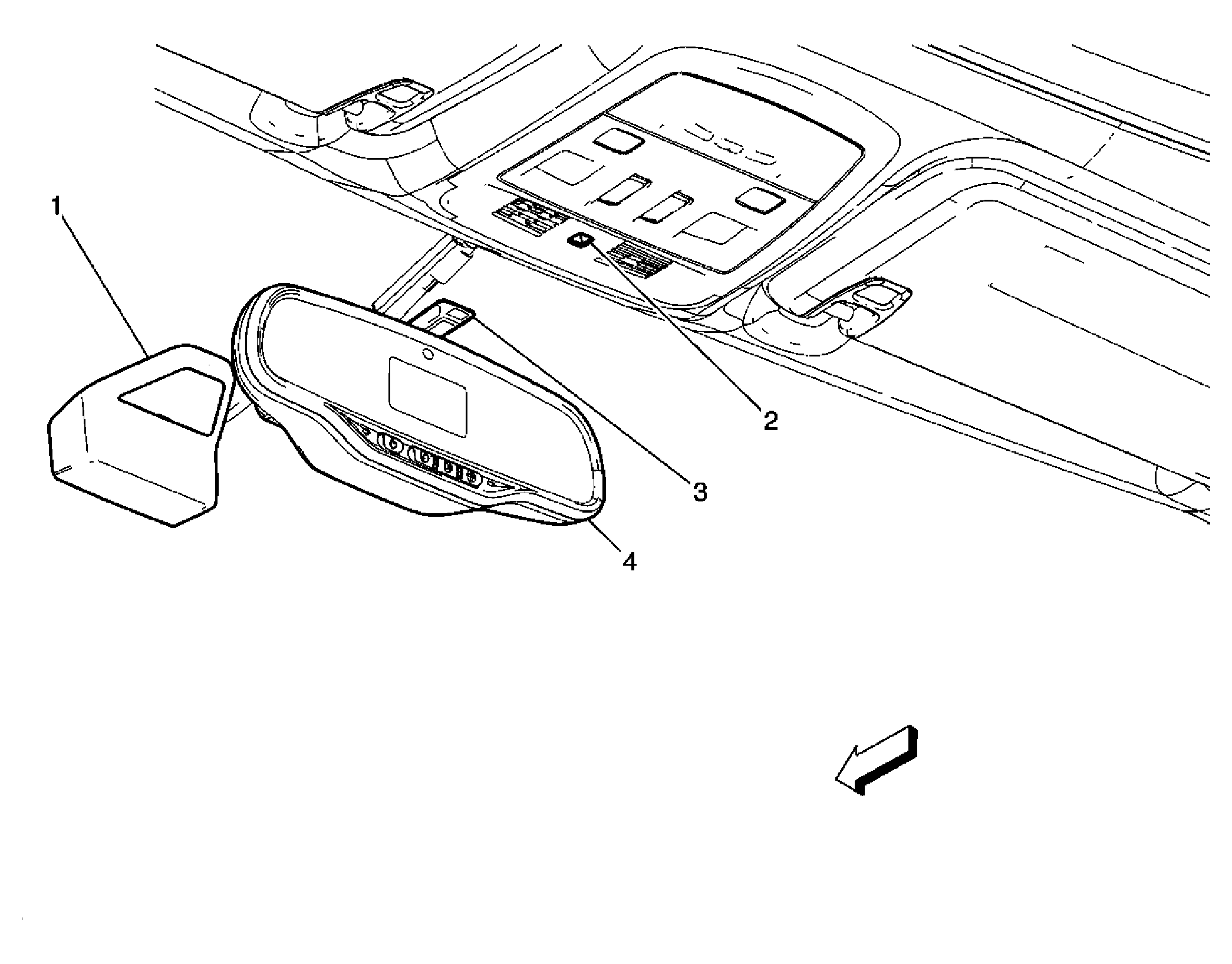

| Callout | Component Name |
|---|---|
| 1 | Navigation Antenna (UE1) |
| 2 | Inside Rearview Mirror (ISRVM) |

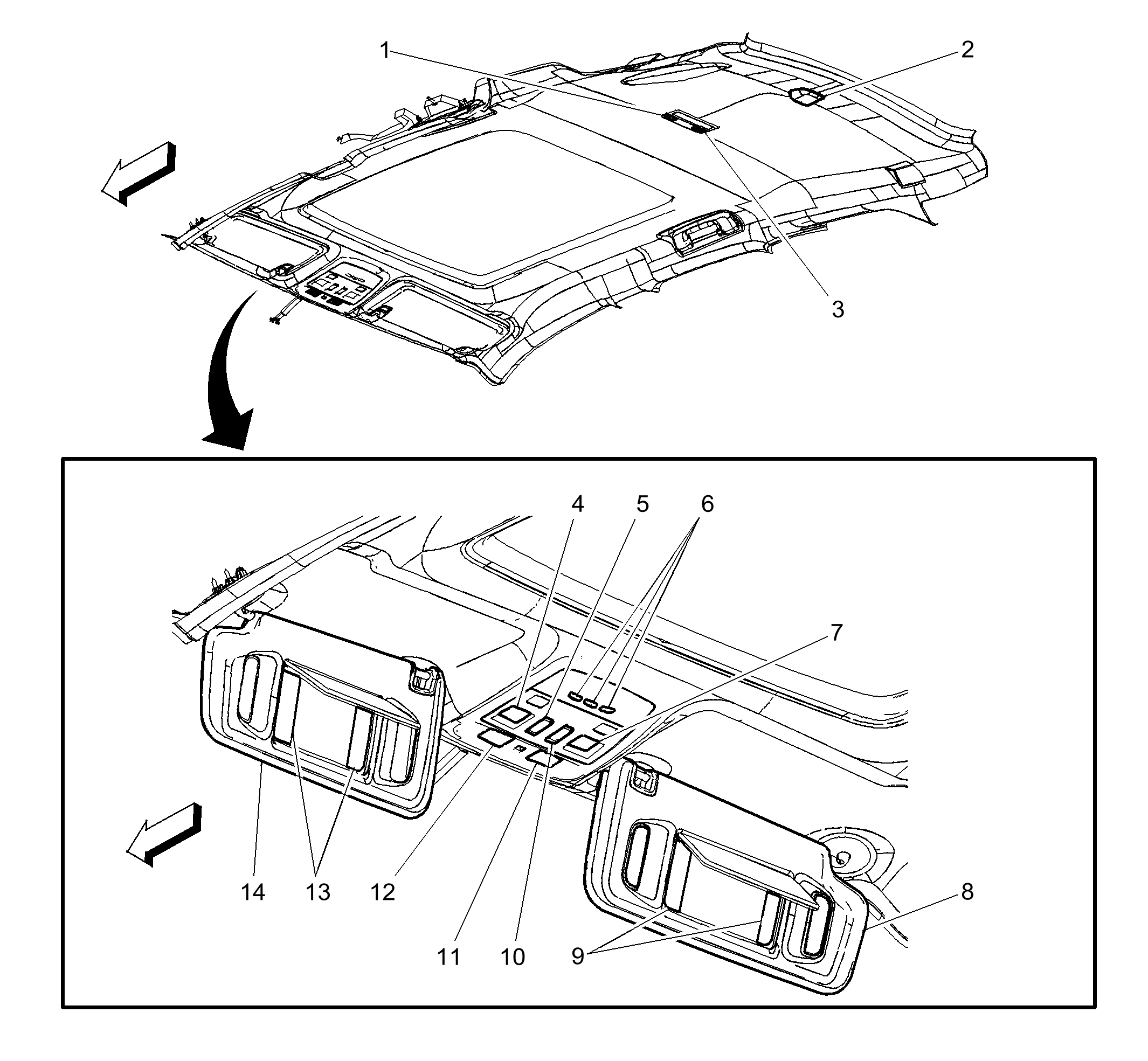

| Callout | Component Name |
|---|---|
| 1 | Courtesy/Reading Lamp - Left Rear |
| 2 | Rear Parking Assist (RPA) Display (UD7) |
| 3 | Courtesy/Reading Lamp - Right Rear |
| 4 | Courtesy/Reading Lamp - Left Front |
| 5 | Sunroof Shade Switch (C3U) |
| 6 | Garage Door Opener (UG1) |
| 7 | Courtesy/Reading Lamp - Right Front |
| 8 | Sunshade - Right |
| 9 | Vanity Lamps - Right Front |
| 10 | Sunroof Control Switch (C3U) |
| 11 | Noise Compensation Microphone (UQS) |
| 12 | Cellular/Navigation Microphone (UE1/WXS) |
| 13 | Vanity Lamps - Left Front |
| 14 | Sunshade - Left |

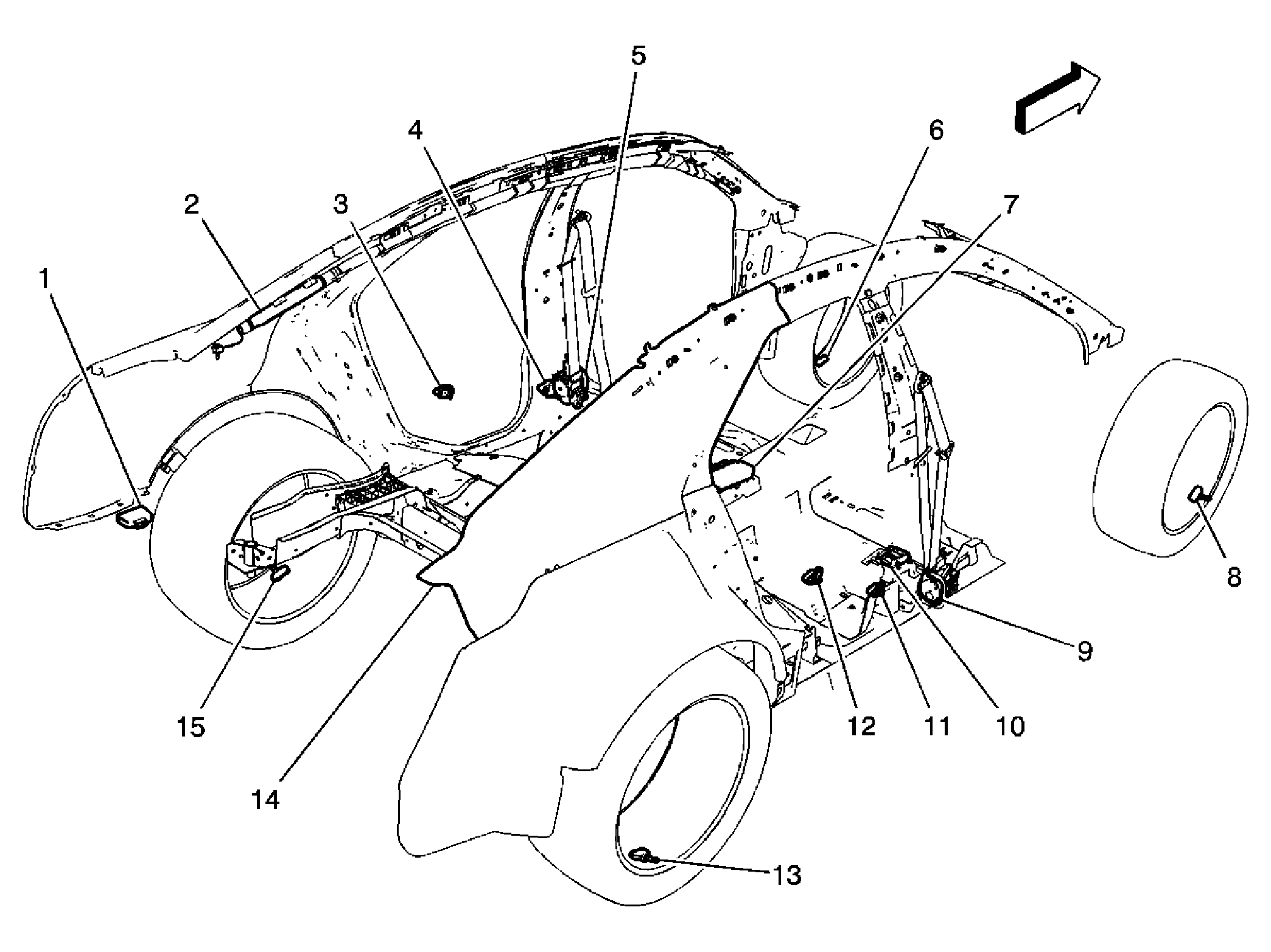

| Callout | Component Name |
|---|---|
| 1 | Tire Pressure Monitor (TPM) Module (UH3) |
| 2 | Inflatable Restraint Roof Rail Module - Driver |
| 3 | Inflatable Restraint Side Impact Sensor (SISM) - Left Rear |
| 4 | Inflatable Restraint Side Impact Sensor (SISM) - Left Front |
| 5 | Seat Belt Retractor Pretensioner - Driver |
| 6 | Tire Pressure Sensor - Left Front (UH3/UJ6) |
| 7 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 8 | Tire Pressure Sensor - Right Front (UH3/UJ6) |
| 9 | Seat Belt Retractor Pretensioner - Front Passenger |
| 10 | Yaw Rate and Lateral Acceleration Sensor |
| 11 | Inflatable Restraint Side Impact Sensor (SISM) - Right Front |
| 12 | Inflatable Restraint Side Impact Sensor (SISM) - Right Rear |
| 13 | Tire Pressure Sensor - Right Rear (UH3/UJ6) |
| 14 | Inflatable Restraint Roof Rail Module - Passenger |
| 15 | Tire Pressure Sensor - Left Rear (UH3/UJ6) |

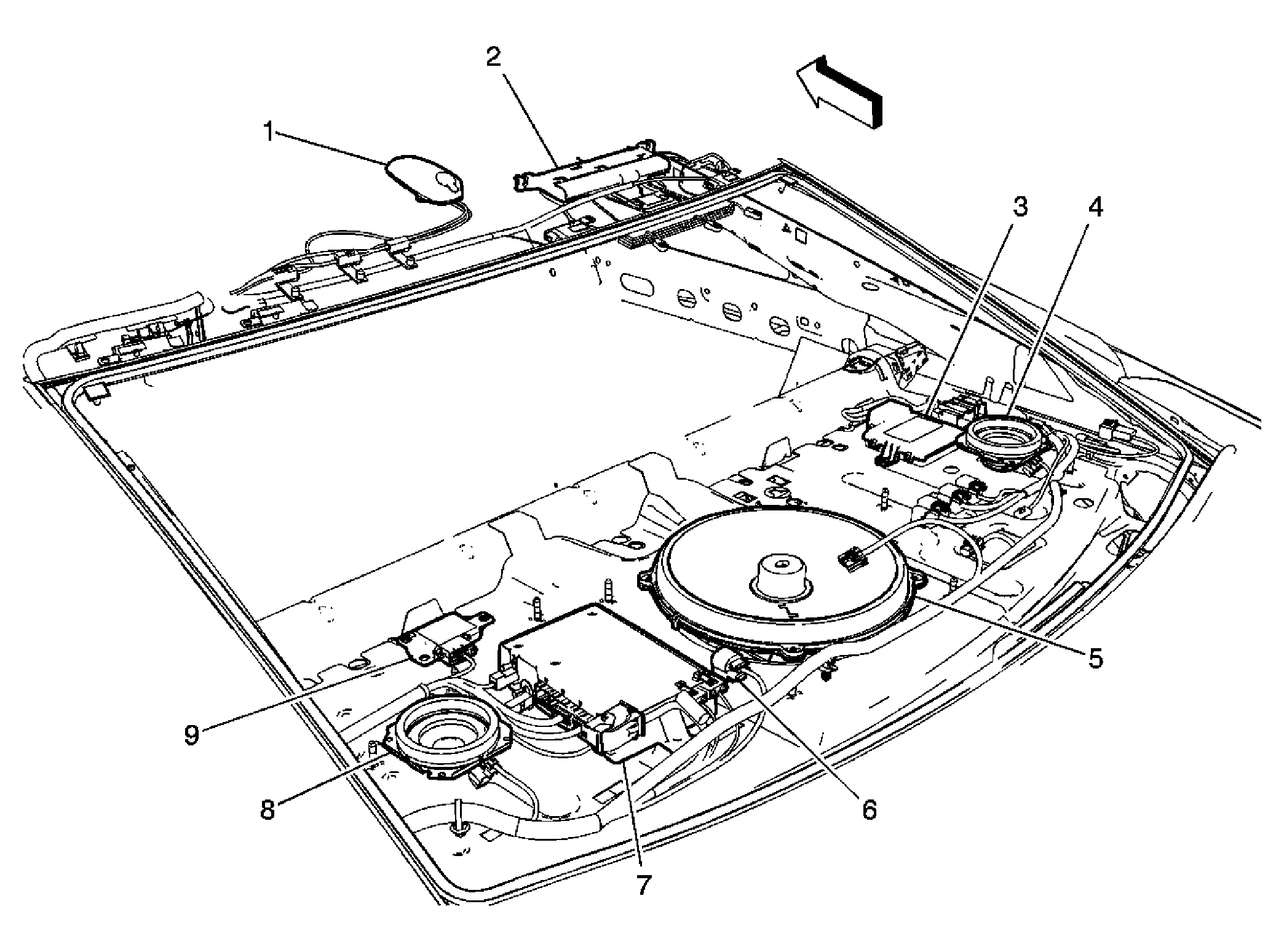

| Callout | Component Name |
|---|---|
| 1 | Audio Amplifier |
| 2 | Radio Antenna Module |
| 3 | Rear Parking Assist (RPA) Module |
| 4 | Speaker - Right Rear (UQS) |
| 5 | Speaker - Rear Subwoofer |
| 6 | Data Link Resistor - Rear (CV3-UE1) |
| 7 | Vehicle Communication Interface Module (VCIM) Battery (UE1) |
| 8 | Speaker - Left Rear (UQS) |
| 9 | Compass Module |

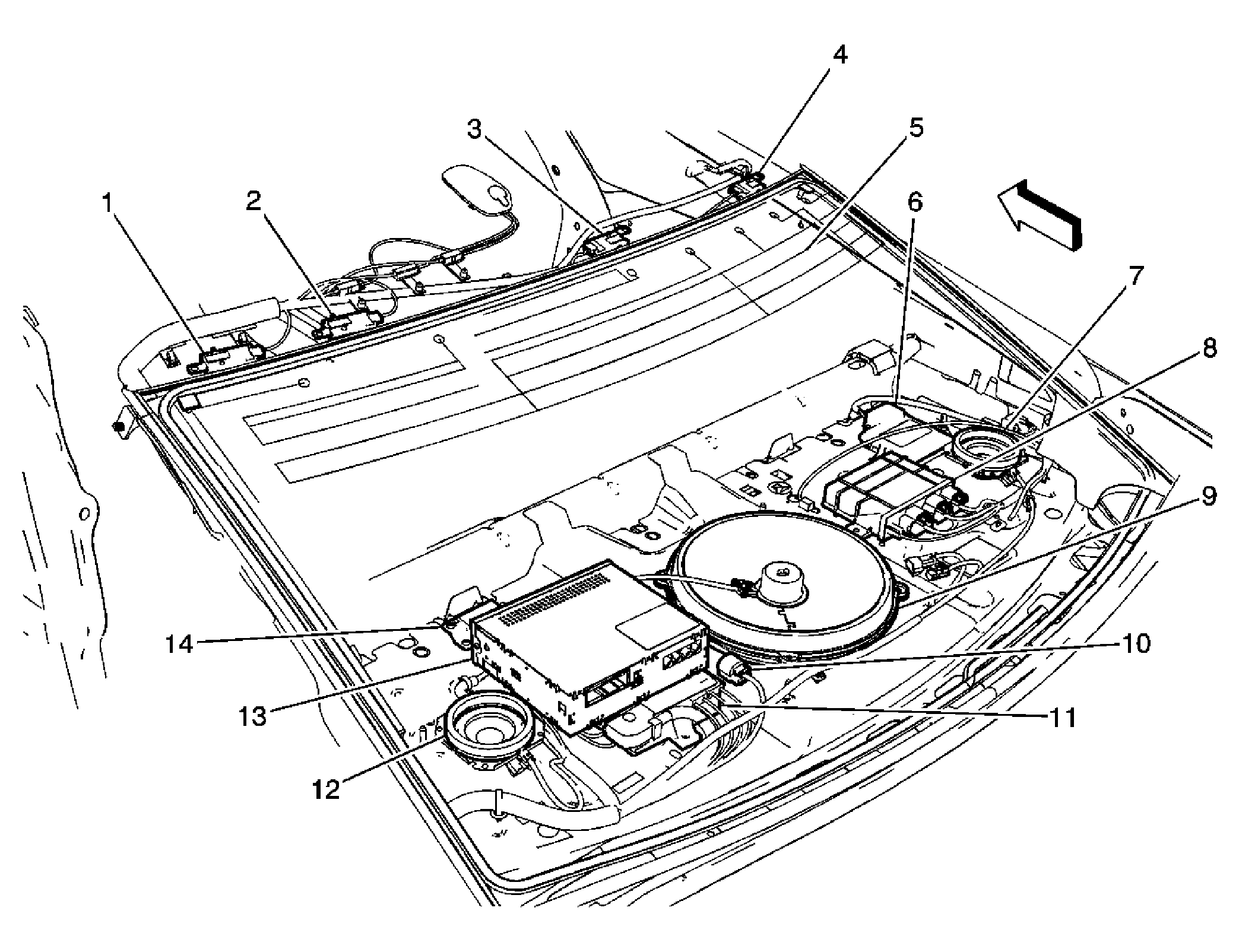

| Callout | Component Name |
|---|---|
| 1 | TV Antenna Amplifier (U2X/U2Y) |
| 2 | TV Antenna Amplifier (U2X/U2Y) |
| 3 | TV Antenna Amplifier (U2X/U2Y) |
| 4 | TV Antenna Amplifier (U2X/U2Y) |
| 5 | TV Rear Glass Antenna (U2X/U2Y) |
| 6 | Rear Parking Assist (RPA) Module (UD7) |
| 7 | Speaker - Right Rear (UQS) |
| 8 | Remote Control Door Lock Receiver (RCDLR) (UHA/UHF) |
| 9 | Speaker - Rear Subwoofer |
| 10 | Data Link Resistor - Rear (CV3-UE1) |
| 11 | Traffic Information Receiver (U2X) |
| 12 | Speaker - Left Rear (UQS) |
| 13 | TV Antenna Module (U2X/U2Y) |
| 14 | Compass Module |
