Powertrain Component Views
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

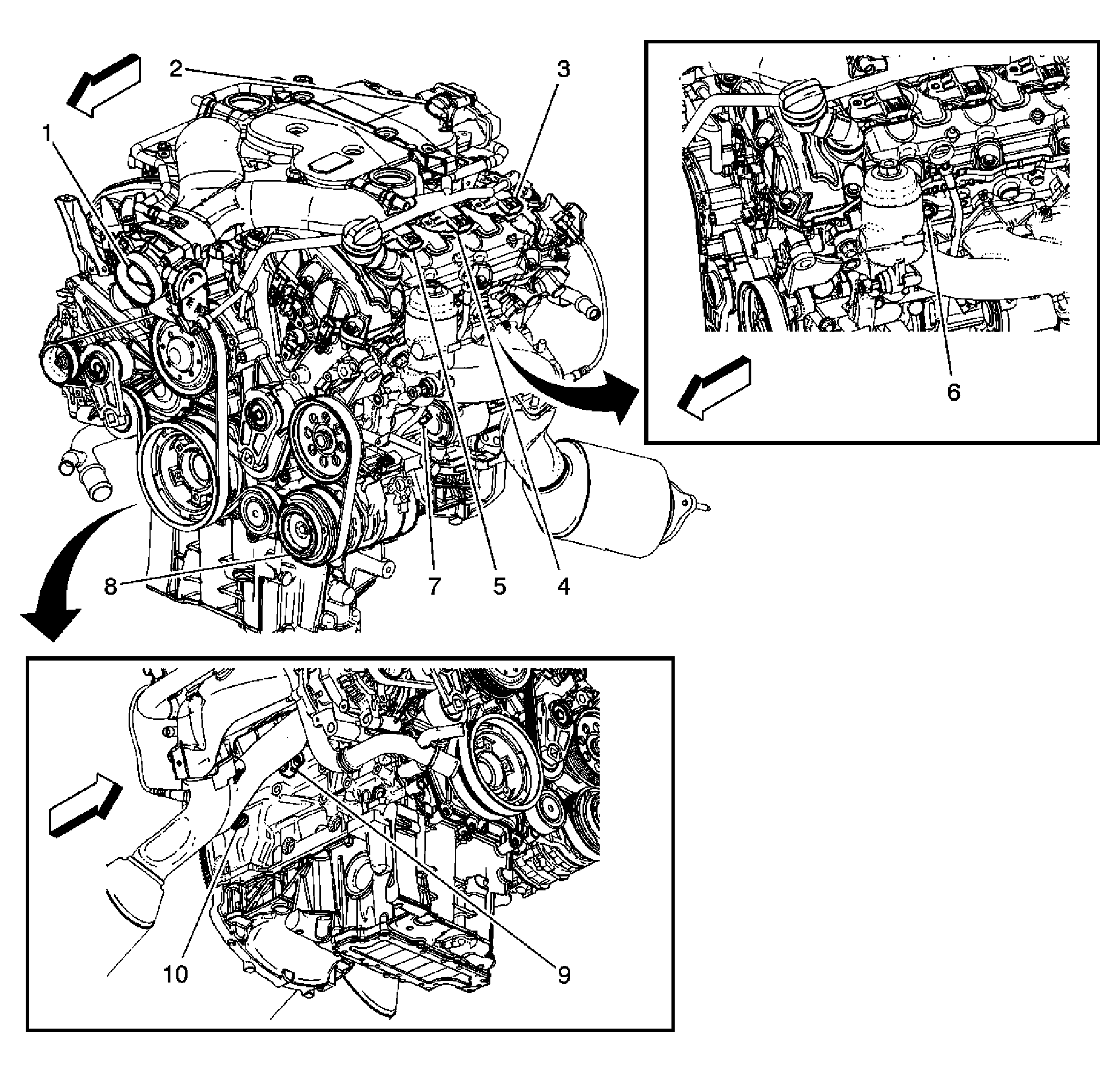

| Callout | Component Name |
|---|---|
| 1 | Throttle Body (LLT/LP1/LY7) |
| 2 | Intake Manifold Tuning (IMT) Solenoid Valve (LLT/LP1/LY7) |
| 3 | Ignition Coil 5 (LLT/LP1/LY7) |
| 4 | Ignition Coil 3 (LLT/LP1/LY7) |
| 5 | Ignition Coil 1 (LLT/LP1/LY7) |
| 6 | Engine Coolant Temperature (ECT) Sensor (LLT/LP1/LY7) |
| 7 | Knock Sensor (KS) 2 |
| 8 | A/C Compressor Clutch |
| 9 | Knock Sensor (KS) 1 |
| 10 | Crankshaft Position (CKP) Sensor |

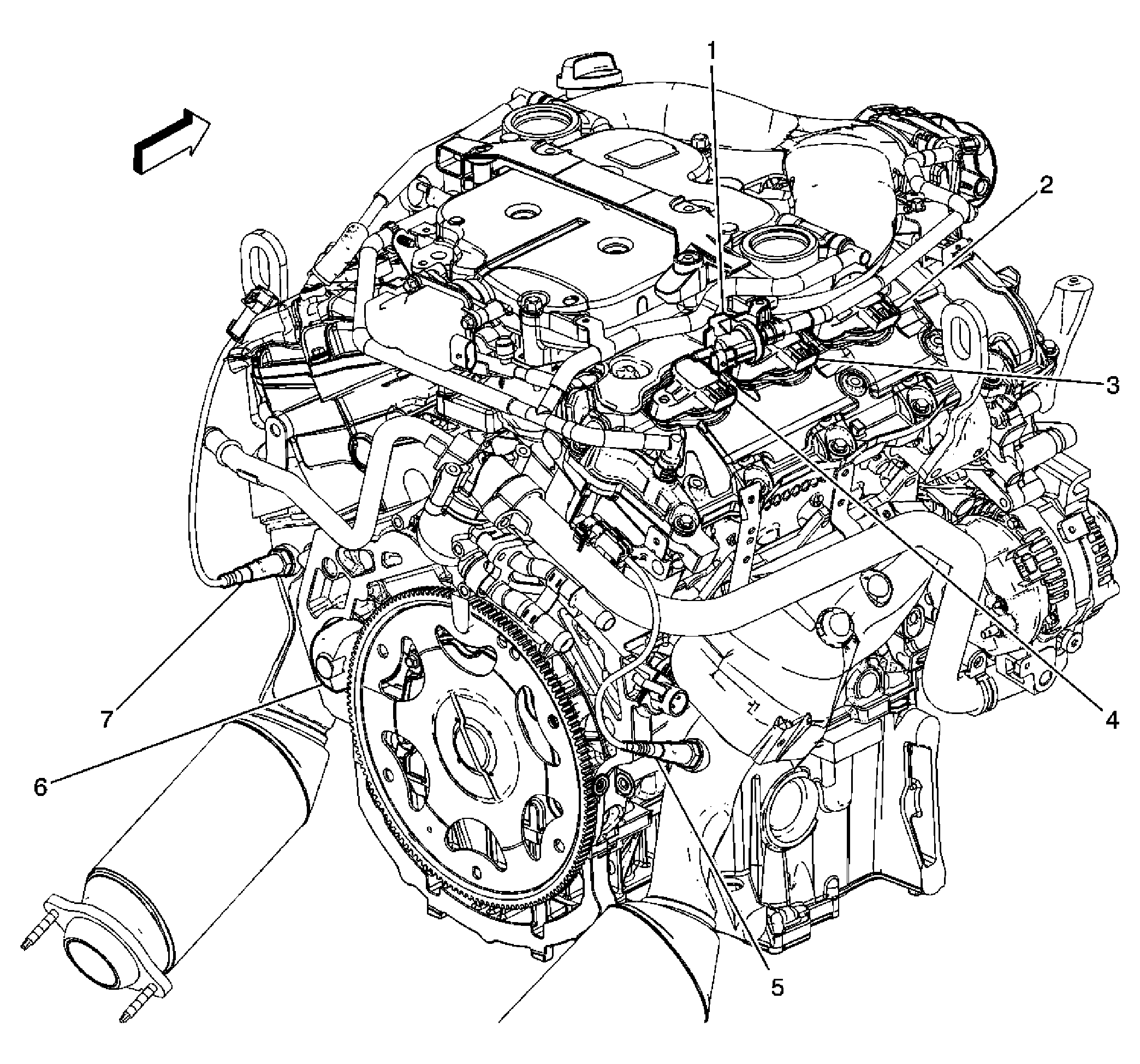

| Callout | Component Name |
|---|---|
| 1 | Evaporative Emissions (EVAP) Canister Purge Solenoid Valve (LLT/LP1/LY7) |
| 2 | Ignition Coil 2 (LLT/LP1/LY7) |
| 3 | Ignition Coil 4 (LLT/LP1/LY7) |
| 4 | Ignition Coil 6 (LLT/LP1/LY7) |
| 5 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LLT/LP1/LY7) |
| 6 | Starter |
| 7 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LLT/LP1/LY7) |

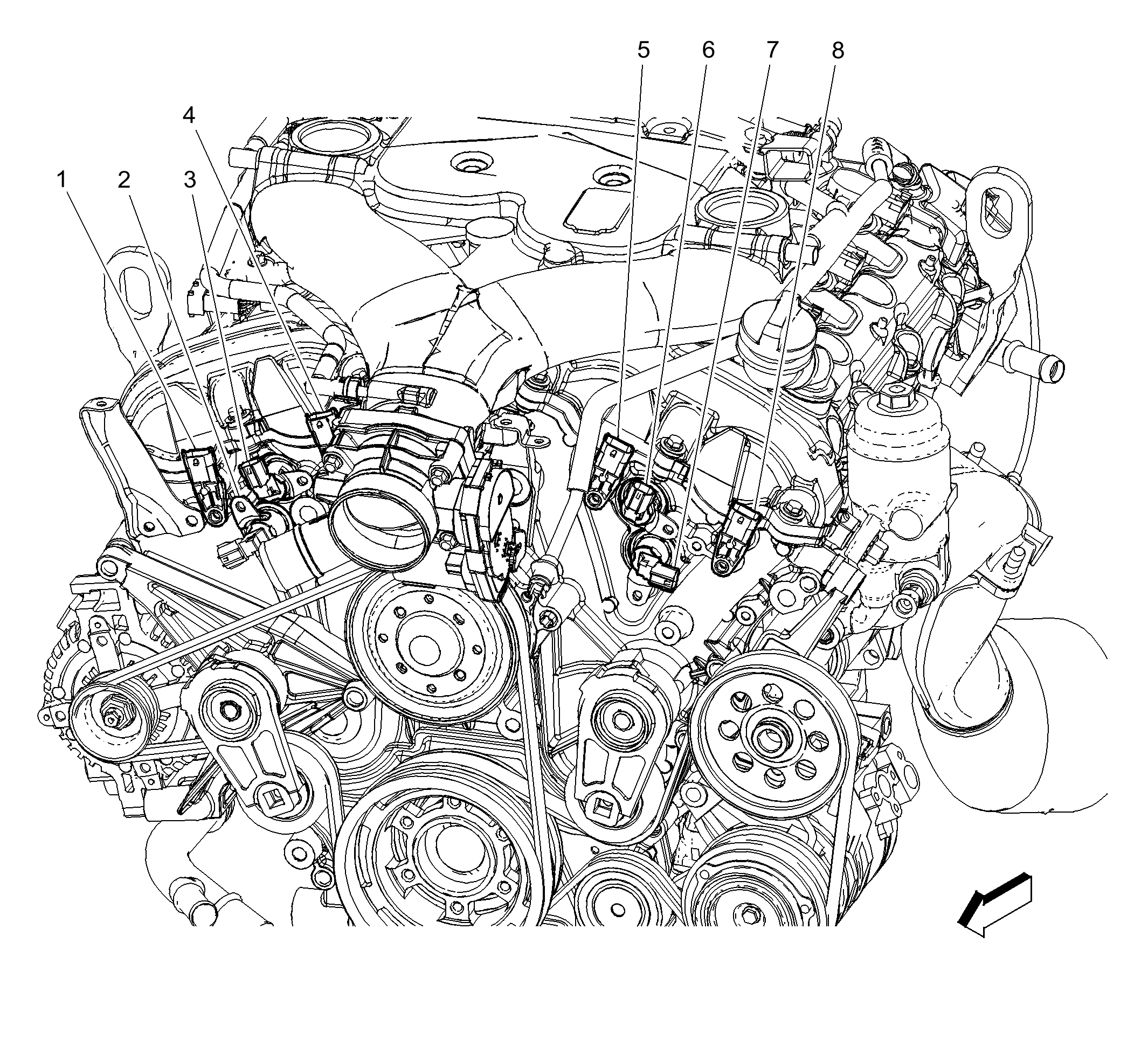

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position (CMP) Sensor - Exhaust Bank 1 |
| 2 | Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1 |
| 3 | Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1 |
| 4 | Camshaft Position (CMP) Sensor - Intake Bank |
| 5 | Camshaft Position (CMP) Sensor - Intake Bank 2 |
| 6 | Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2 |
| 7 | Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 |
| 8 | Camshaft Position (CMP) Sensor - Exhaust Bank 2 |

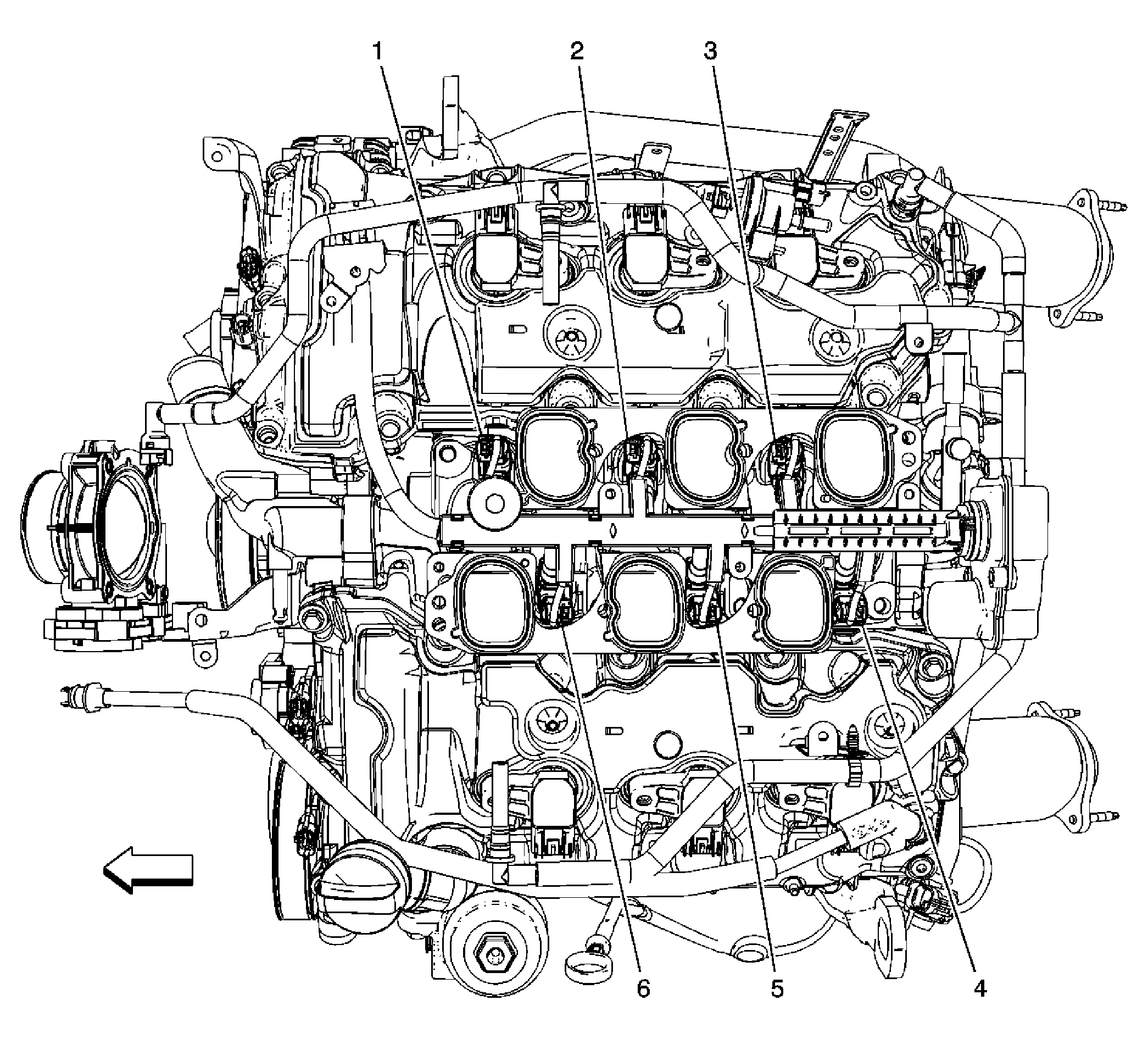

| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 2 (LLT/LP1/LY7) |
| 2 | Fuel Injector 4 (LLT/LP1/LY7) |
| 3 | Fuel Injector 6 (LLT/LP1/LY7) |
| 4 | Fuel Injector 5 (LLT/LP1/LY7) |
| 5 | Fuel Injector 3 (LLT/LP1/LY7) |
| 6 | Fuel Injector 1 (LLT/LP1/LY7) |
