Inflatable Restraint Instrument Panel Module Indicator Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

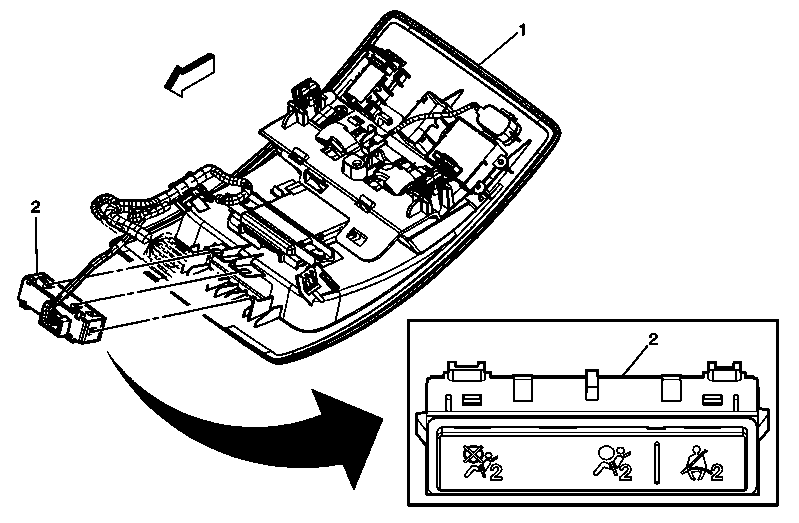

Fig 1: Inflatable Restraint Instrument Panel Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Console Assembly Refer to Roof Console Replacement .
2	Inflatable Restraint Instrument Panel Module indicator Assembly Tip: Disconnect electrical connector. Tabs on overhead console must be fully engaged with snap tab ramps on display to be fully secured.
