Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- If reusing the existing inflatable restraint steering wheel module coil it MUST be centered. Refer to Inflatable Restraint Steering Wheel Module Coil Centering .

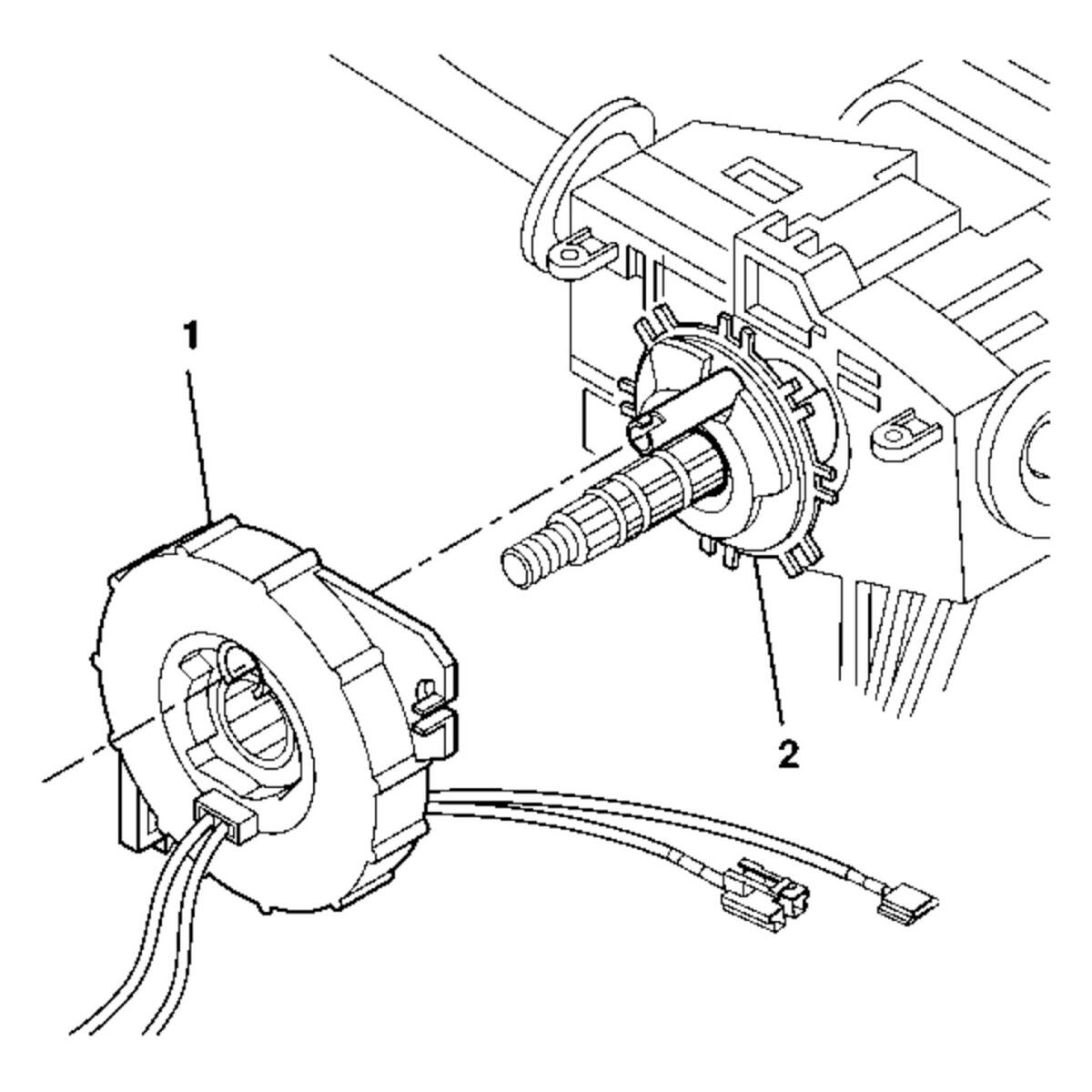

- Align the inflatable restraint steering wheel module coil (1) with the horn tower on the turn signal switch cancel cam (2).

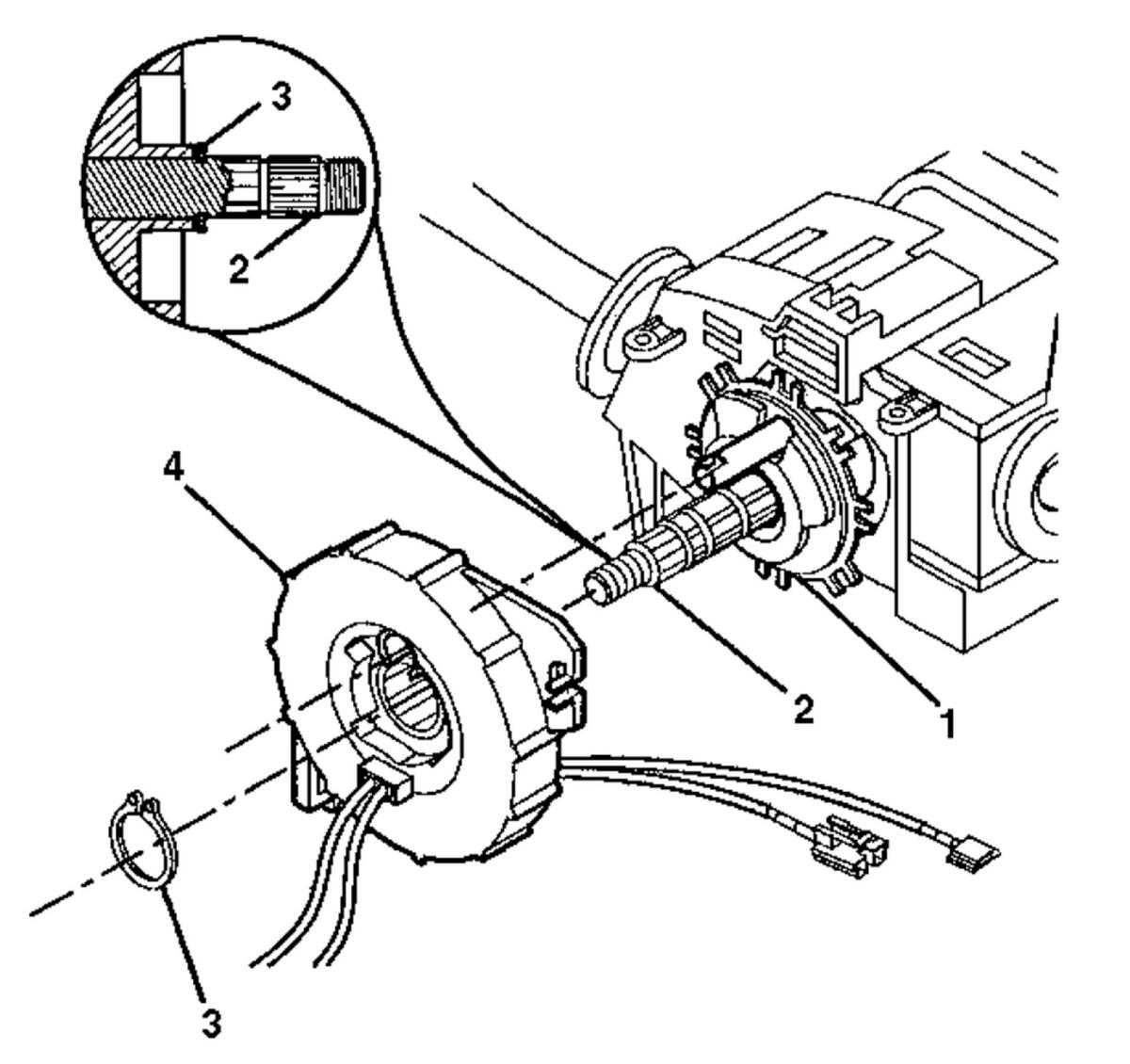

- Slide the inflatable restraint steering wheel module coil (4) onto the steering shaft (2).
- Firmly seat the new inflatable restraint steering wheel module coil retaining ring (3) into the appropriate groove on the steering shaft (2).
- Remove and discard the centering tab from the new inflatable restraint steering wheel module coil (4).
- Connect any electrical connectors as needed.
- Install the steering column shroud. Refer to Steering Column Shroud Replacement .
- Install the steering wheel. Refer to Steering Wheel Replacement .
- Remove anti-rotation pin J 42640 .
NOTE:
The new SIR coil assembly will be centered. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction.
IMPORTANT:
Do not remove the centering tab from the new inflatable restraint steering wheel module coil until the installation is complete. If the centering tab is missing then re-center the assembly.
