Radio Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

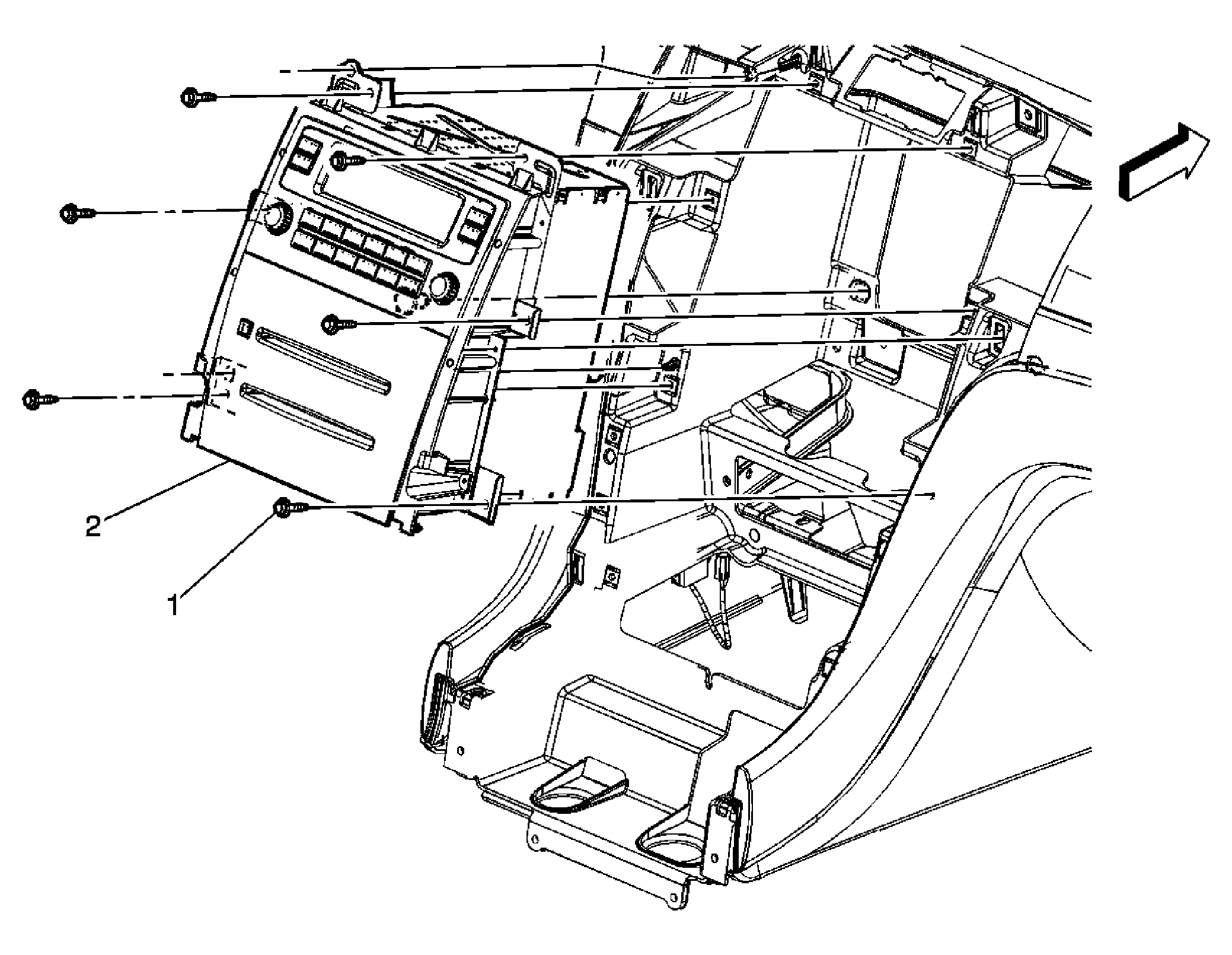

Fig 1: View Of Radio Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
IMPORTANT: Use a scan tool to retrieve the radio part number before removing the radio from the vehicle. Preliminary Procedure: Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Cadillac) .
1	Radio Screw (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Radio Assembly Tip: Disconnect the 4 electrical connectors. Disconnect the antenna cable. Reprogram the radio after replacement. Refer to Control Module References .
