Positive Crankcase Ventilation

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

For crankcase ventilation system inspection/diagnosis, see Fig 1 .

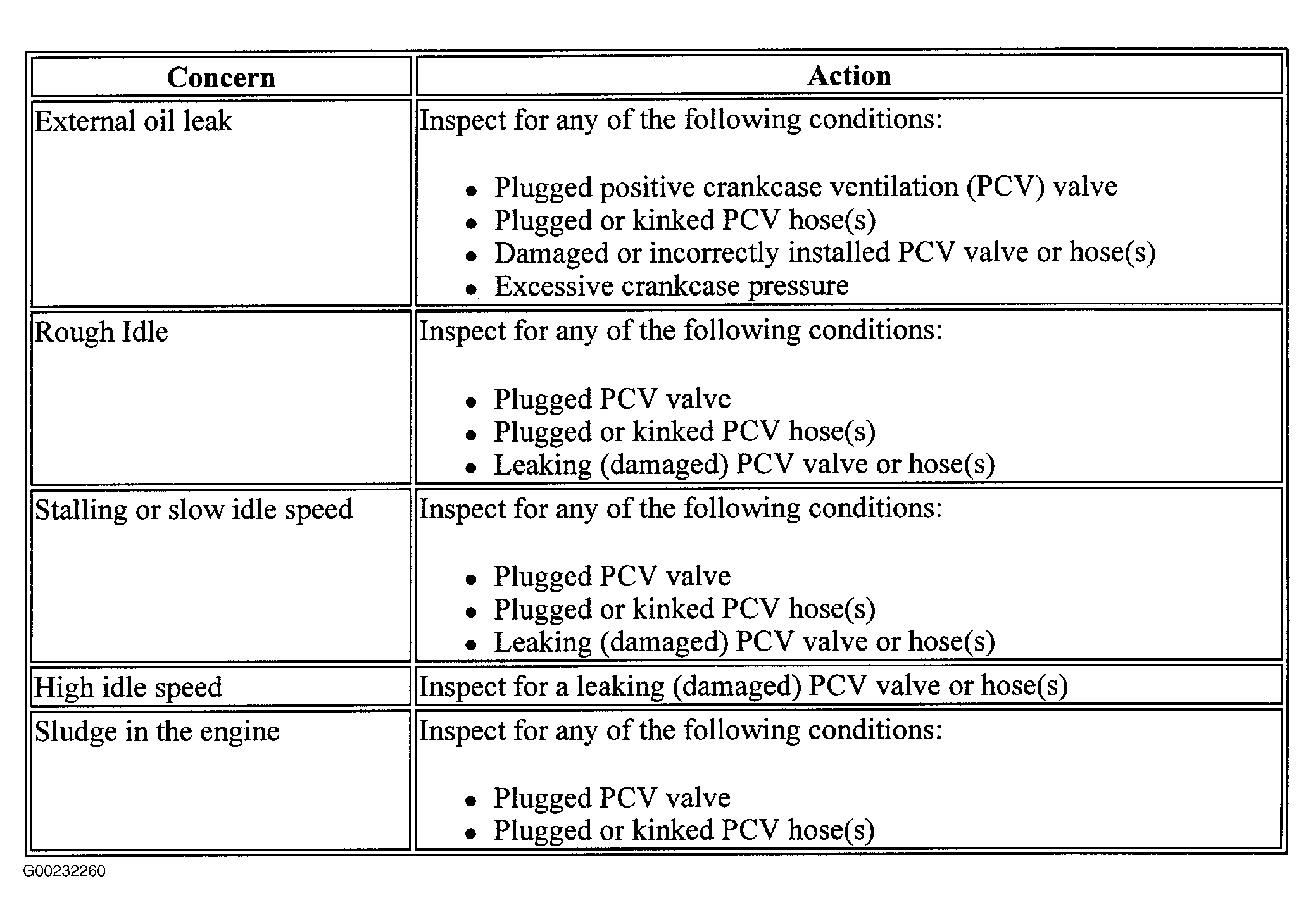

Fig 1: Crankcase Ventilation System Inspection/Diagnosis
G00232260Courtesy of GENERAL MOTORS CORP.
