Engine Controls Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra and 2009 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

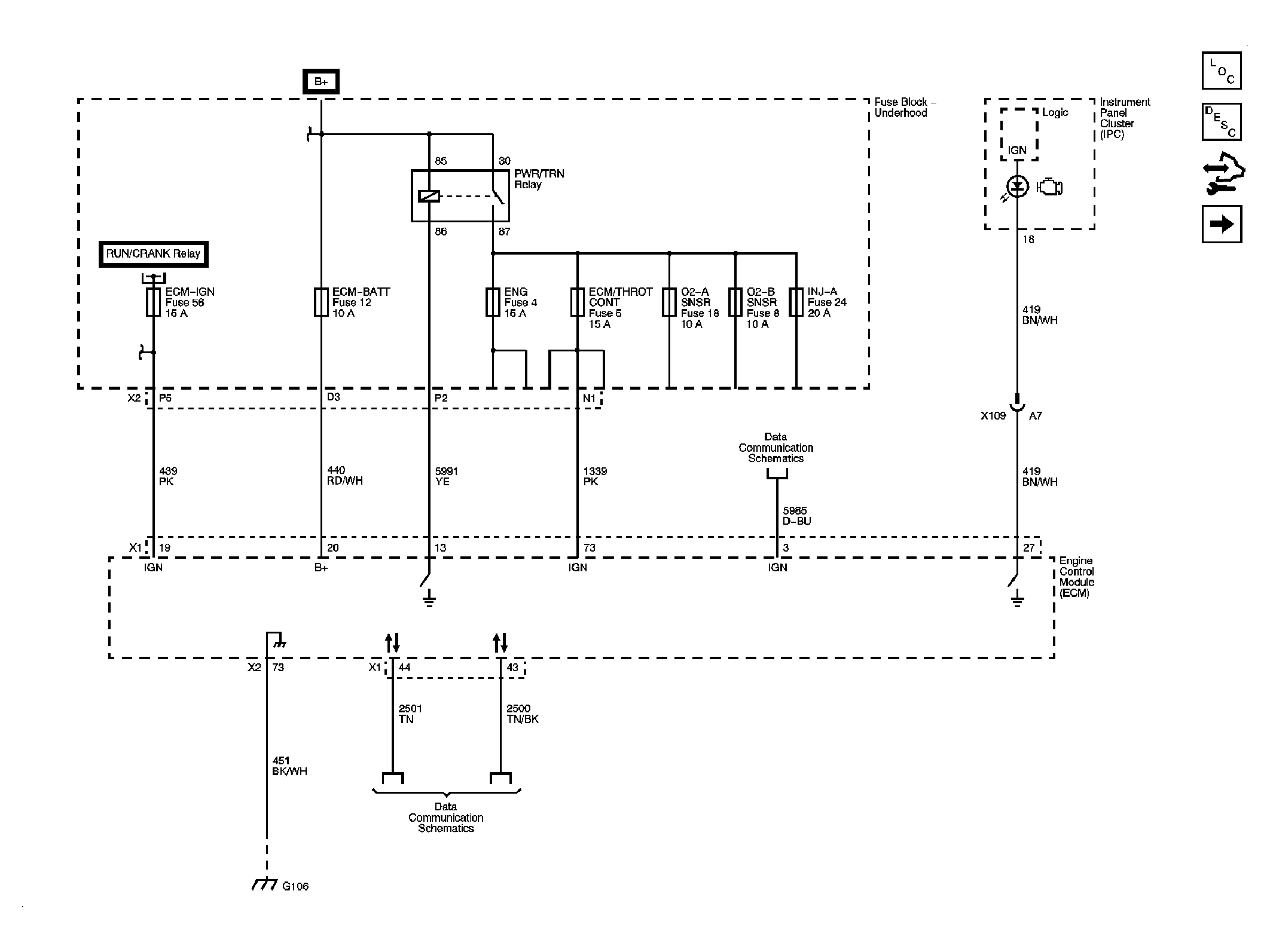

Fig 1: Module Power, Ground & Serial Data Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

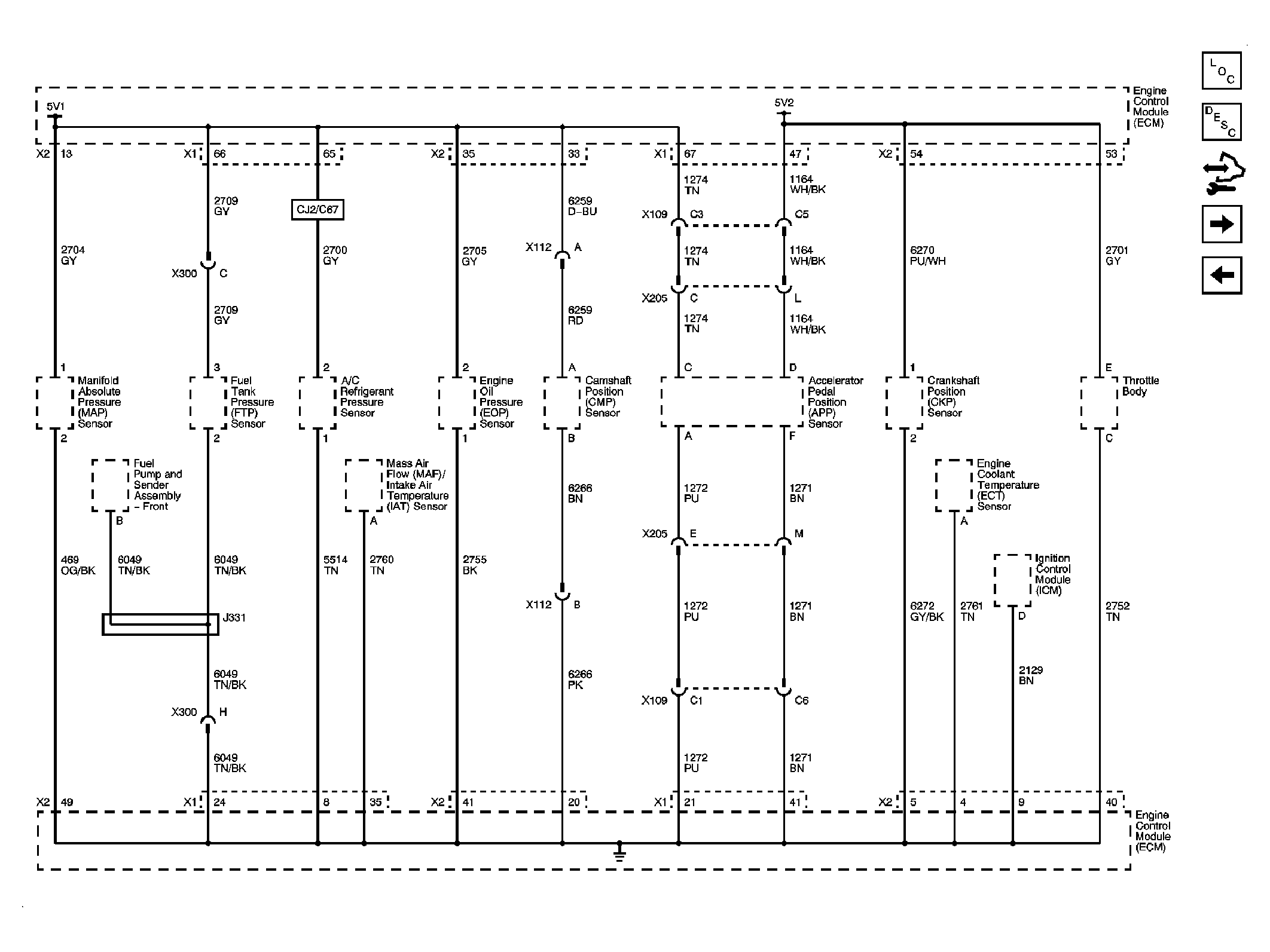

Fig 2: 5-Volt & Low Reference Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

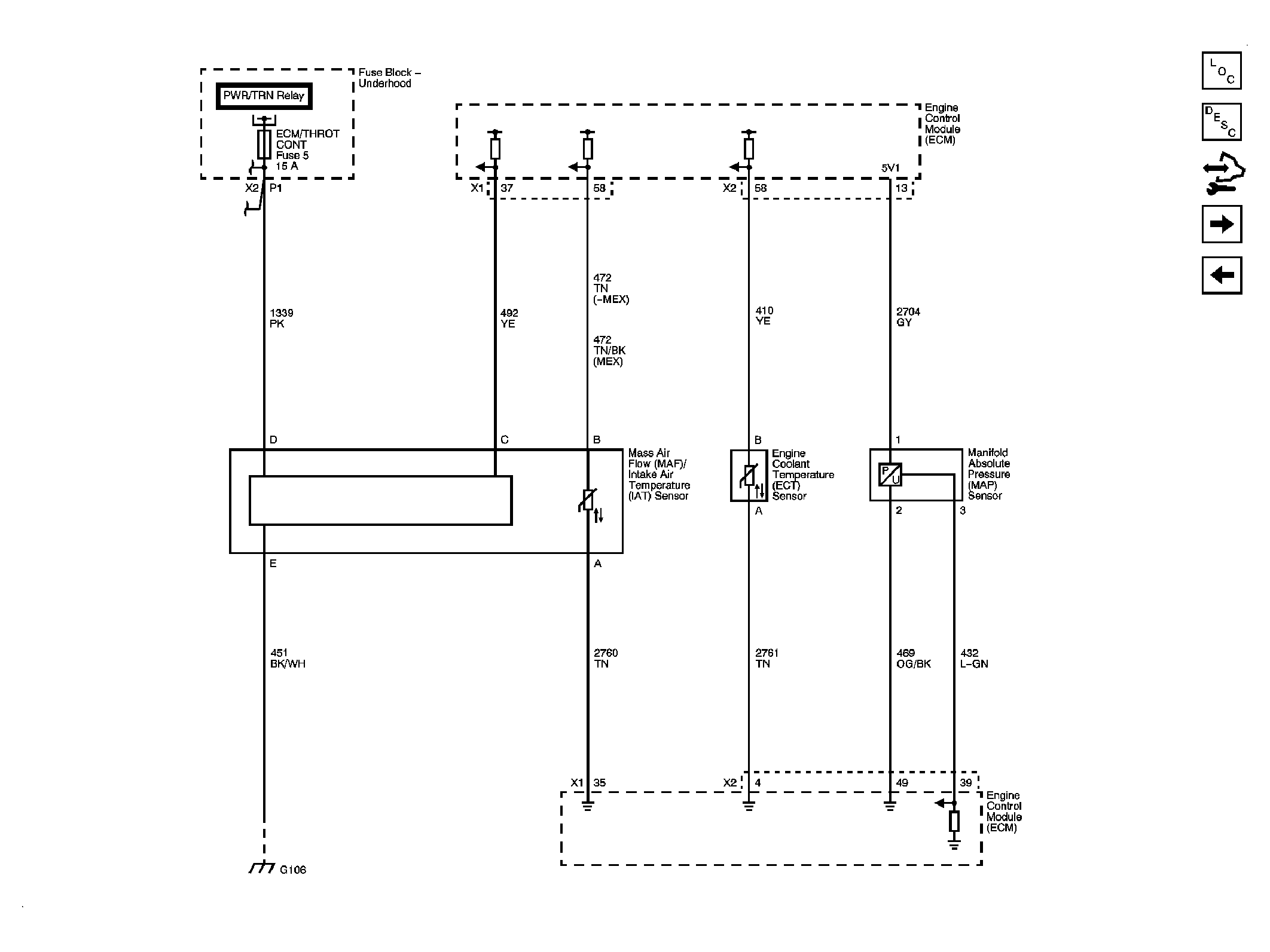

Fig 3: Engine Data Sensors Circuit Schematic - Pressure & Temperature

Courtesy of GENERAL MOTORS CORP.

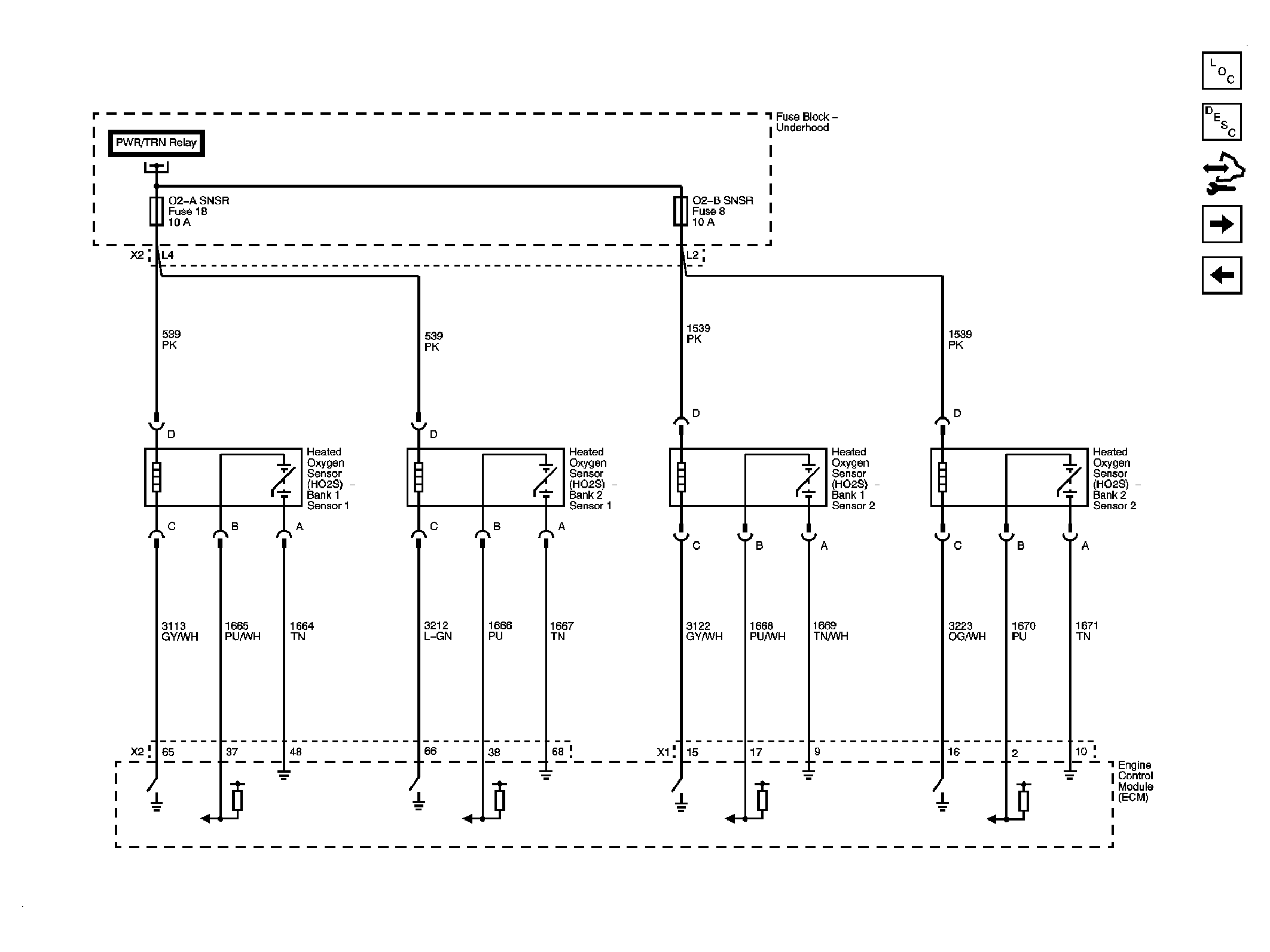

Fig 4: Engine Data Sensors Circuit Schematic - Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

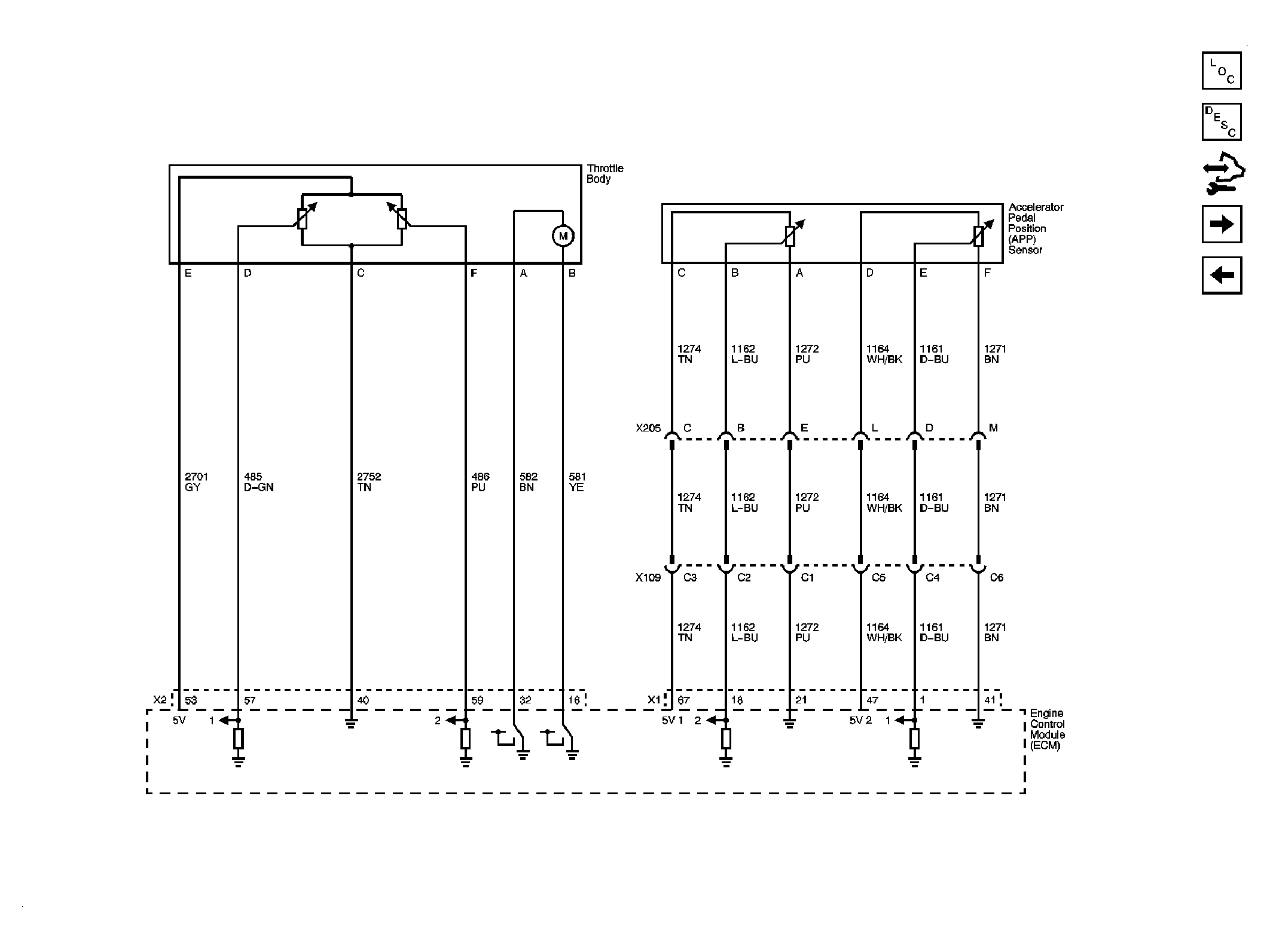

Fig 5: Engine Data Sensors Circuit Schematic - Throttle Controls

Courtesy of GENERAL MOTORS CORP.

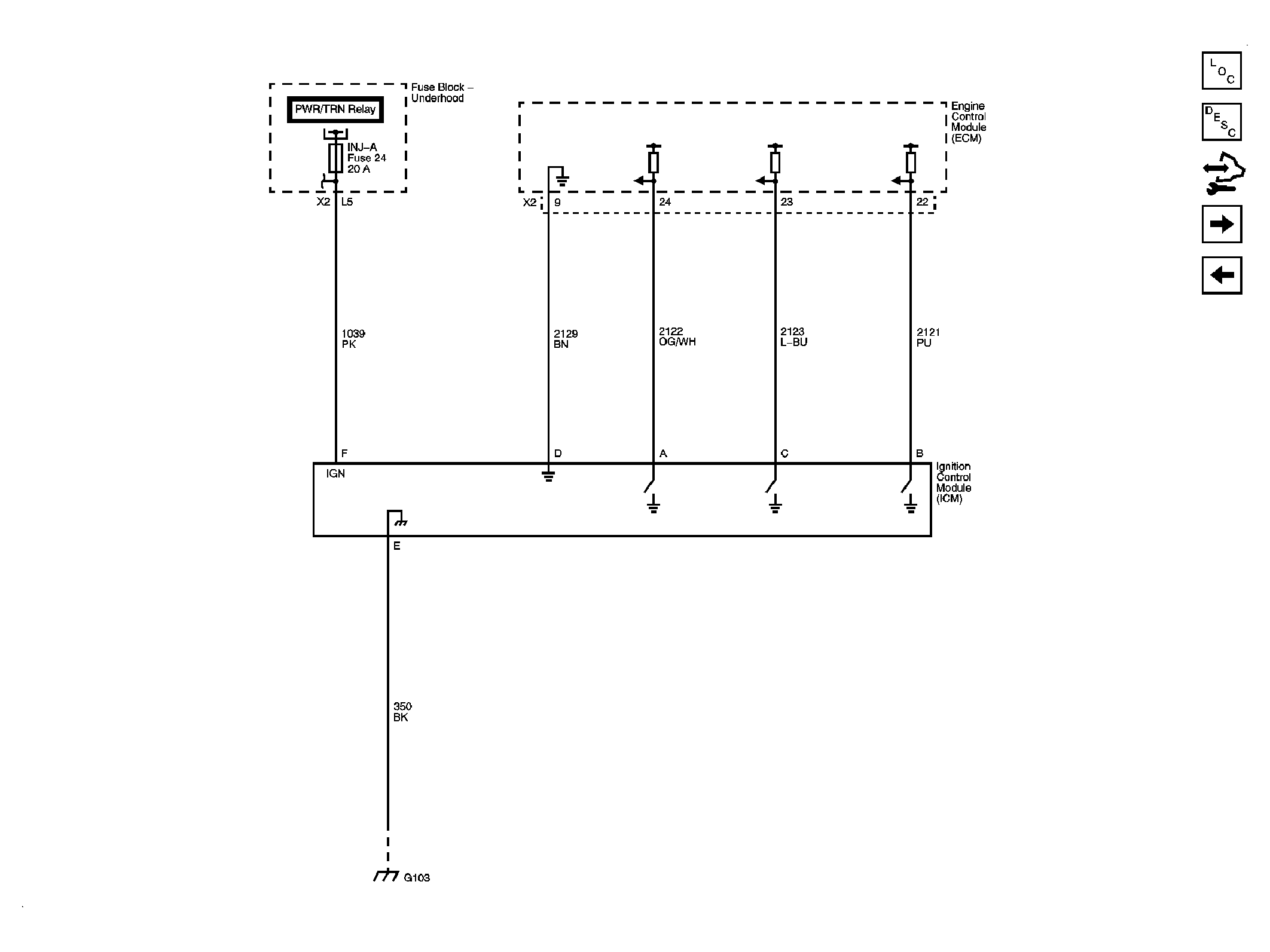

Fig 6: Ignition Controls Circuit Schematic - Ignition Control Module

Courtesy of GENERAL MOTORS CORP.

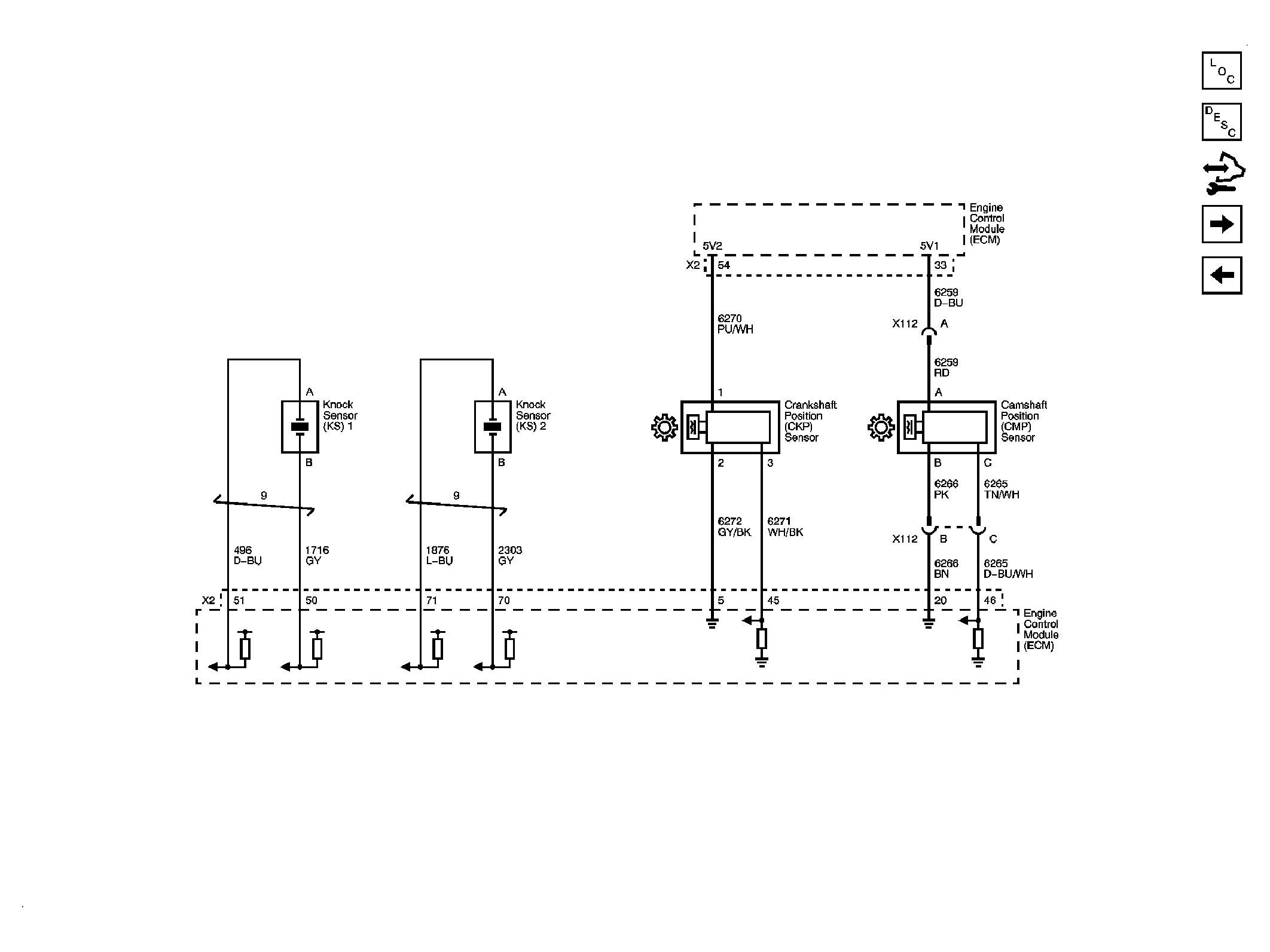

Fig 7: Ignition Controls Circuit Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

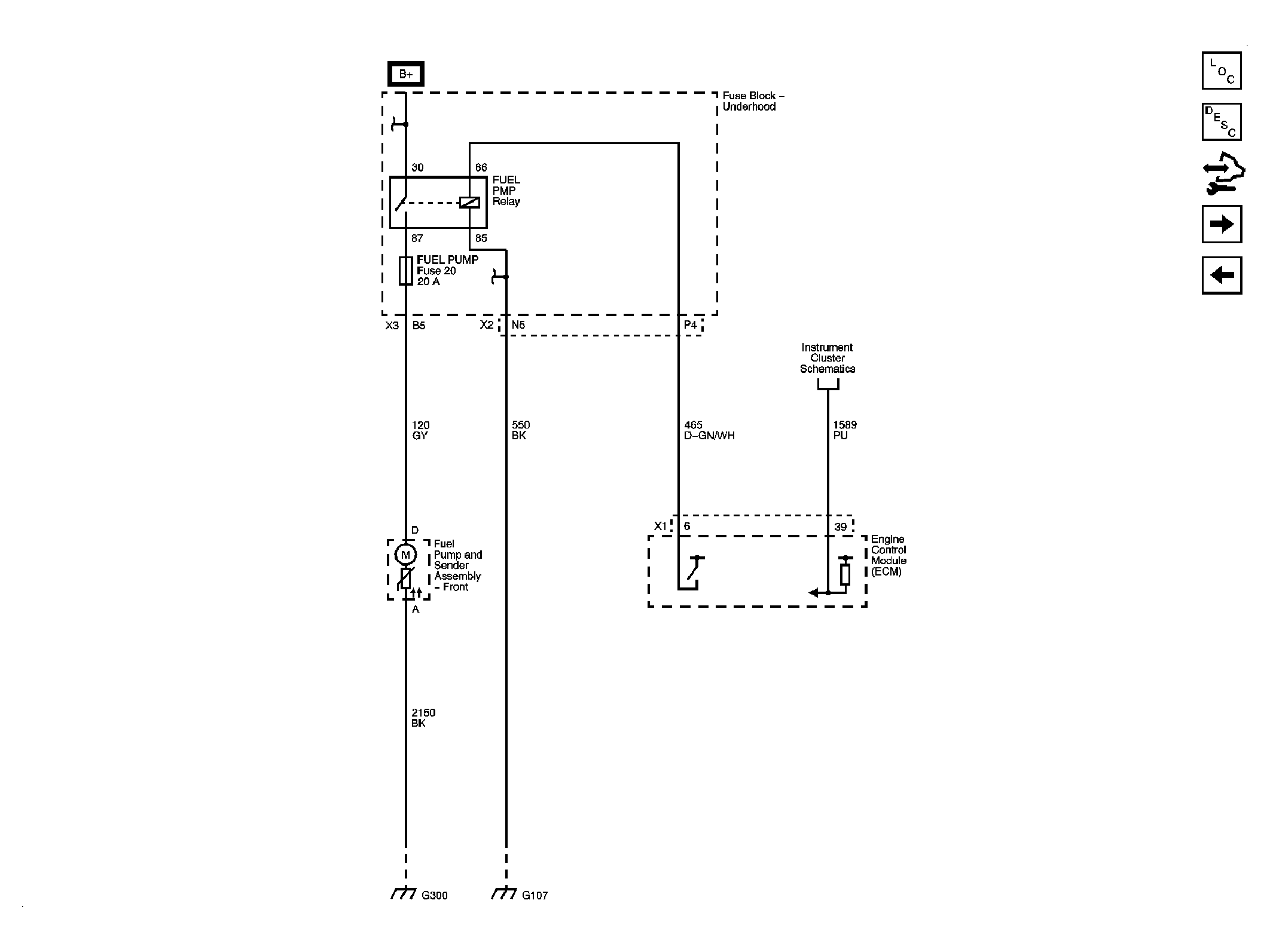

Fig 8: Fuel Pump Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

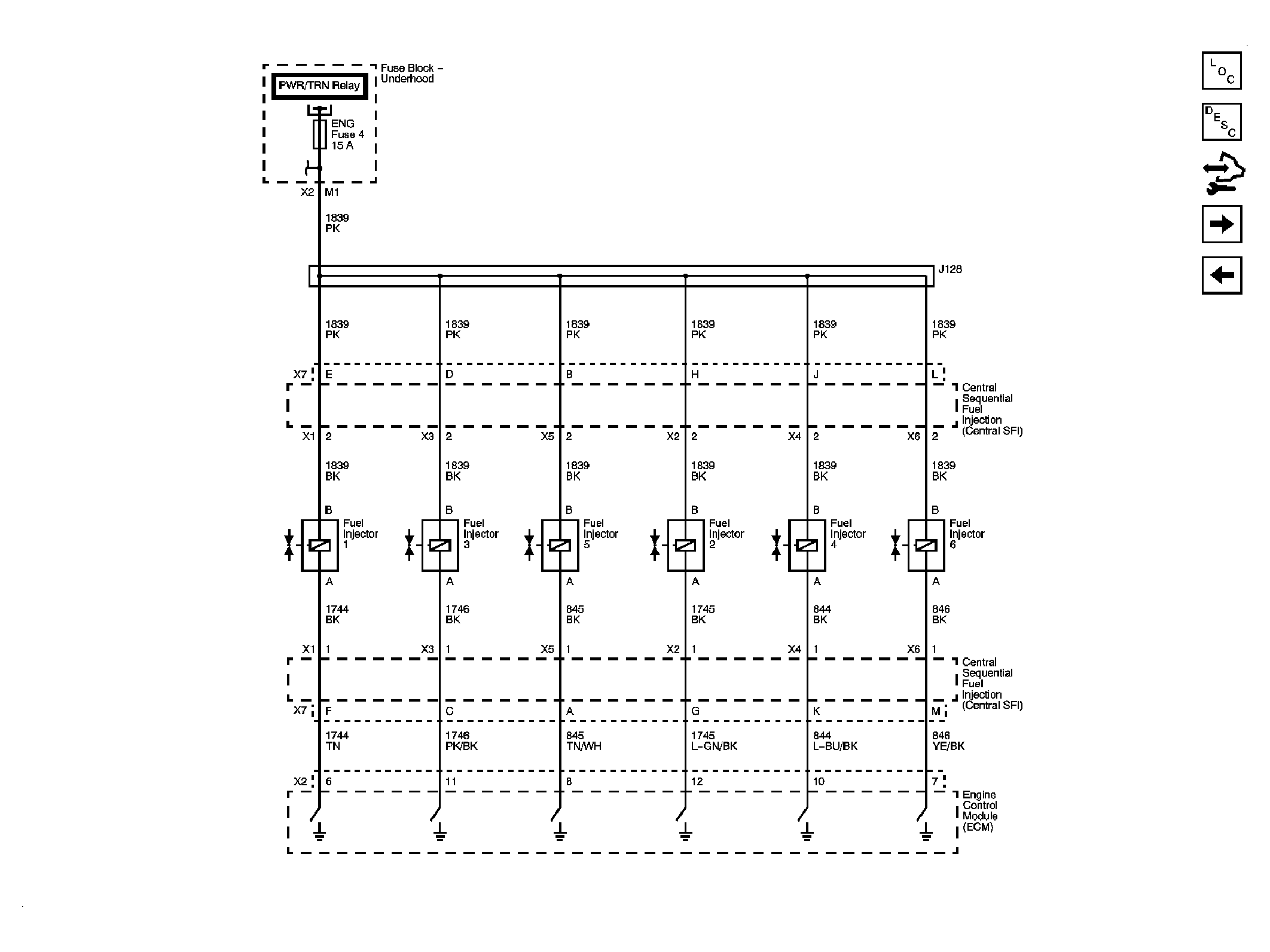

Fig 9: Fuel Controls Circuit Schematic - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

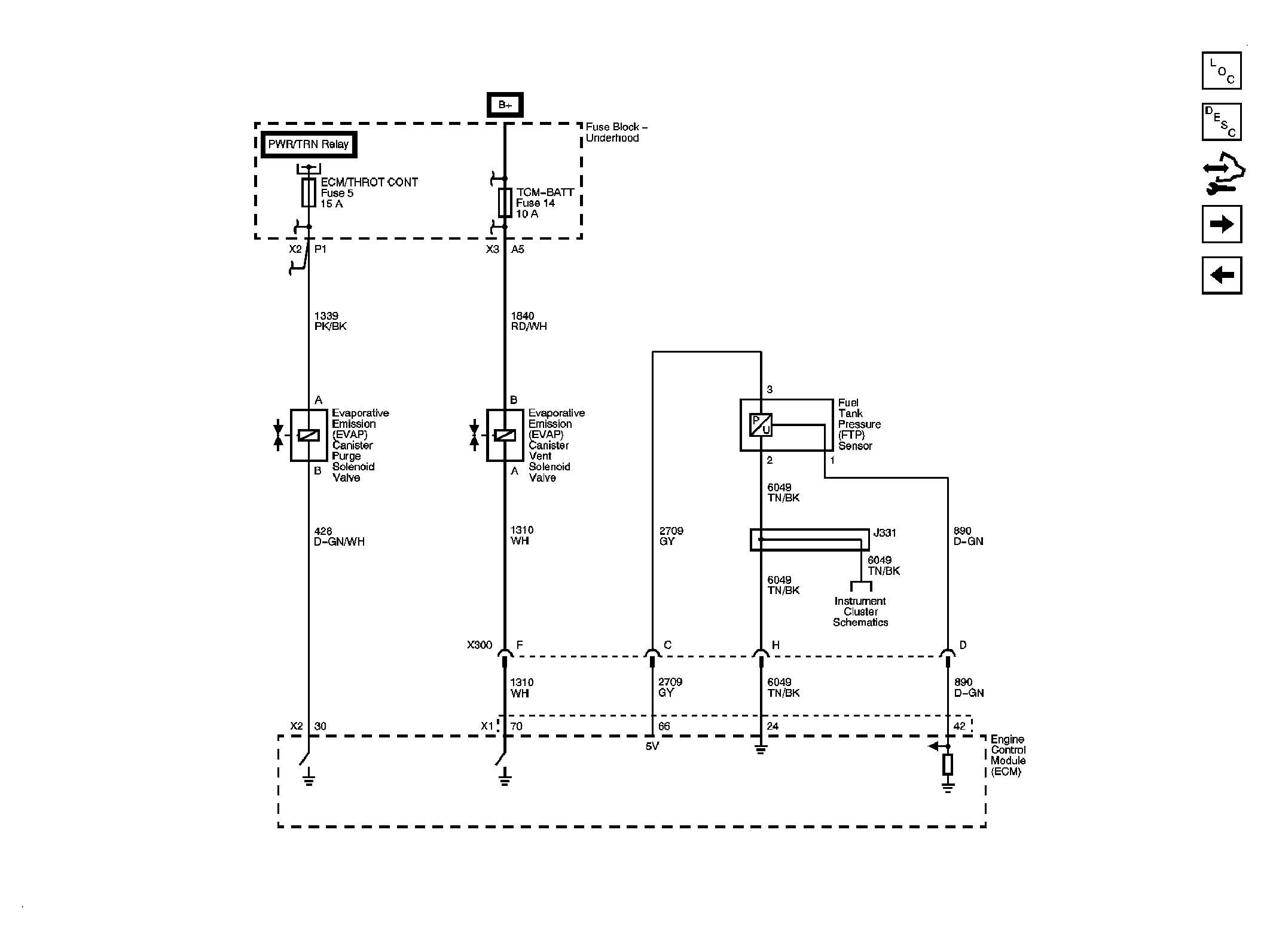

Fig 10: Fuel Controls Circuit Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

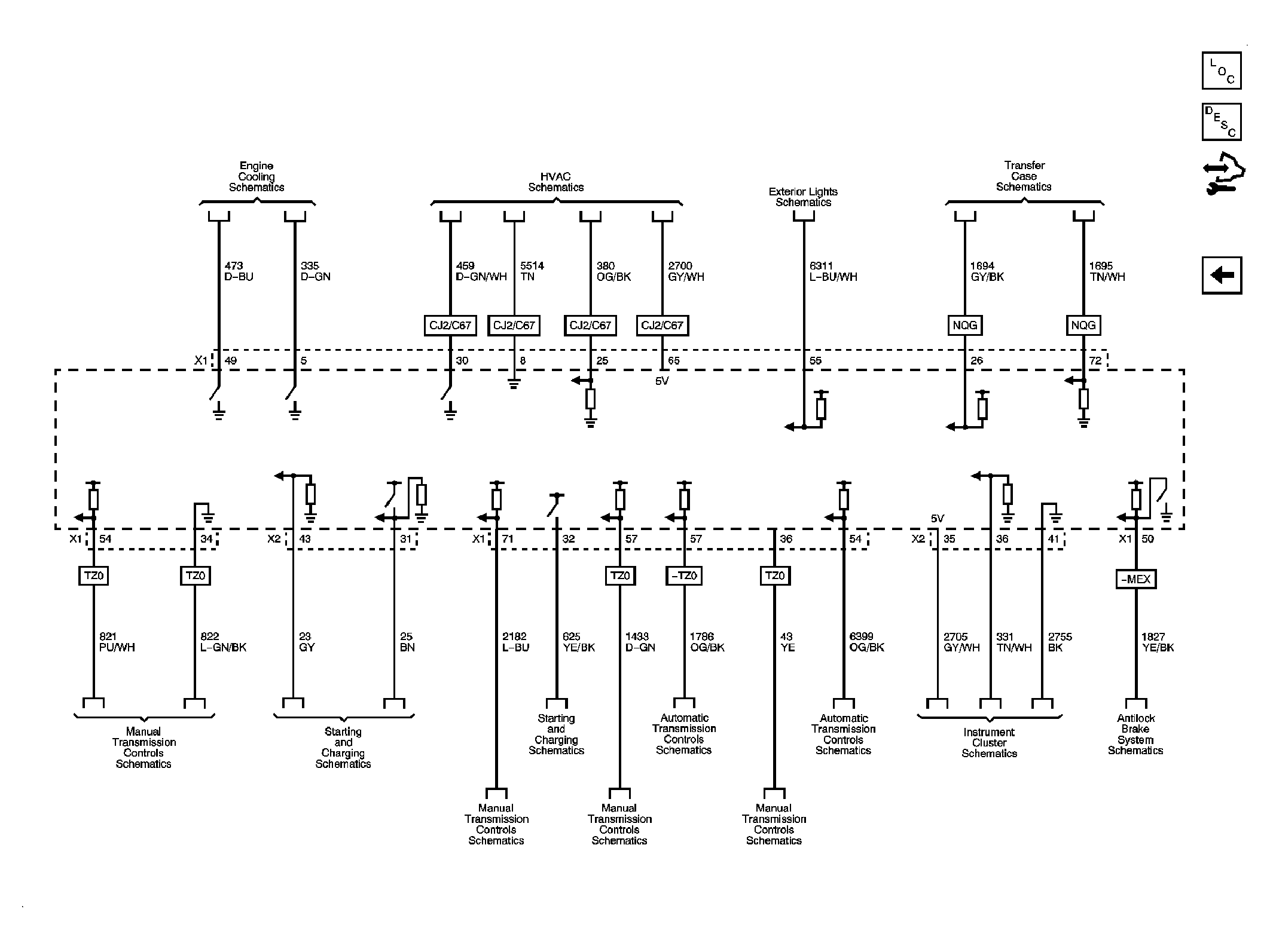

Fig 11: Controlled/Monitored Subsystem References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
