Stop Lamp Switch Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

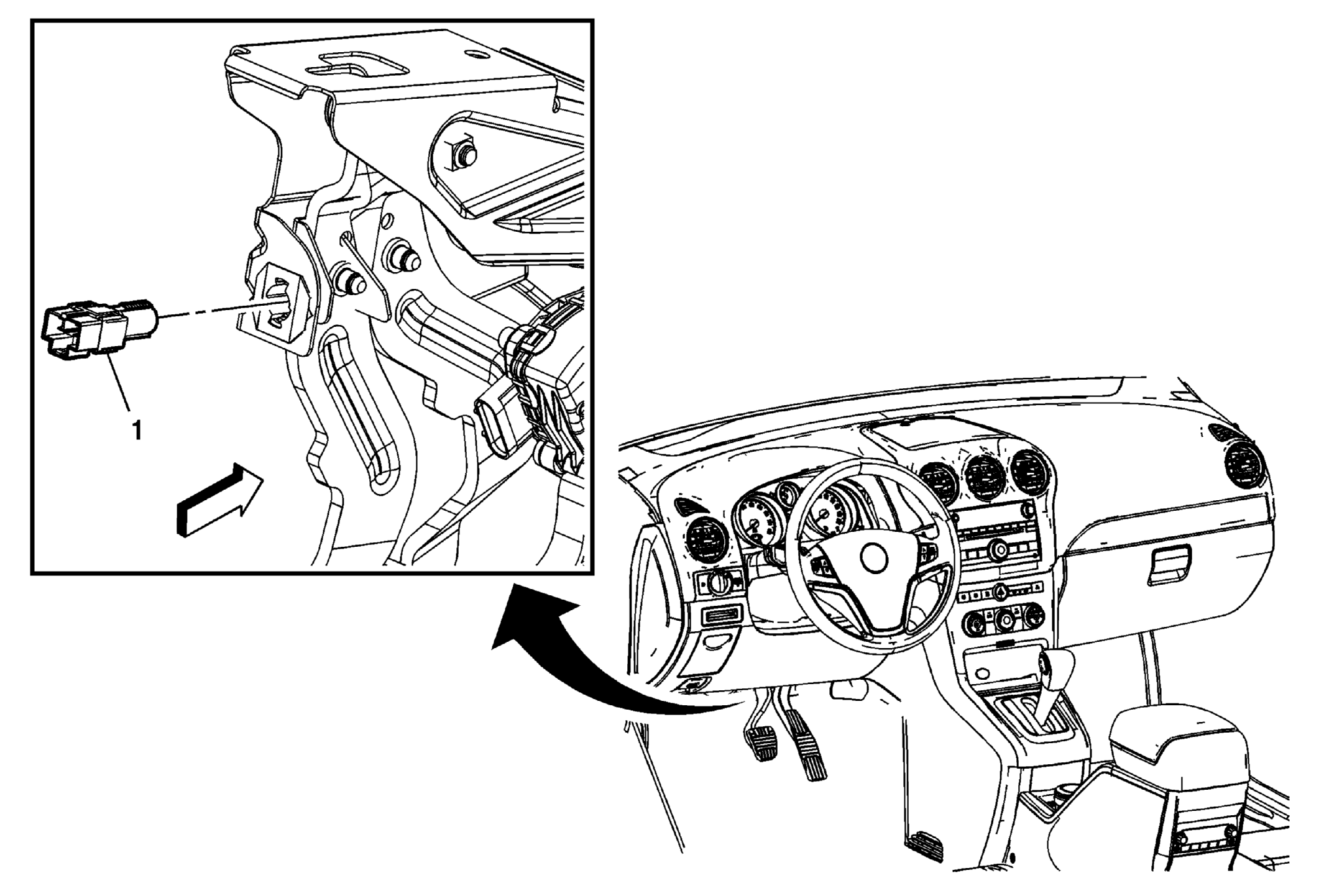

Fig 1: Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch Assembly Procedure Disconnect the electrical connection. Rotate the stop lamp switch counterclockwise to remove it from the pedal assembly. Refer to Stop Lamp Switch Adjustment
