Electronic Navigation Antenna Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

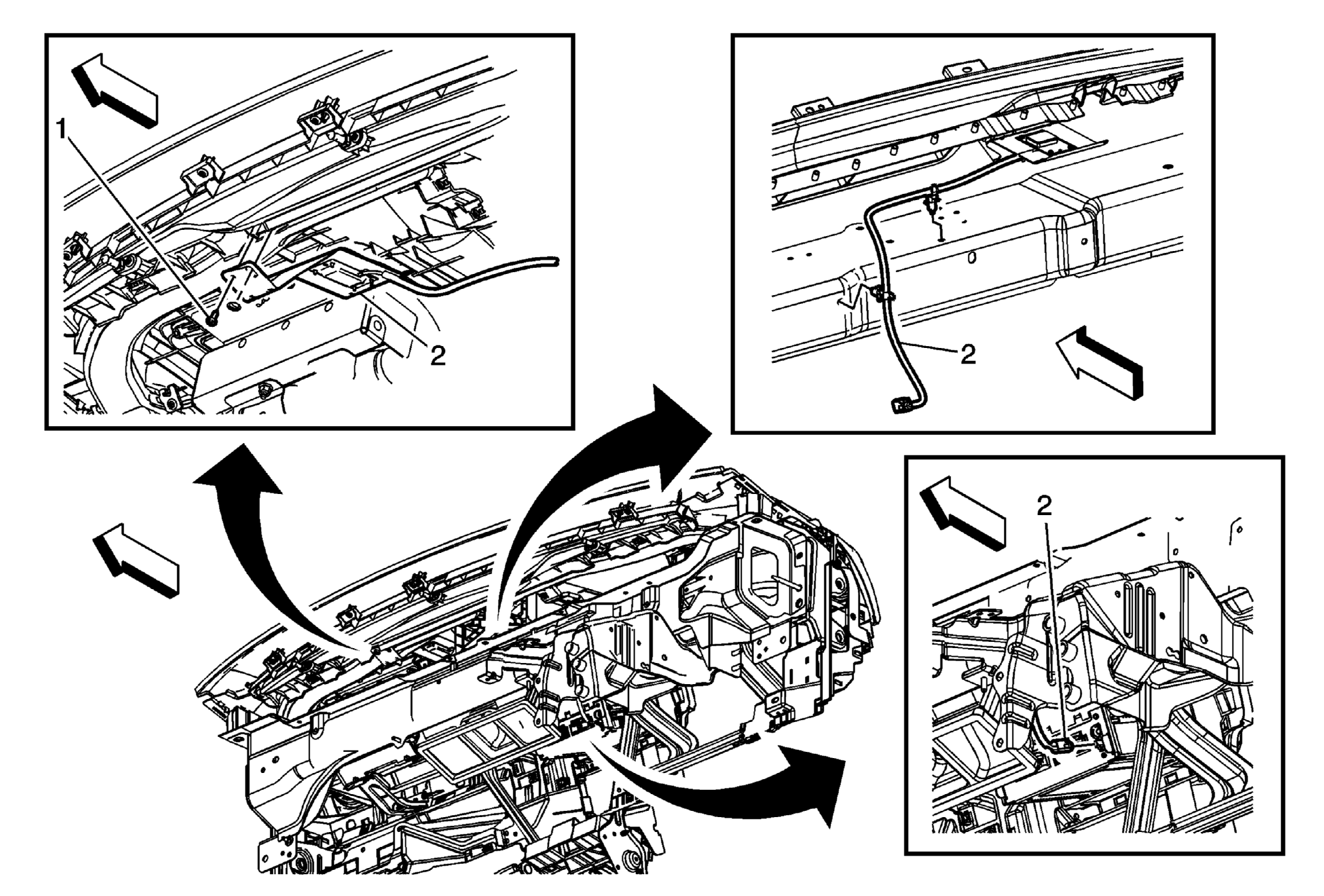

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel trim panel. Refer to Instrument Panel Trim Panel Replacement . |
|
| 1 | Navigation Antenna Mount Plate Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Navigation Antenna Assembly |
