Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Position the power steering cooler pipe to the vehicle.

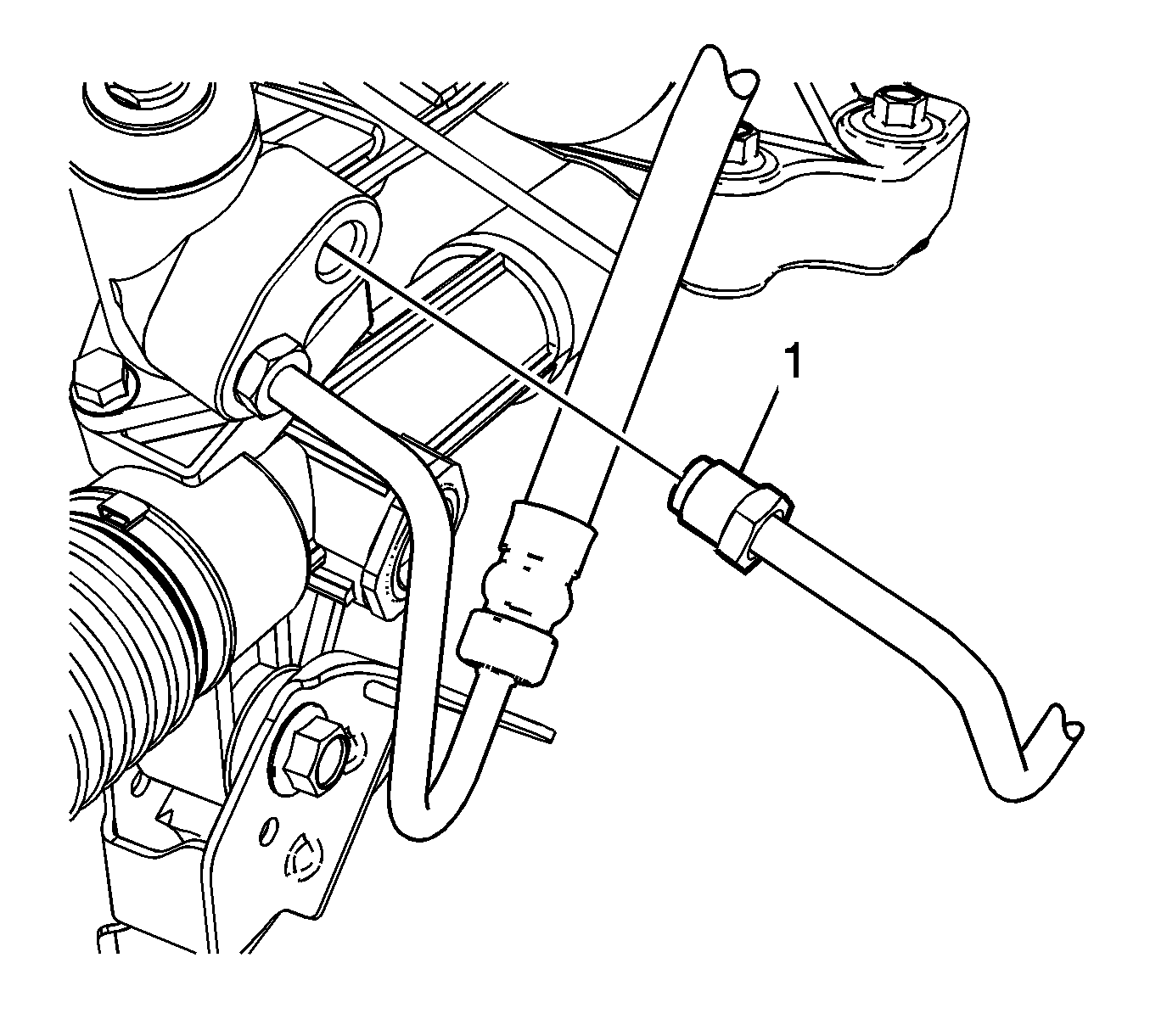

Fig 1: Identifying Power Steering Cooler Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Connect the power steering cooler pipe fitting (1) to the steering gear and tighten the fitting to 25 N.m (18 lb ft).

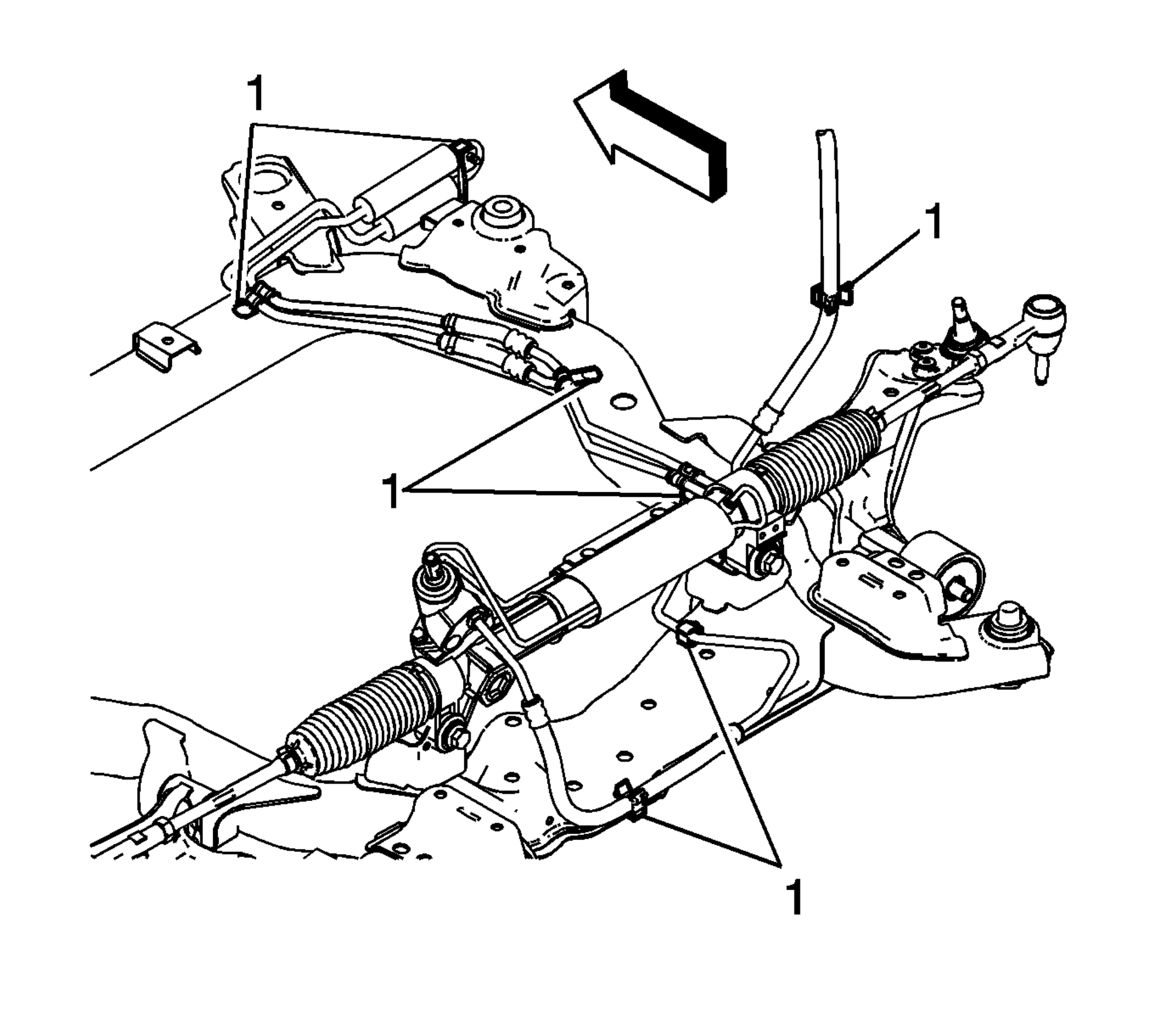

Fig 2: Power Steering Cooler Pipe Bracket Fasteners

Courtesy of GENERAL MOTORS CORP.

Clip in place all the power steering cooler pipe bracket fasteners (1).

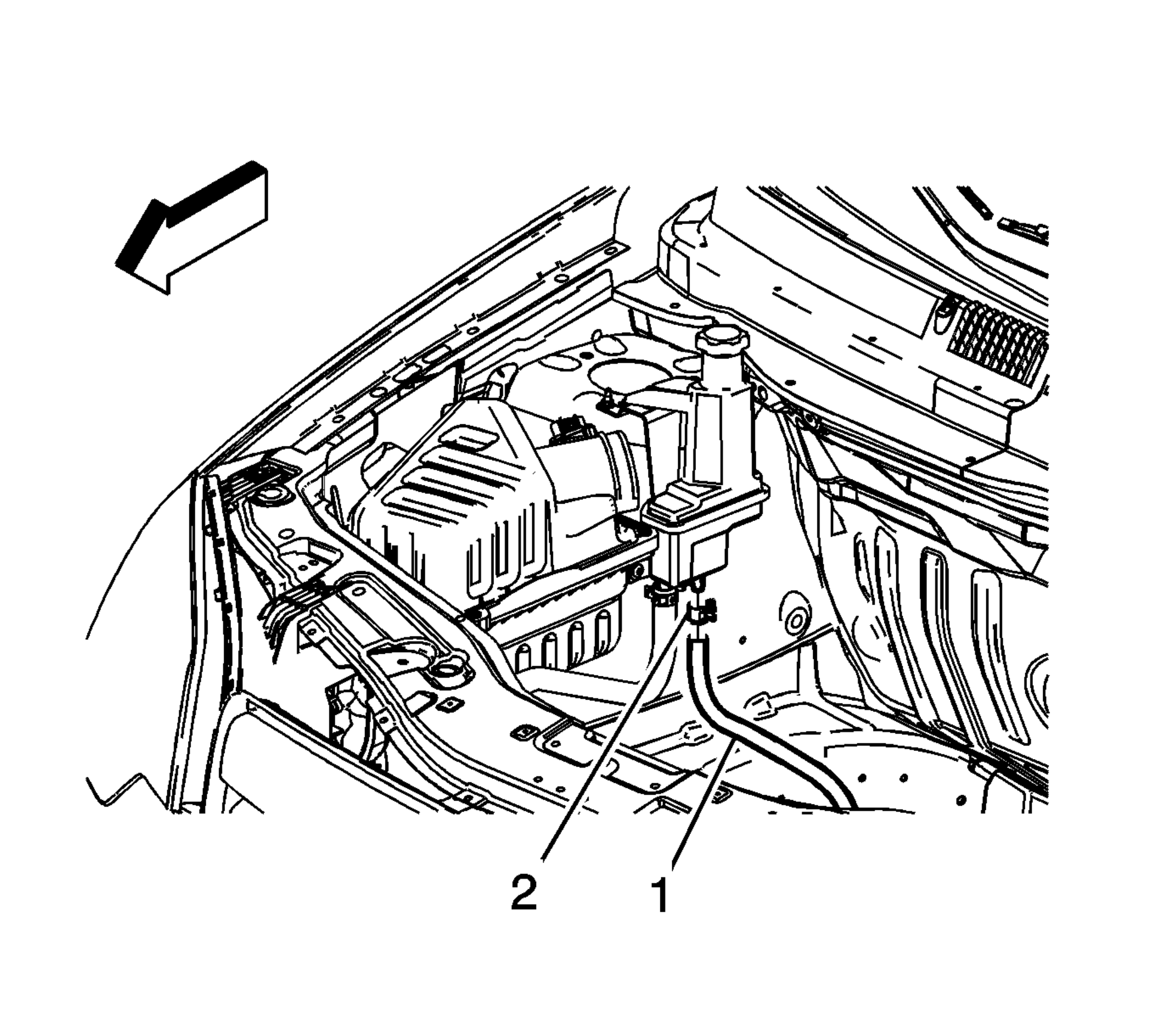

Fig 3: Power Steering Cooler Pipe & Clamp

Courtesy of GENERAL MOTORS CORP.

Compress the power steering cooler pipe clamp (2) and connect the power steering cooler pipe (1) to the remote power steering fluid reservoir.
Clean any excess fluid from the vehicle and remove the drain pans.
Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
