Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

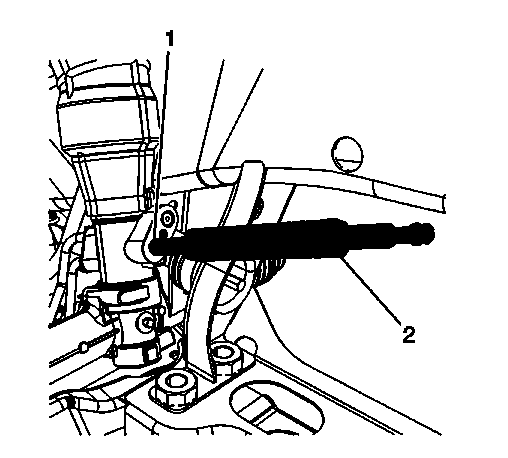

    Fig 1: Installing Replacement Steering Gear Oil Seal
    GM1492057Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW steering gear oil seal (1) using the seal installation end of remover/installer J 44586  (2) and make sure it is correctly seated in the steering gear. See Special Tools .
  2. Position the power steering gear inlet hose to the vehicle.
    3. Fig 2: Identifying Power Steering Gear Inlet Hose Fitting & Steering Gear
    GM1819198Courtesy of GENERAL MOTORS CORP.
    CAUTION: The inlet and outlet hoses must not be twisted during installation. Do not bend or distort the inlet or outlet hoses to make installation easier. Failure to follow these procedures could result in component damage.
    CAUTION: Refer to Fastener Caution .
    NOTE: Hand tighten all fasteners first before finalizing any torques.
  3. Connect the power steering gear inlet hose fitting (1) to the steering gear and tighten the fitting to 25 N.m (18 lb ft).

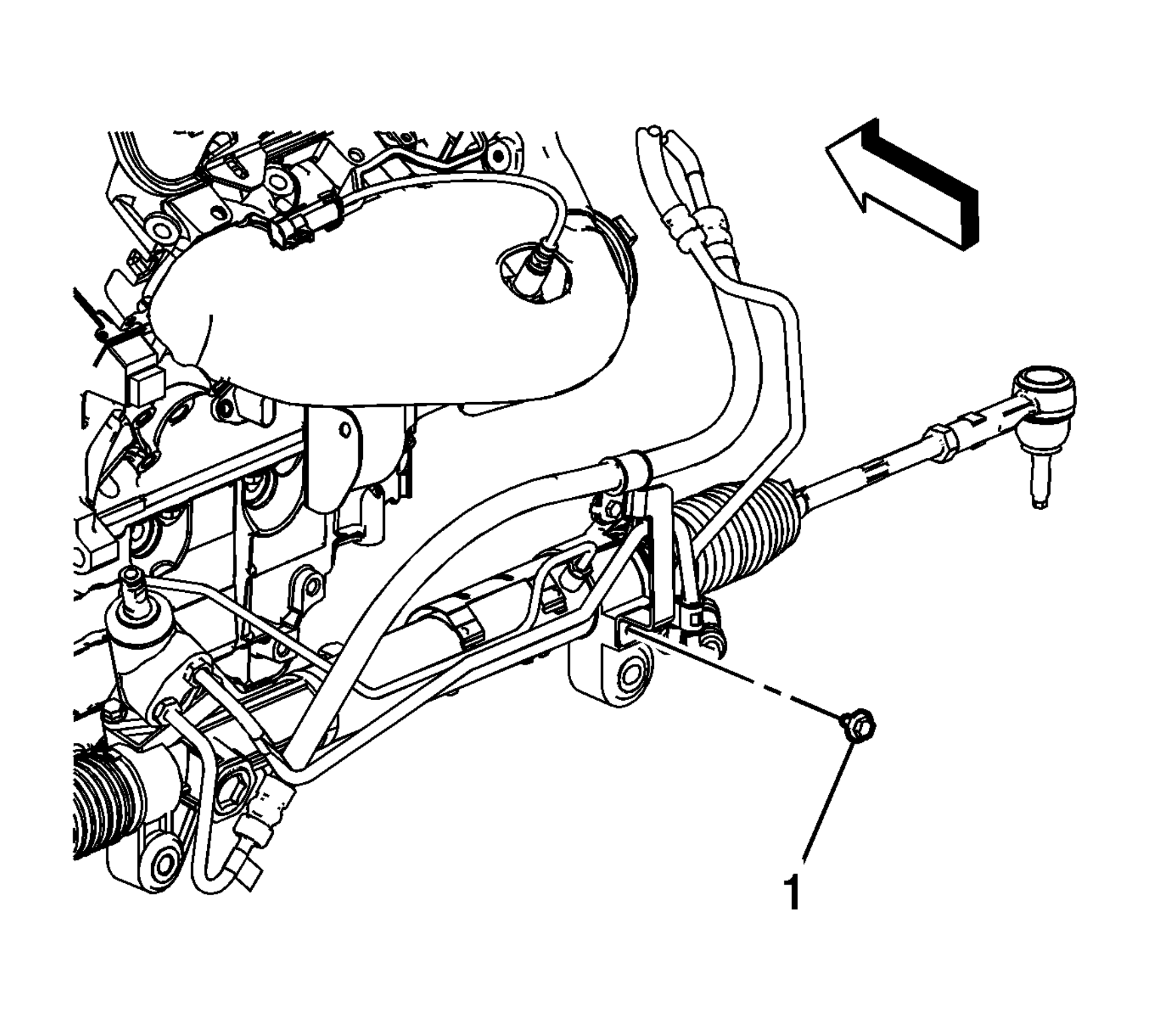

    4. Fig 3: Power Steering Gear Inlet Hose Bracket Bolt
    GM1869208Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering gear inlet hose bracket bolt (1) and tighten to 9 N.m (80 lb in).

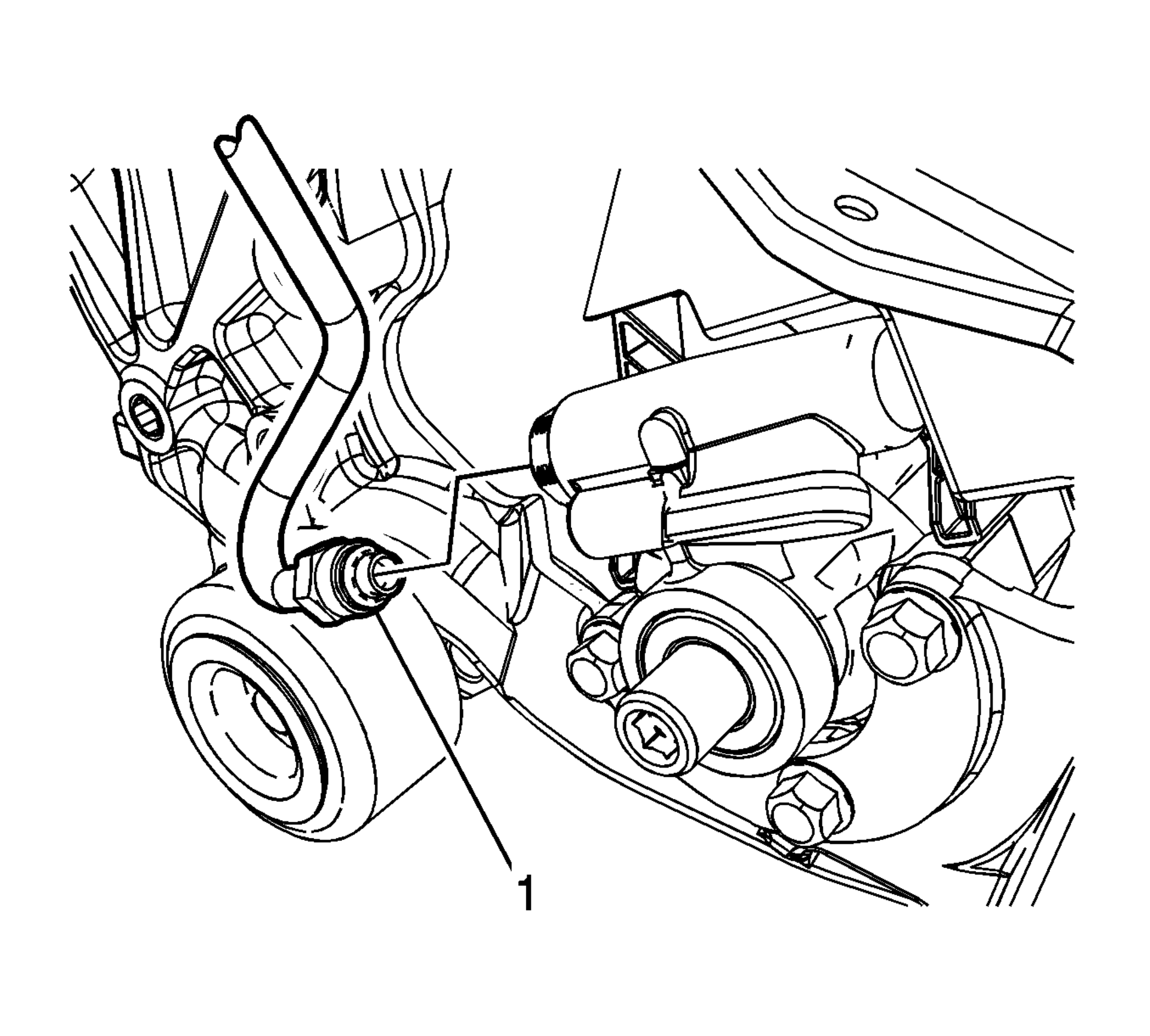

    5. Fig 4: Power Steering Gear Inlet Hose Fitting
    GM1869222Courtesy of GENERAL MOTORS CORP.
  5. Connect the power steering gear inlet hose fitting (1) to the power steering pump and tighten the fitting to 25 N.m (18 lb ft).

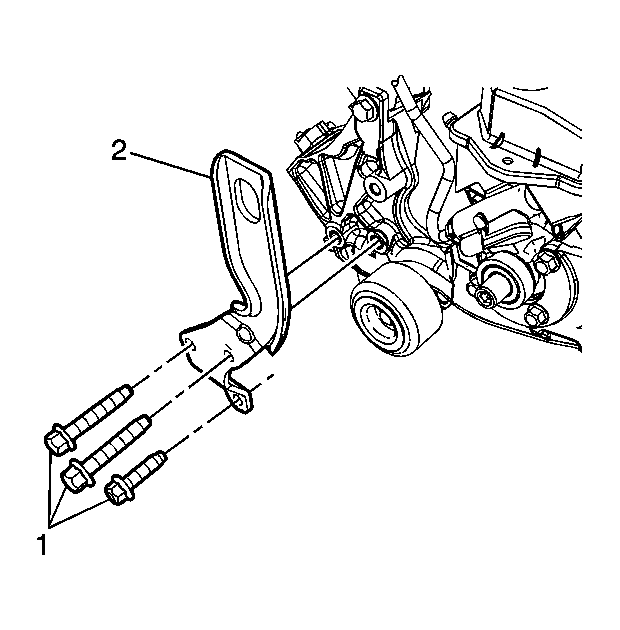

    6. Fig 5: Identifying Front Engine Lift Bracket
    GM1775111Courtesy of GENERAL MOTORS CORP.
  6. Install the front engine lift bracket (2) and bolts (1) and tighten to 50 N.m (37 lb ft).

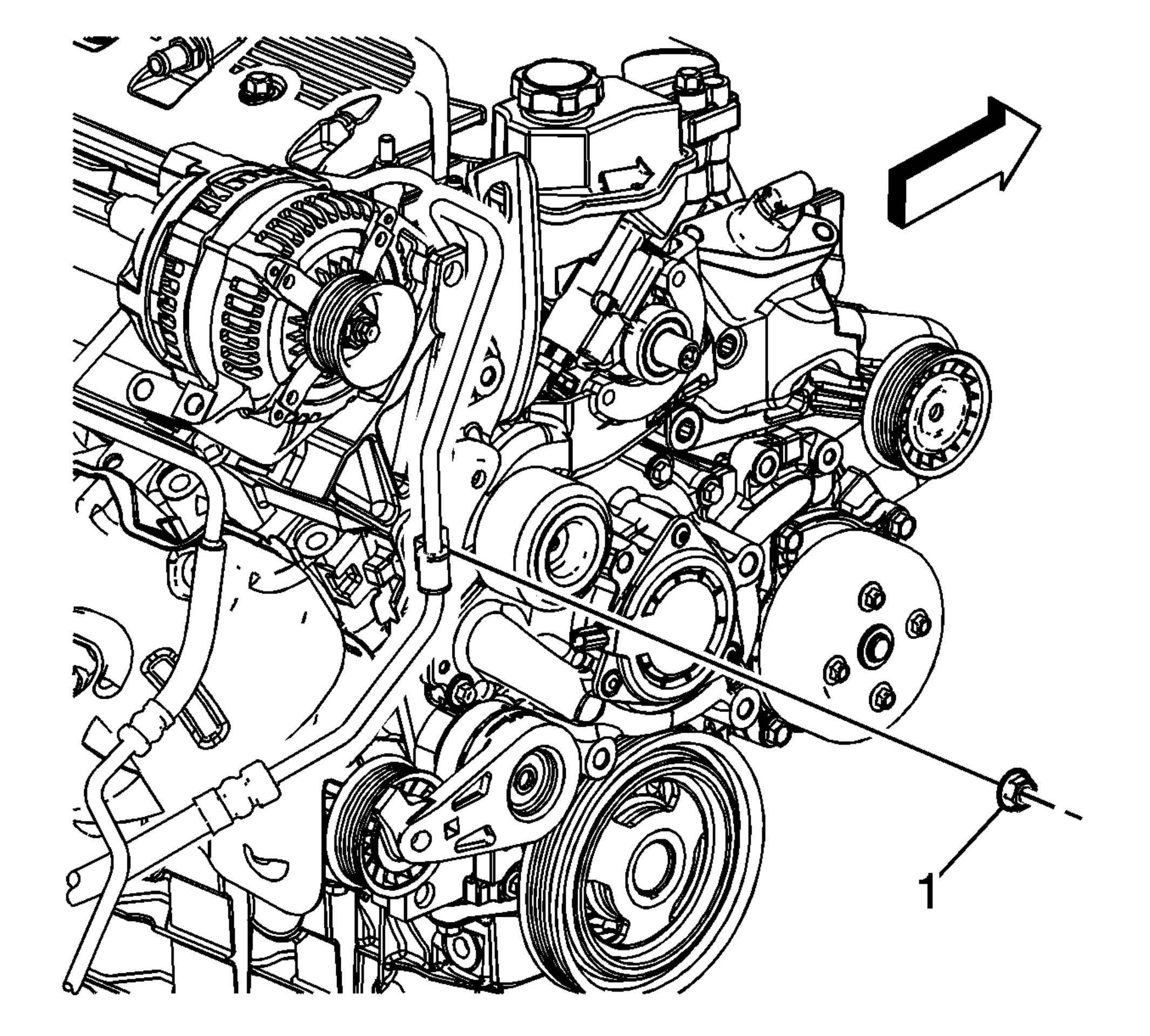

    7. Fig 6: Power Steering Gear Inlet Hose Bracket Nut
    GM1869187Courtesy of GENERAL MOTORS CORP.
  7. Install the power steering gear inlet hose bracket nut (1) and tighten to 9 N.m (80 lb in).
  8. Clean any excess fluid from the vehicle and remove the drain pans.
  9. Install the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement .
  10. Install the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement (LY7)  or Power Steering Pump Pulley Replacement (LZ4)  or Power Steering Pump Pulley Replacement (LE5)
  11. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
