Power Steering Schematics
WARNING:
This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

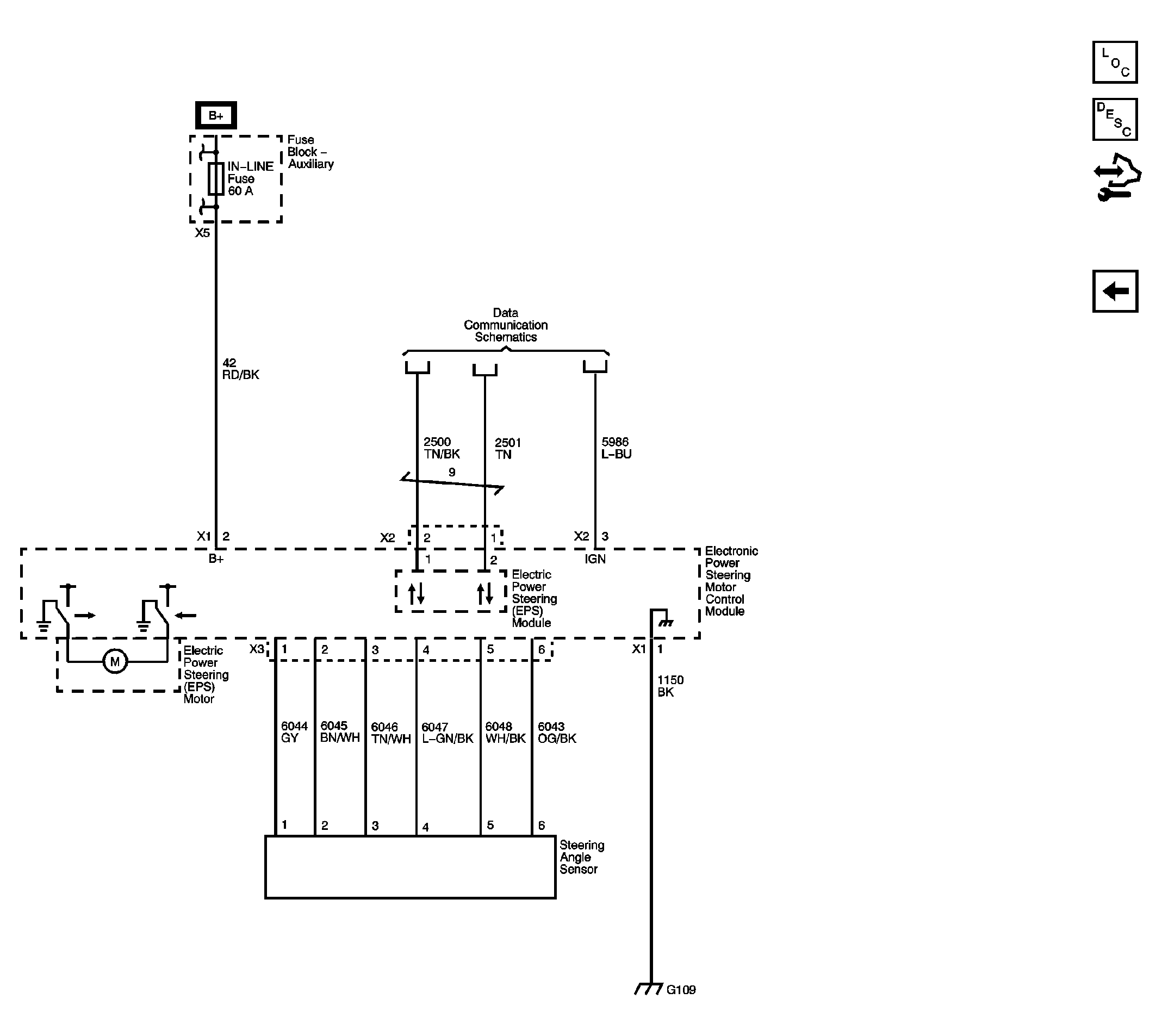

Fig 1: Electric Power Steering (EPS) Control Module (LAT/LE5)
Courtesy of GENERAL MOTORS CORP.

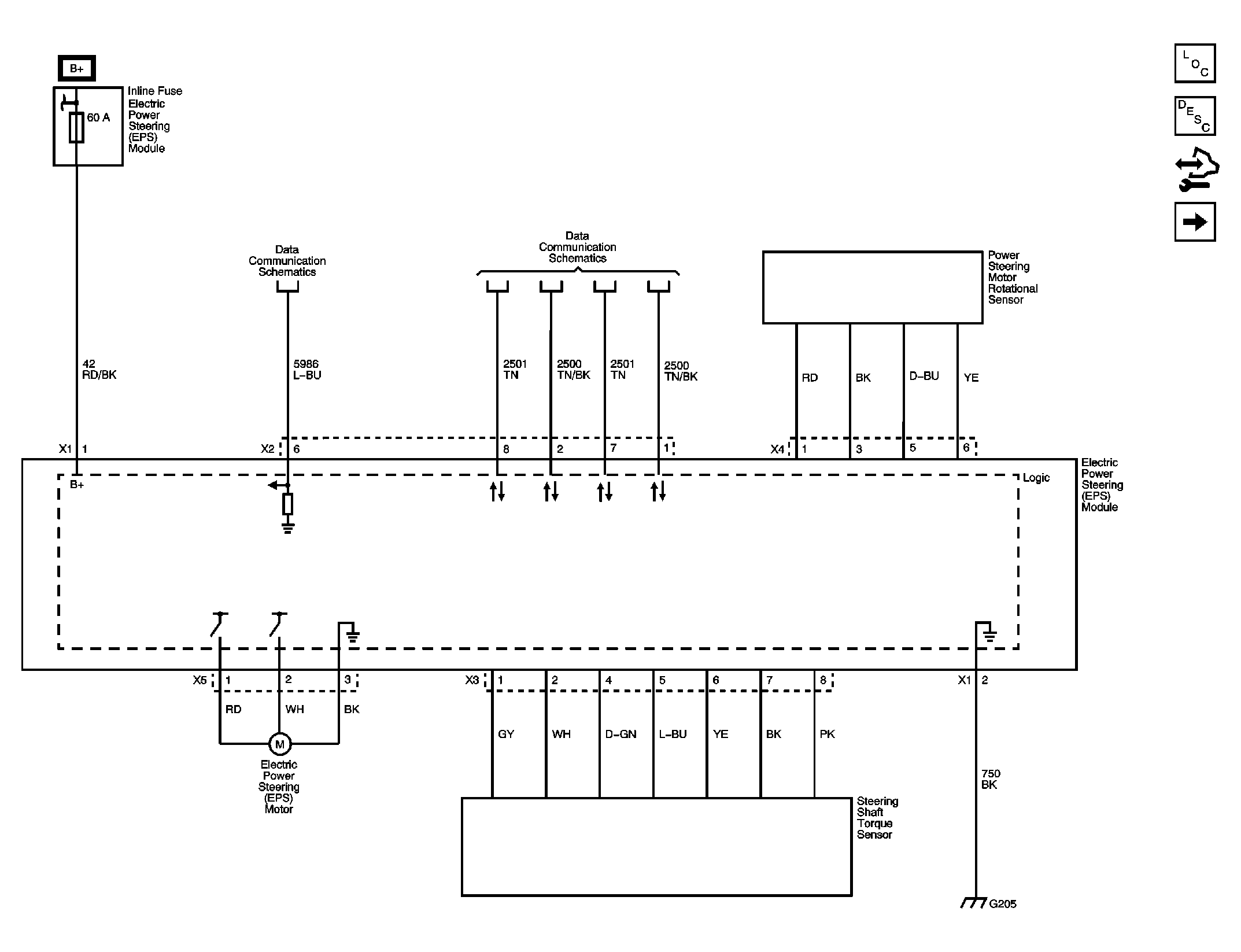

Fig 2: Electric Power Steering (EPS) Control Module (HP5)
Courtesy of GENERAL MOTORS CORP.
