Rear Camber Adjustment
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

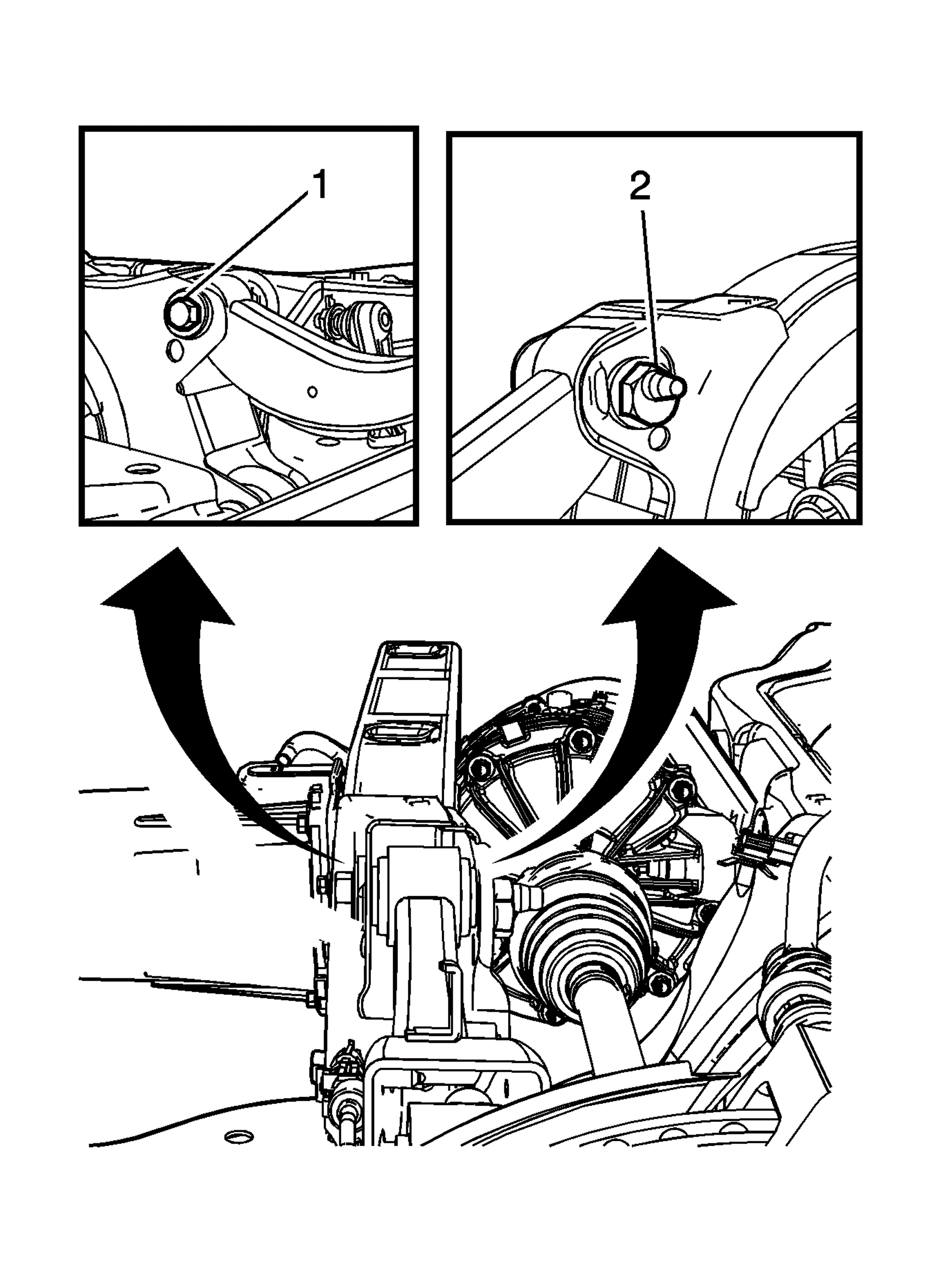

- Loosen the upper control arm nut (2).
- Rotate the upper control arm adjusting bolt (1), to adjust the camber.
- Snug the upper control arm nut (2), do not tighten at this time.
- Reinspect the rear camber specifications and adjust as necessary.
- Hold the upper control arm adjusting bolt (1).
- Tighten the upper control arm nut (2) to 110 N.m (81 lb ft).
- Repeat the procedure for the other rear wheel.
CAUTION:
Refer to Fastener Caution
.
