Drive Motor Generator Battery Control Module Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

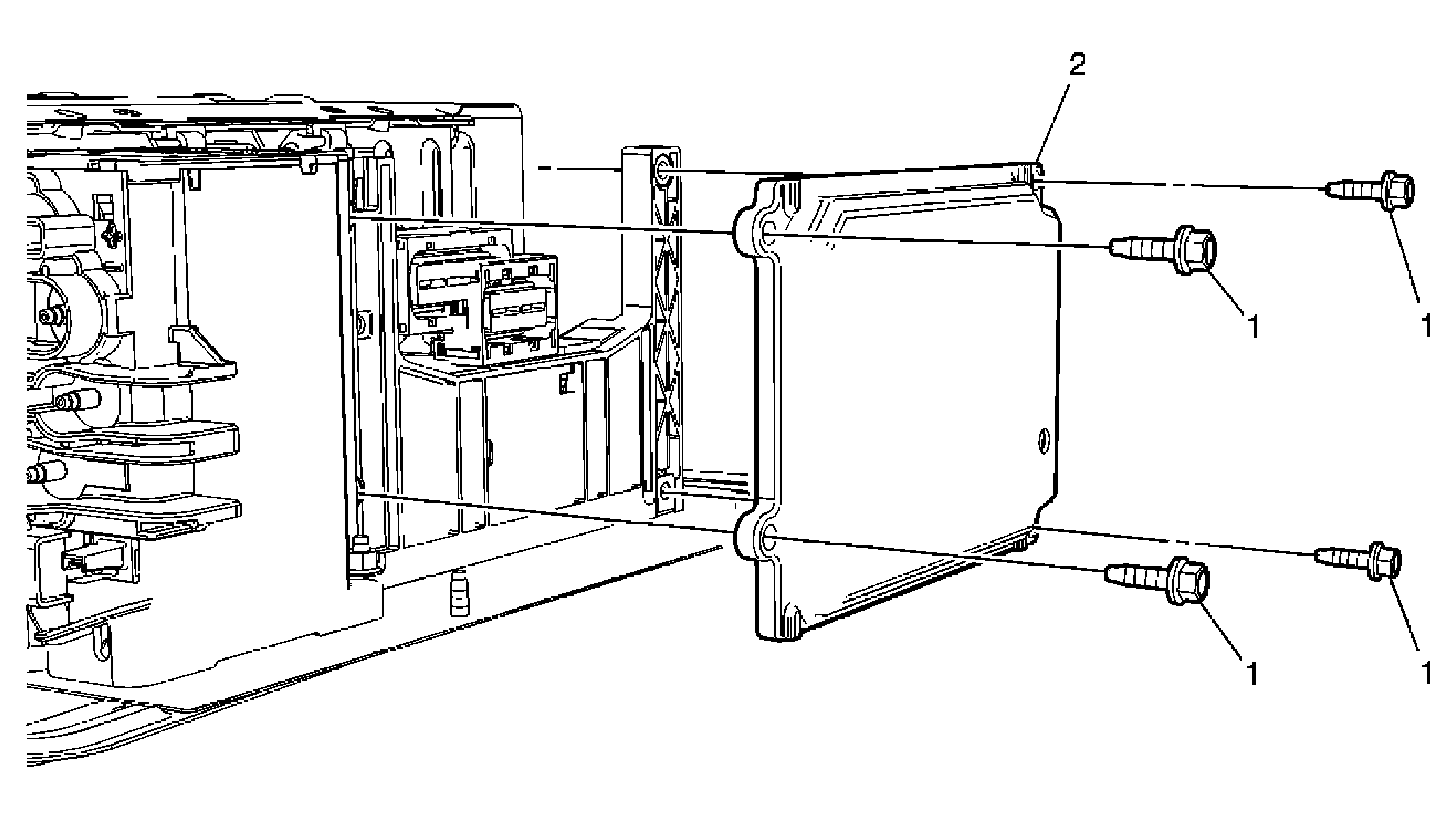

Fig 1: Drive Motor Generator Battery Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety . Disable the high voltage system. Refer to High Voltage Disabling . Remove the battery terminal cover. Refer to Battery Terminal Cover Replacement .
1	Drive Motor Generator Battery Control Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (55 lb in)
2	Drive Motor Generator Battery Control Module Procedure Disconnect the electrical connectors. Enable the high voltage system. Refer to High Voltage Enabling . If replacing, reprogram the control module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure

Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety .
Disable the high voltage system. Refer to High Voltage Disabling .
Remove the battery terminal cover. Refer to Battery Terminal Cover Replacement .

Drive Motor Generator Battery Control Module Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 6 N.m (55 lb in)

Drive Motor Generator Battery Control Module

Procedure

Disconnect the electrical connectors.
Enable the high voltage system. Refer to High Voltage Enabling .
If replacing, reprogram the control module. Refer to Control Module References
