Engine Controls Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

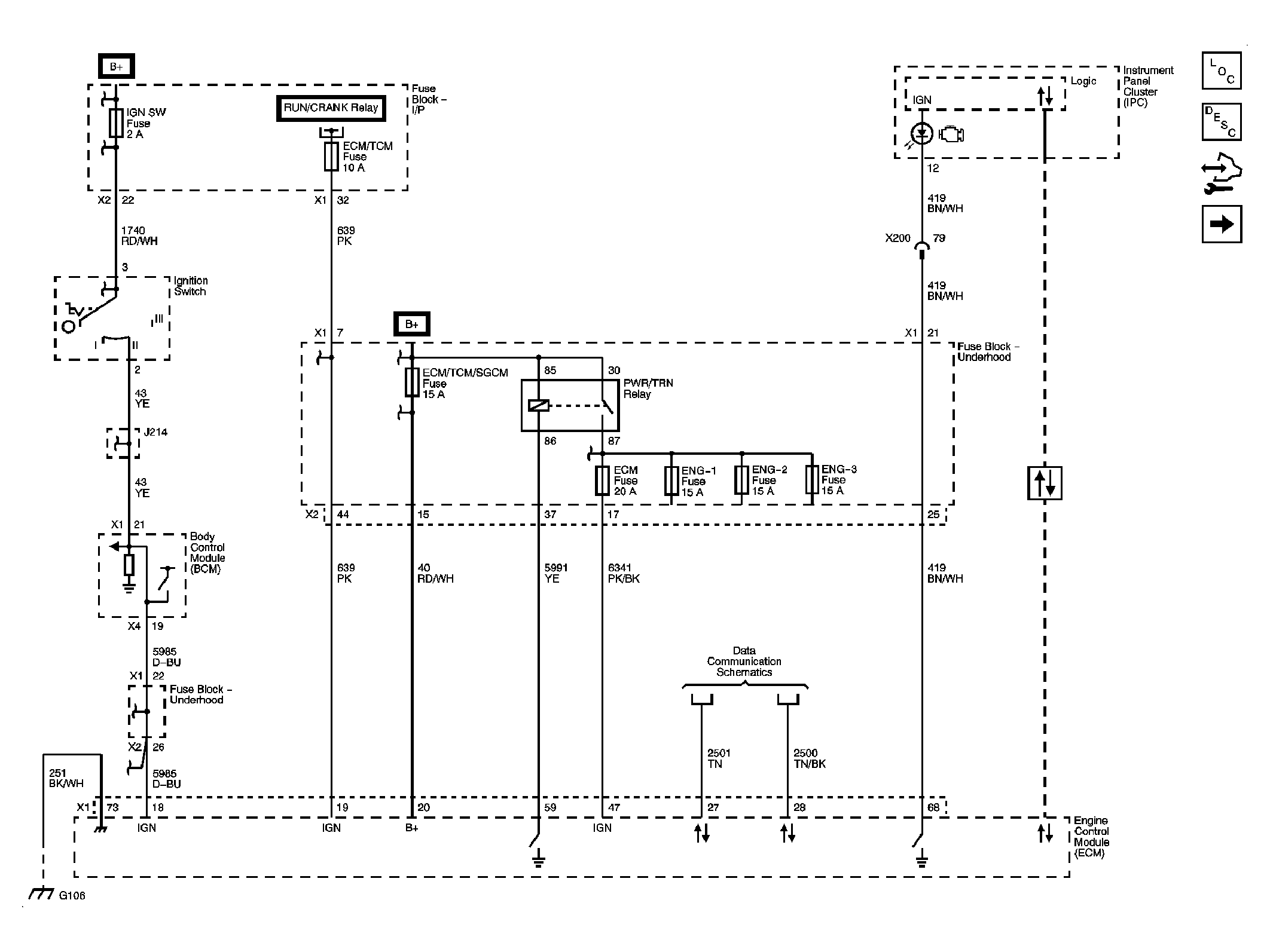

Fig 1: Module Power, Ground, Serial Data, and MIL (LZ4)

Courtesy of GENERAL MOTORS CORP.

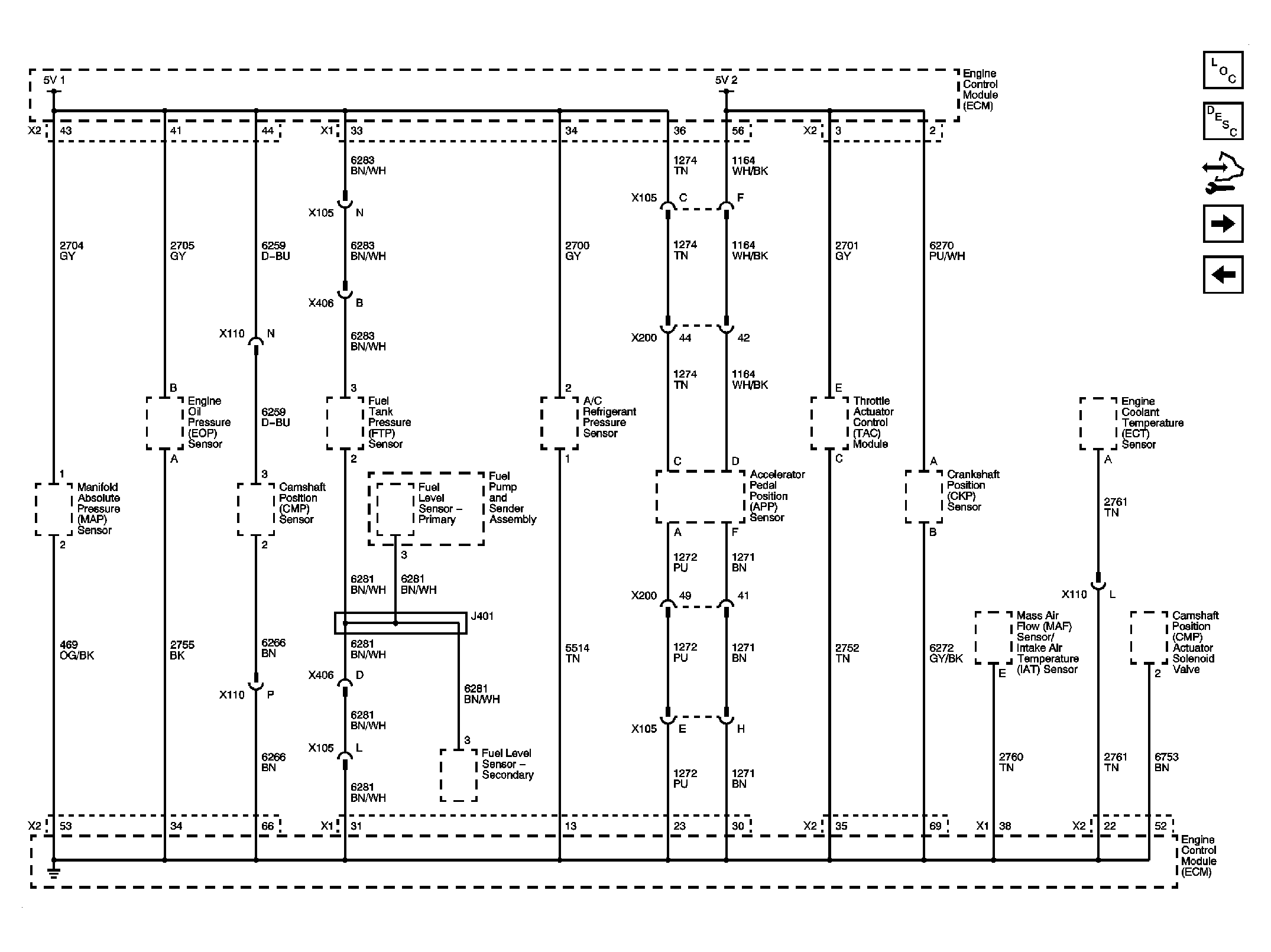

Fig 2: Engine Data Sensors - 5-Volt 1 and Low Reference (LZ4)

Courtesy of GENERAL MOTORS CORP.

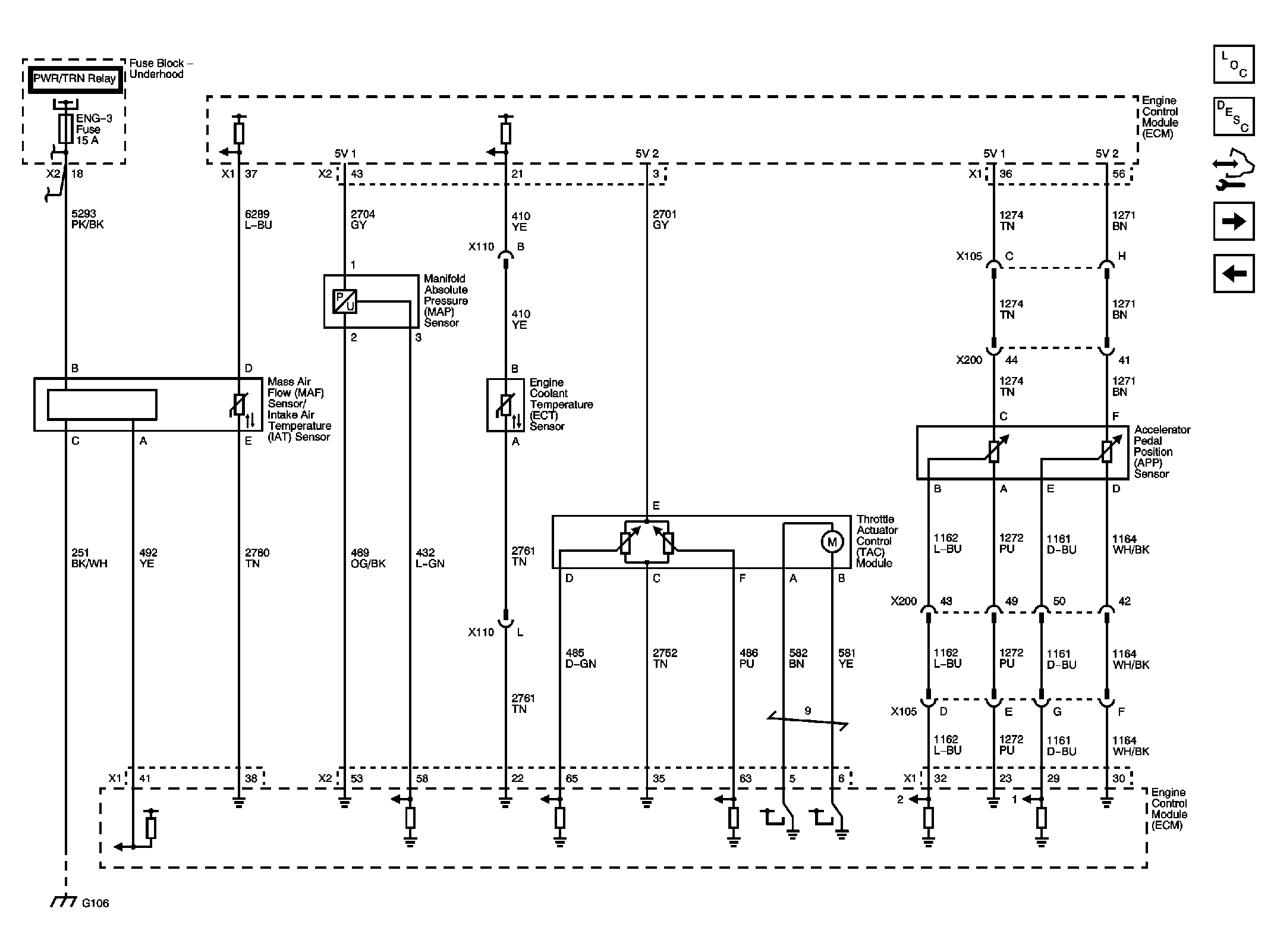

Fig 3: Engine Data Sensors - Pressure and Temperature (LZ4)

Courtesy of GENERAL MOTORS CORP.

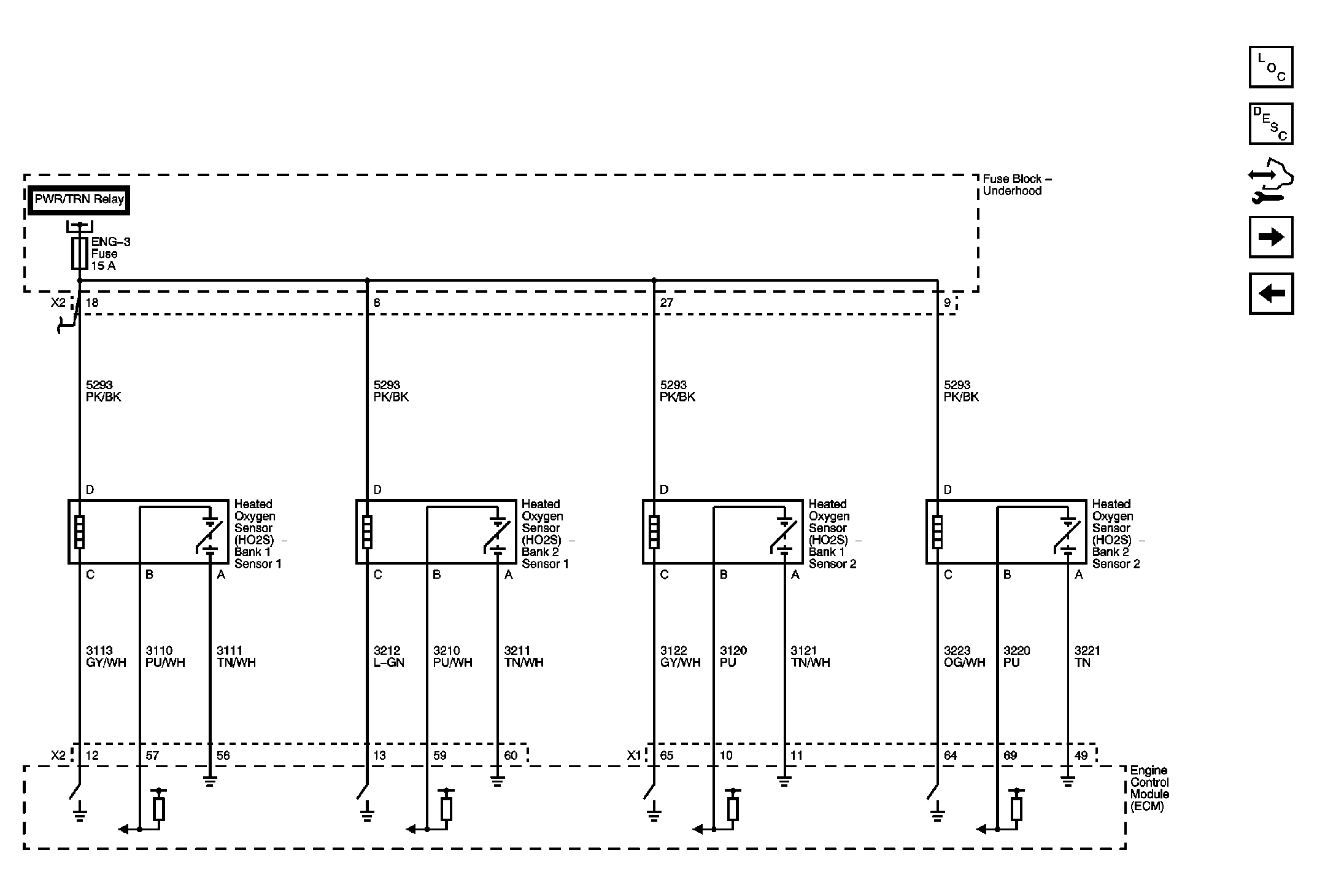

Fig 4: Engine Data Sensors - Heated Oxygen Sensors (HO2S) (LZ4)

Courtesy of GENERAL MOTORS CORP.

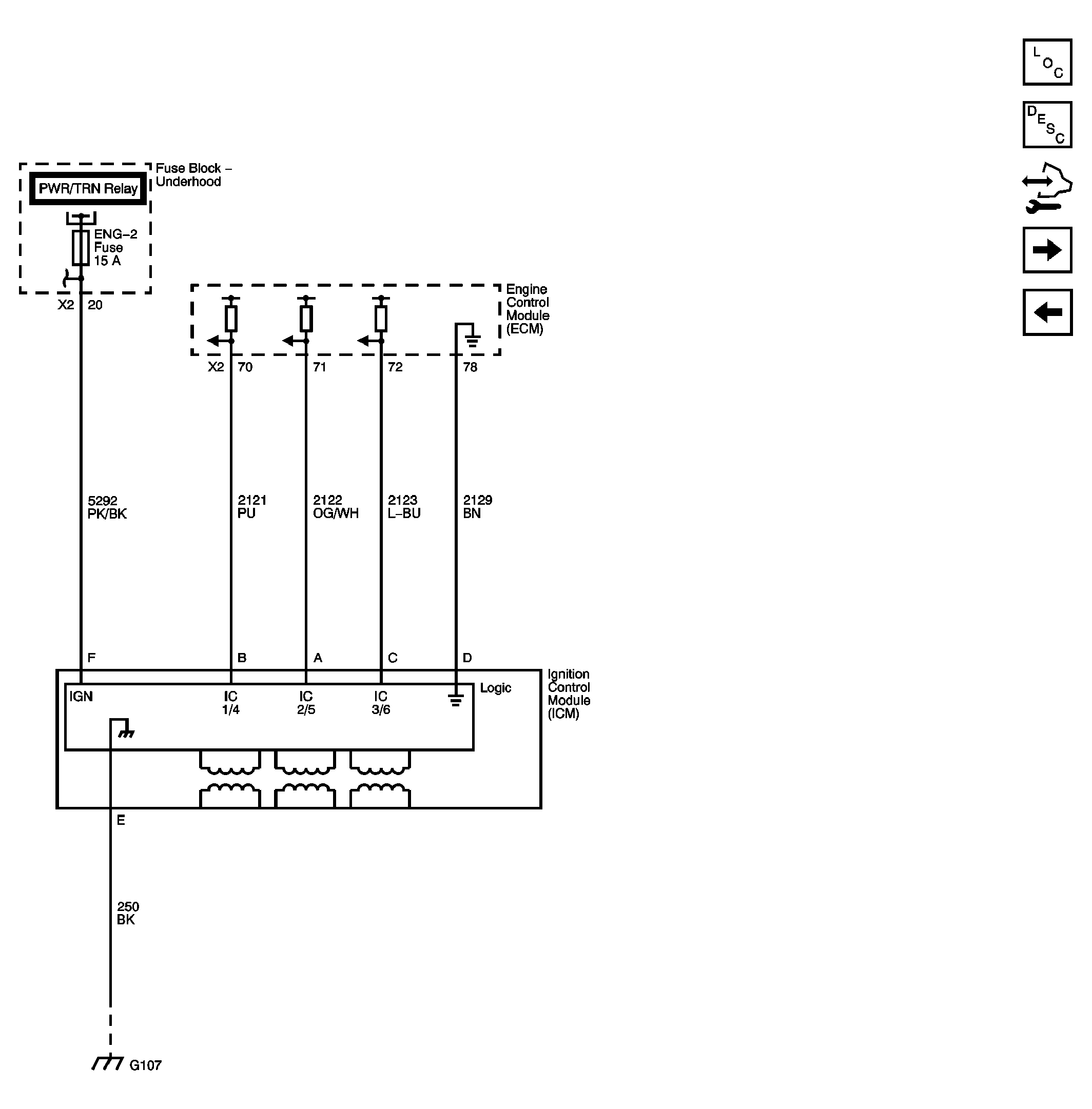

Fig 5: Ignition Controls - Ignition System (LZ4)

Courtesy of GENERAL MOTORS CORP.

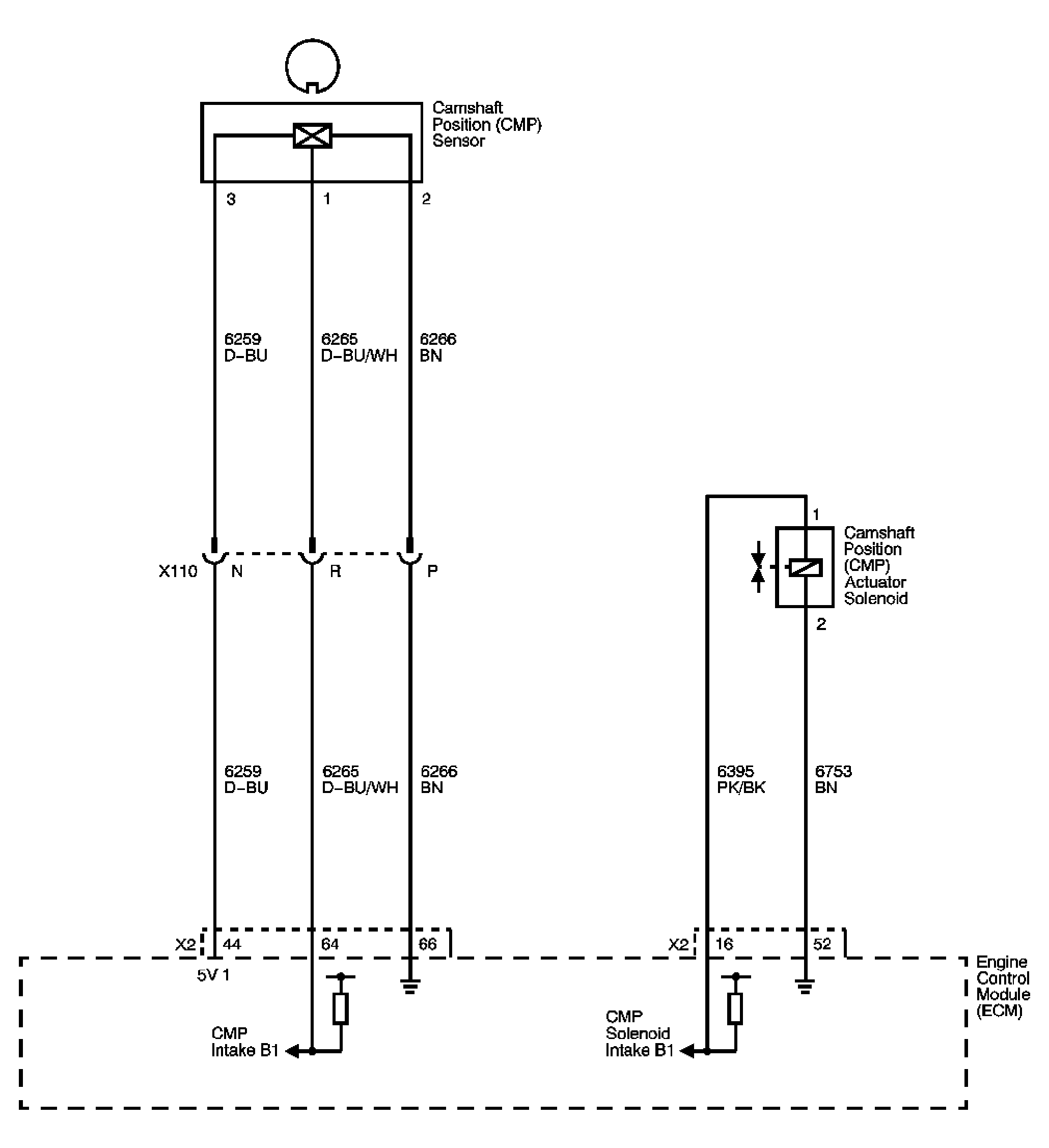

Fig 6: Ignition Controls - CKP and KS Sensors (LZ4)

Courtesy of GENERAL MOTORS CORP.

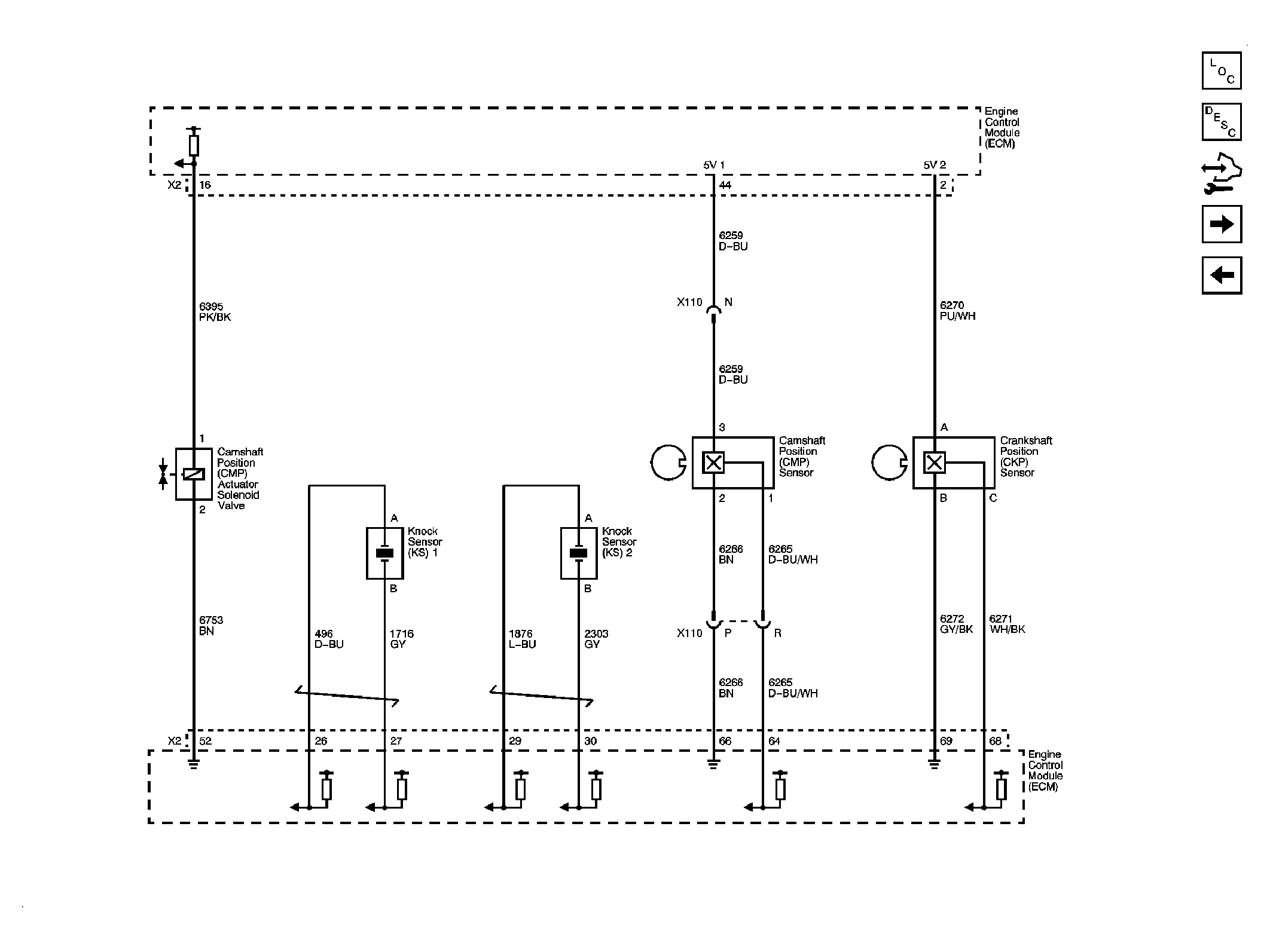

Fig 7: Ignition Controls - CMP Sensors and Actuator Solenoids (LZ4)

Courtesy of GENERAL MOTORS CORP.

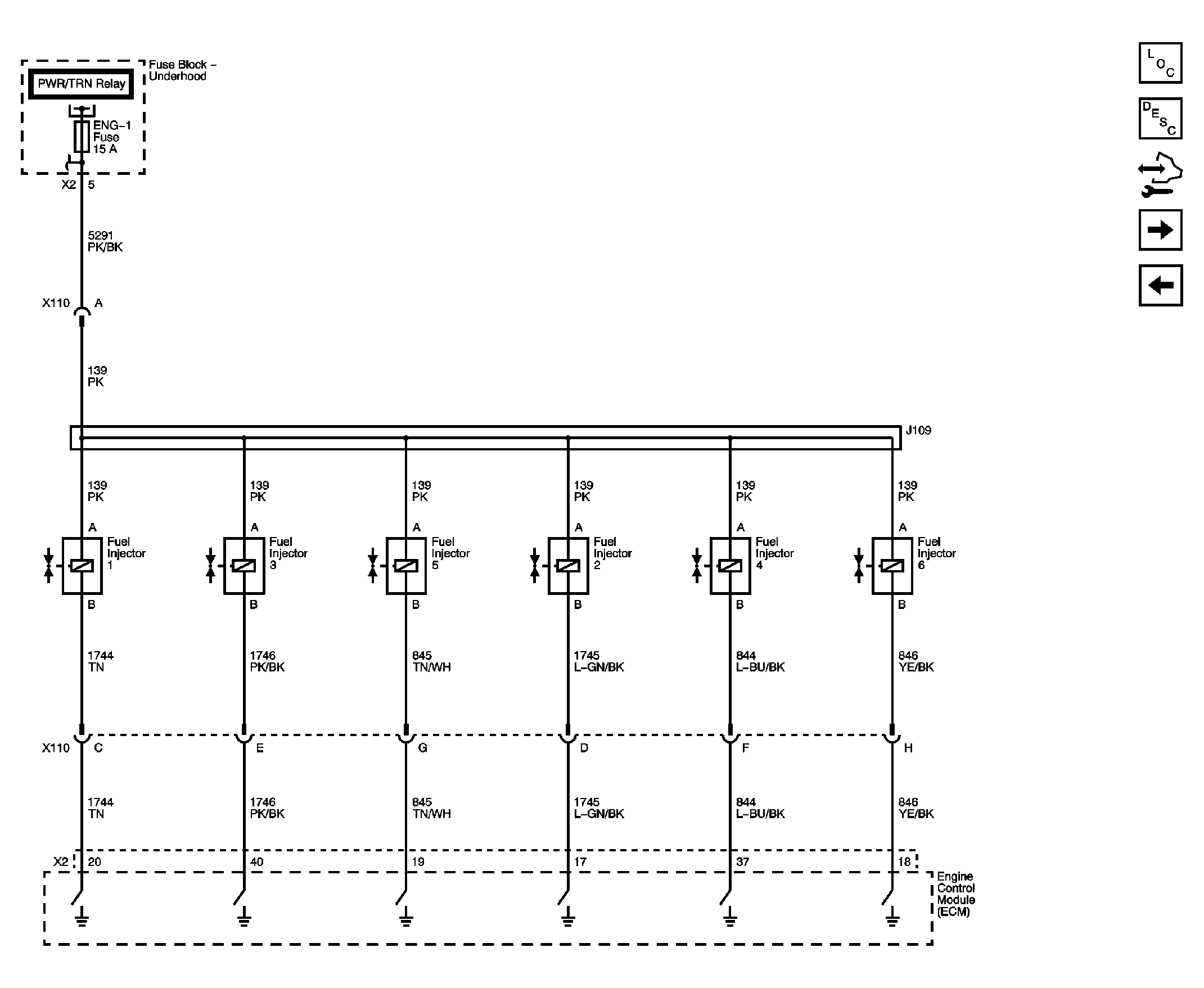

Fig 8: Fuel Controls - Fuel Injectors (LZ4)

Courtesy of GENERAL MOTORS CORP.

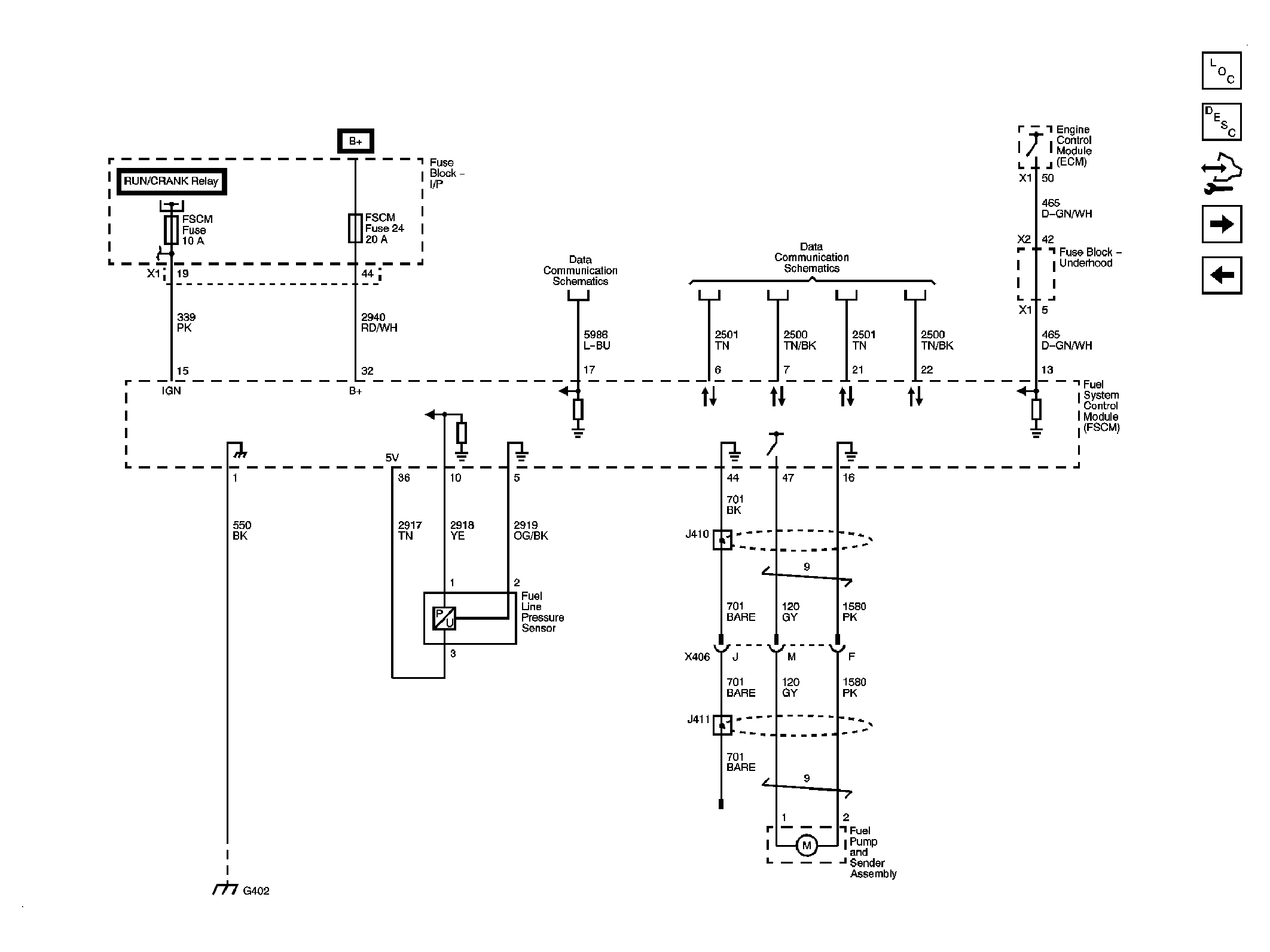

Fig 9: Fuel Controls - Fuel Pump Controls (LZ4)

Courtesy of GENERAL MOTORS CORP.

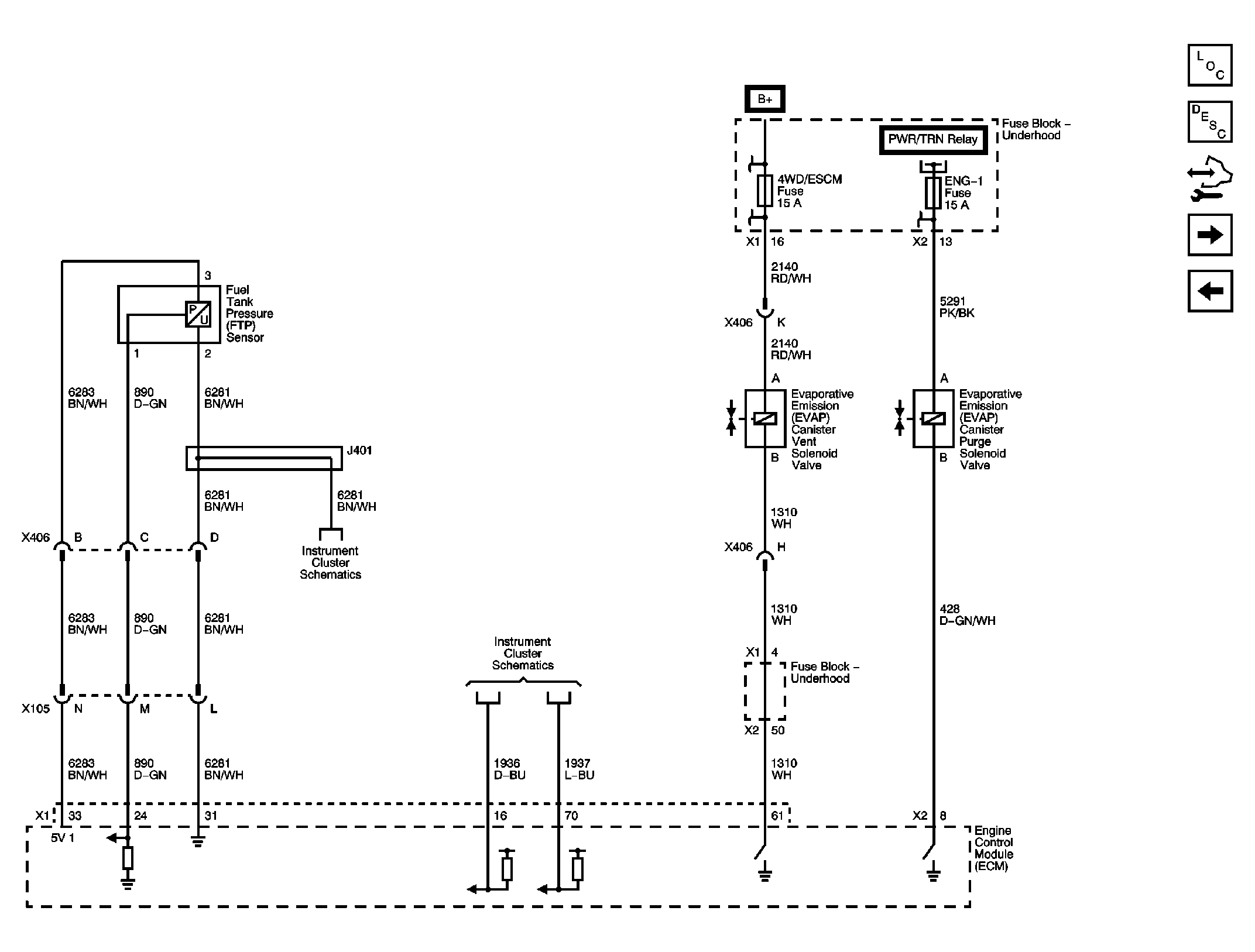

Fig 10: Fuel Controls - Evaporative Emissions (EVAP) Controls (LZ4)

Courtesy of GENERAL MOTORS CORP.

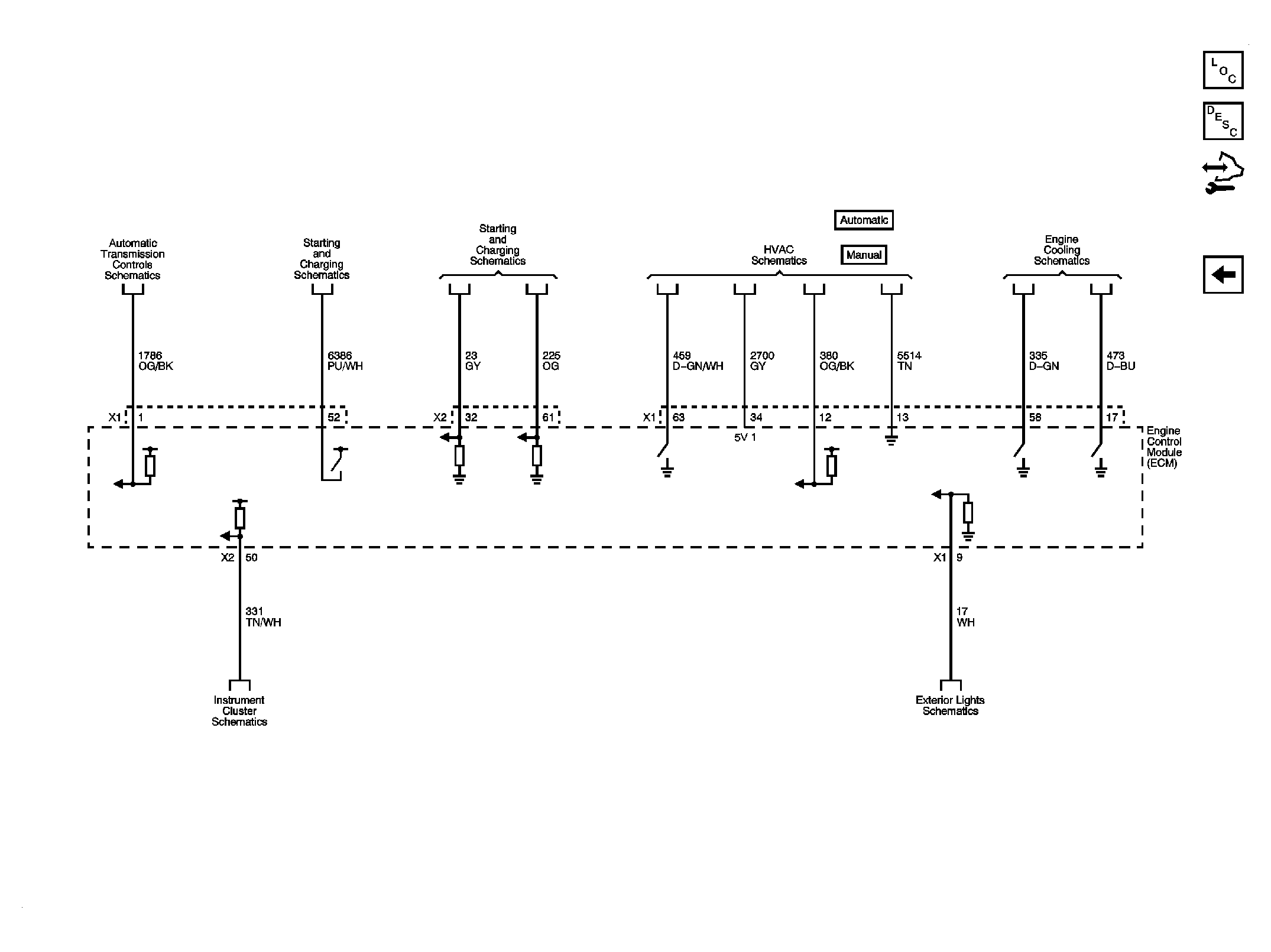

Fig 11: Controlled/Monitored Subsystem References (LZ4)

Courtesy of GENERAL MOTORS CORP.
