Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The new rear sliding window motor/module is equipped with the bracket and relays.
  1. Remove the rear sliding window lower garnish molding. Refer to Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) or Rear Window Lower Garnish Molding Replacement (Regular Cab) .

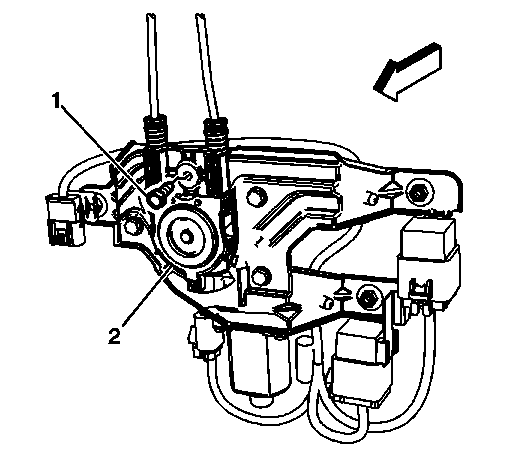

    2. Fig 1: View Of Regulator & Screw
    GM1852031Courtesy of GENERAL MOTORS CORP.
  2. Cycle the rear sliding window to the fully closed position.
  3. Remove the screw (1) from the rear sliding window regulator and cables (2).
  4. Pull forward on the regulator and cables (2) to release it from the motor/module.

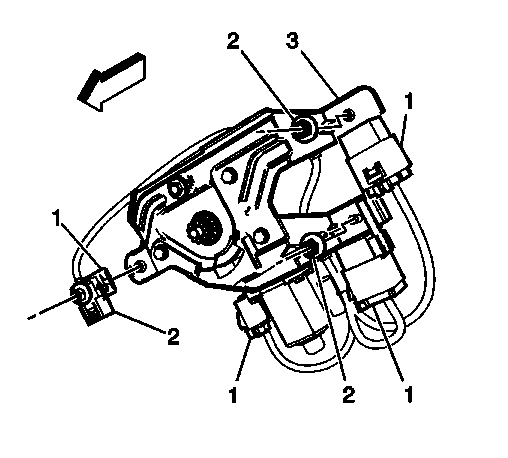

    5. Fig 2: View Of Sliding Window Motor Module & Components
    GM1852042Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear sliding window motor/module nuts (2).
  6. Disconnect the rear sliding window electrical connectors from the motor/module and relays (1).
  7. Remove the rear sliding window motor/module assembly from the vehicle.
