Installation Procedure
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

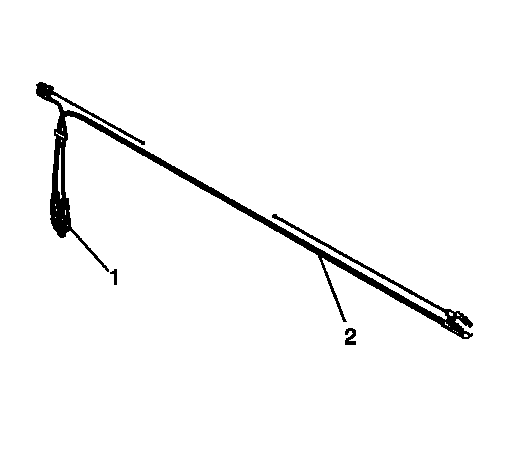

- Install the regulator (1) and cables (2) to vehicle.

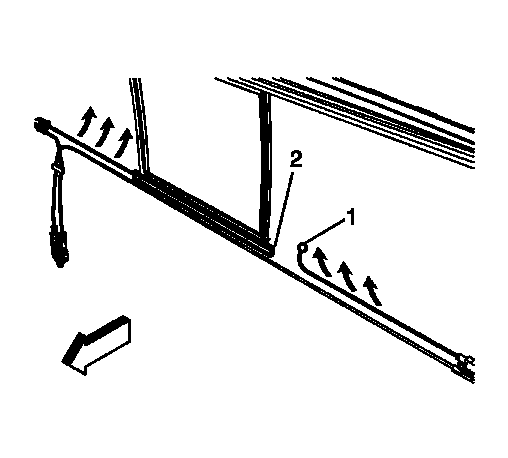

- Install the cable ends (1) to the window guide (2) at each end of the window.
- Install the regulator (2) to the motor/module.
- Install the screw (1) to the motor/module.
Tighten: Tighten nuts to 5 N.m (44 lb in).

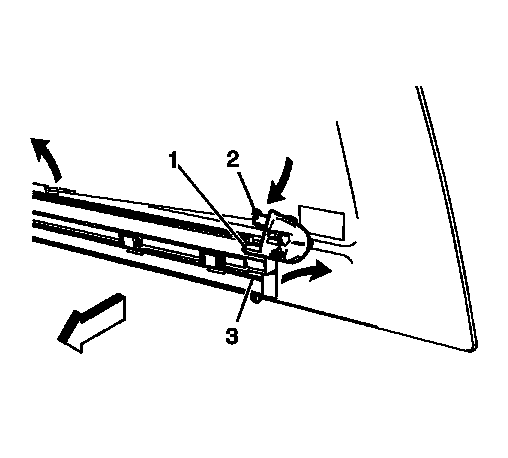

- Install the rear sliding window pulley (1).
- Align the tabs (2) on the pulley (1) with the notch in the frame (3).
- Turn the pulley downward, locking the pulley into the frame (3).

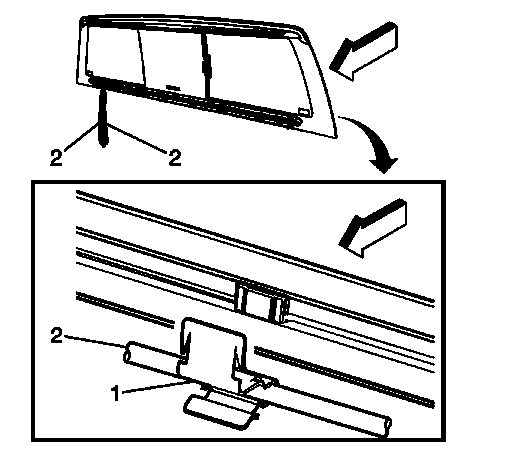

- Install the regulator cables (2) to the retainers (1) across the bottom edge of the window frame.

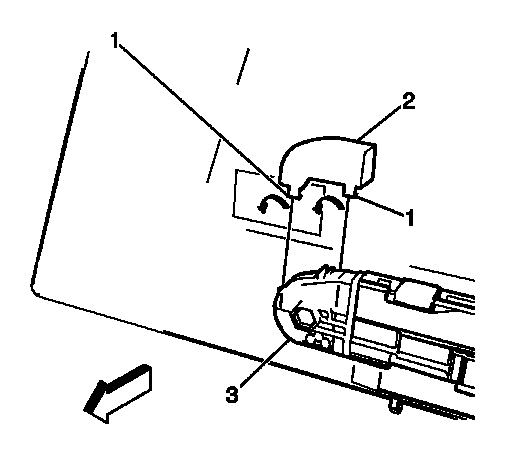

- Install the rear sliding window pulley covers (2) to the pulley (3), clip the tabs (1) in place.

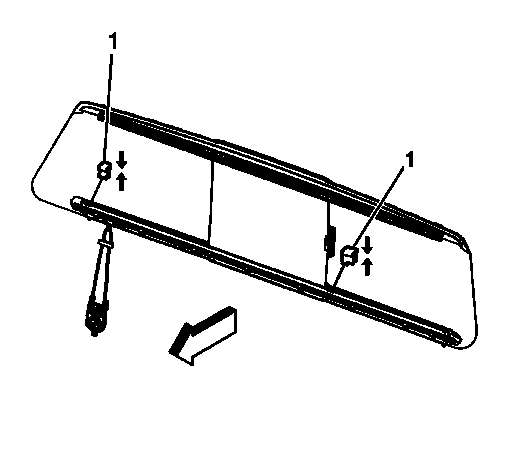

- Install the rear sliding window stops (1) in place and fully seated.
- Cycle the rear sliding window to the fully closed position.
- Install the lower garnish molding. Refer to Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) or Rear Window Lower Garnish Molding Replacement (Regular Cab) .
- Inspect the rear sliding window for proper operation.
- Clean the window.
NOTE:
When installing the regulator (2) align the gear to the motor drivegear before installing the screw.
CAUTION:
Refer to Fastener Caution
.
NOTE:
When removing the tension from the cables, depress and hold spring on the regulator to remove tension from the cable before locking the pulley into the frame. Once the pulley has been locked, the spring can then be release.
