Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a stationary window into the opening. Refer to Adhesive Installation of Stationary Windows (Rear Window)  or Adhesive Installation of Stationary Windows (Windshield) .

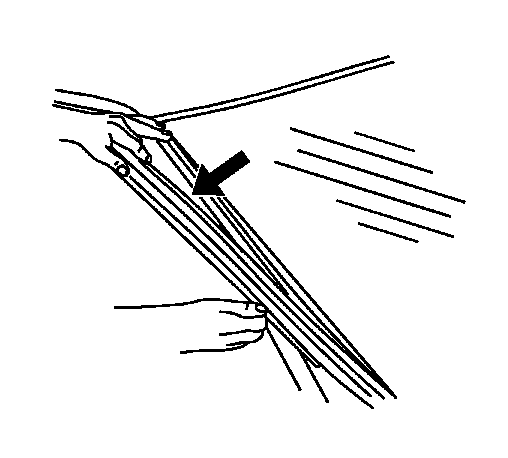

    2. Fig 1: View Of Reveal Molding
    GM1743197Courtesy of GENERAL MOTORS CORP.
  2. Install the window side reveal moldings to the vehicle.

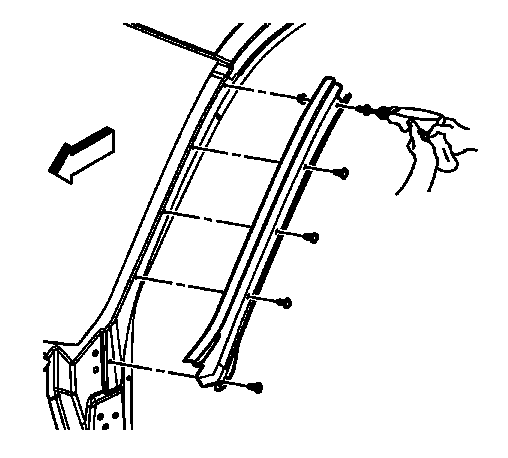

    3. Fig 2: Removing/Installing Screws From Window Side Reveal Moldings
    GM1743200Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the screws to the left and the right sides of the window side reveal moldings.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

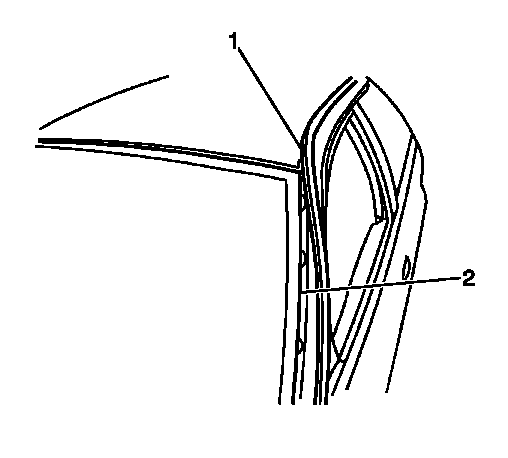

    4. Fig 3: View Of Front Door Sealing Weatherstrips & Retainer
    GM1743196Courtesy of GENERAL MOTORS CORP.
  4. Install the front door sealing weatherstrips (1) to the retainer (2).
  5. Install the cowl air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  6. Install the window wiper arms. Refer to Windshield Wiper Arm Replacement (LD) .
  7. Install the antenna mast, if equipped. Refer to Radio Antenna Replacement .
  8. Install the outside moisture sensor lens. Refer to Windshield Outside Moisture Sensor Lens Replacement
  9. Install the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .
  10. Close the hood.
  11. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
