Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

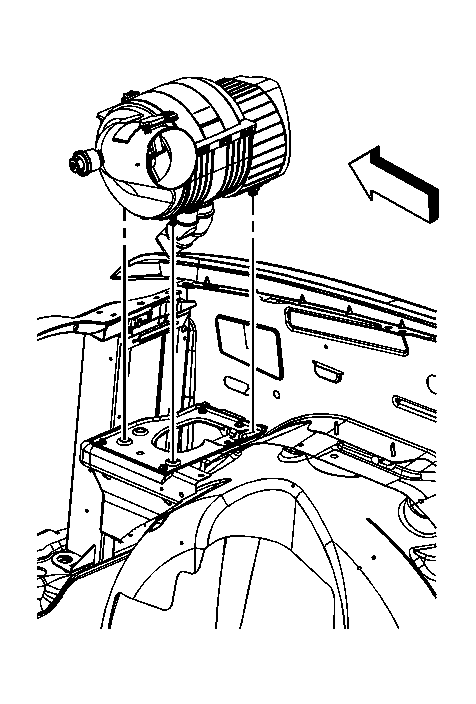

Fig 1: Identifying Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Line up the retaining pins with the grommets.
Install the air cleaner assembly until the air cleaner is seated fully on the mounts and is up against the fender apron.

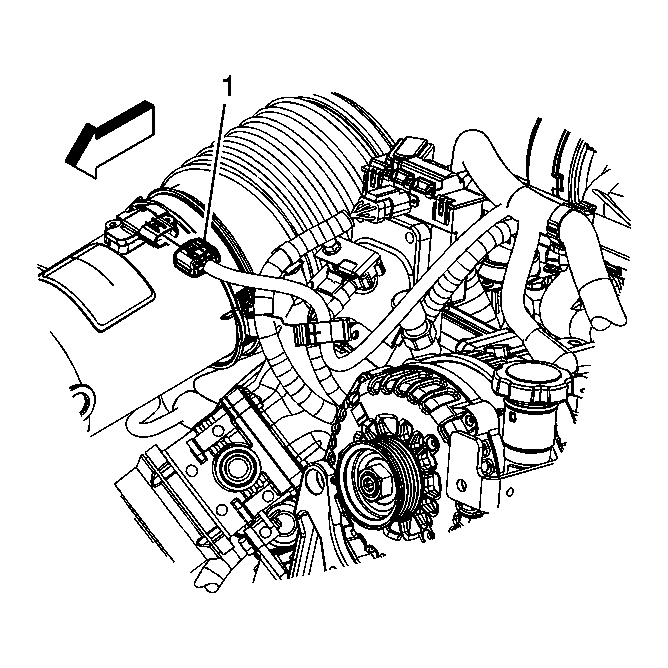

Fig 2: View Of Mass Airflow Sensor/Intake Air Temperature Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
