Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

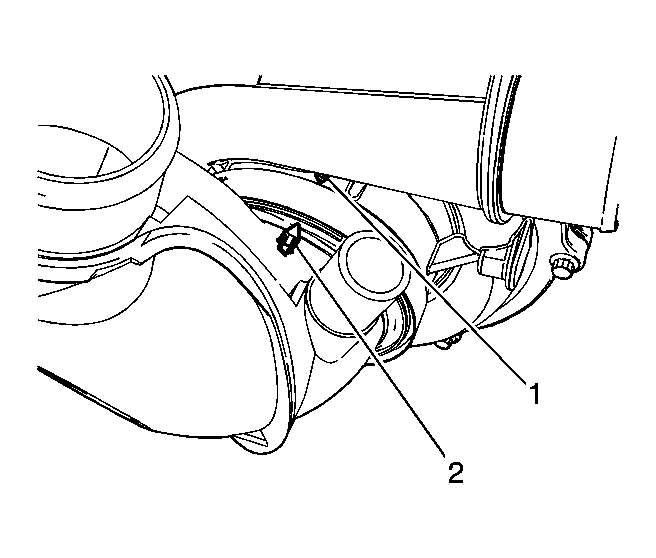

Fig 1: Locating Alignment Arrows

Courtesy of GENERAL MOTORS CORP.

Clean the mating surfaces on the air intake pipe and the turbocharger.
Align the arrow (2) on the air intake pipe to the arrow (1) on the turbocharger.

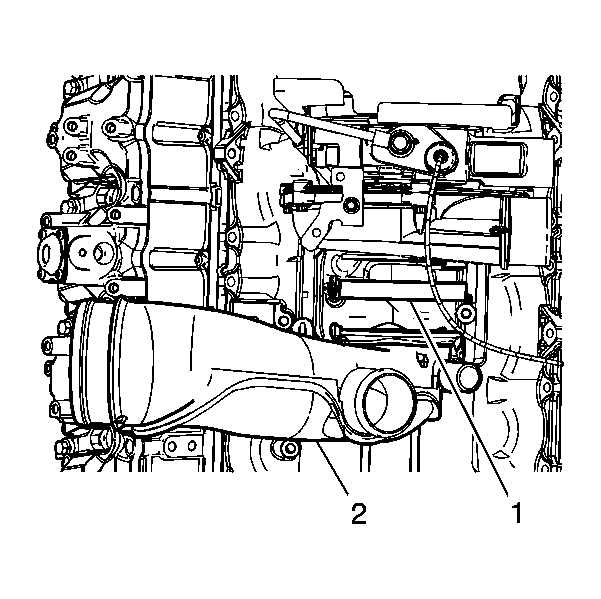

Fig 2: View Of Air Intake Pipe & Turbocharger Clamp

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the air intake pipe (2) into the turbocharger.

NOTE: The clamp for the air intake pipe uses reverse threads.

Tighten the air intake pipe to turbocharger clamp (1).
Tighten: Tighten the clamp to 4.6 N.m (41 lb in).

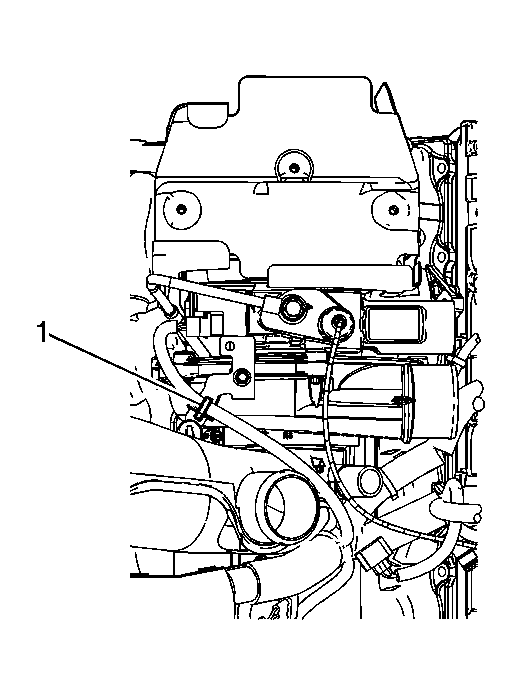

Fig 3: View Of Engine Wiring Harness Clip

Courtesy of GENERAL MOTORS CORP.

Route the turbocharger control solenoid valve wiring harness extension into position.
Install the engine wiring harness clip (1) to the bracket on the turbocharger.

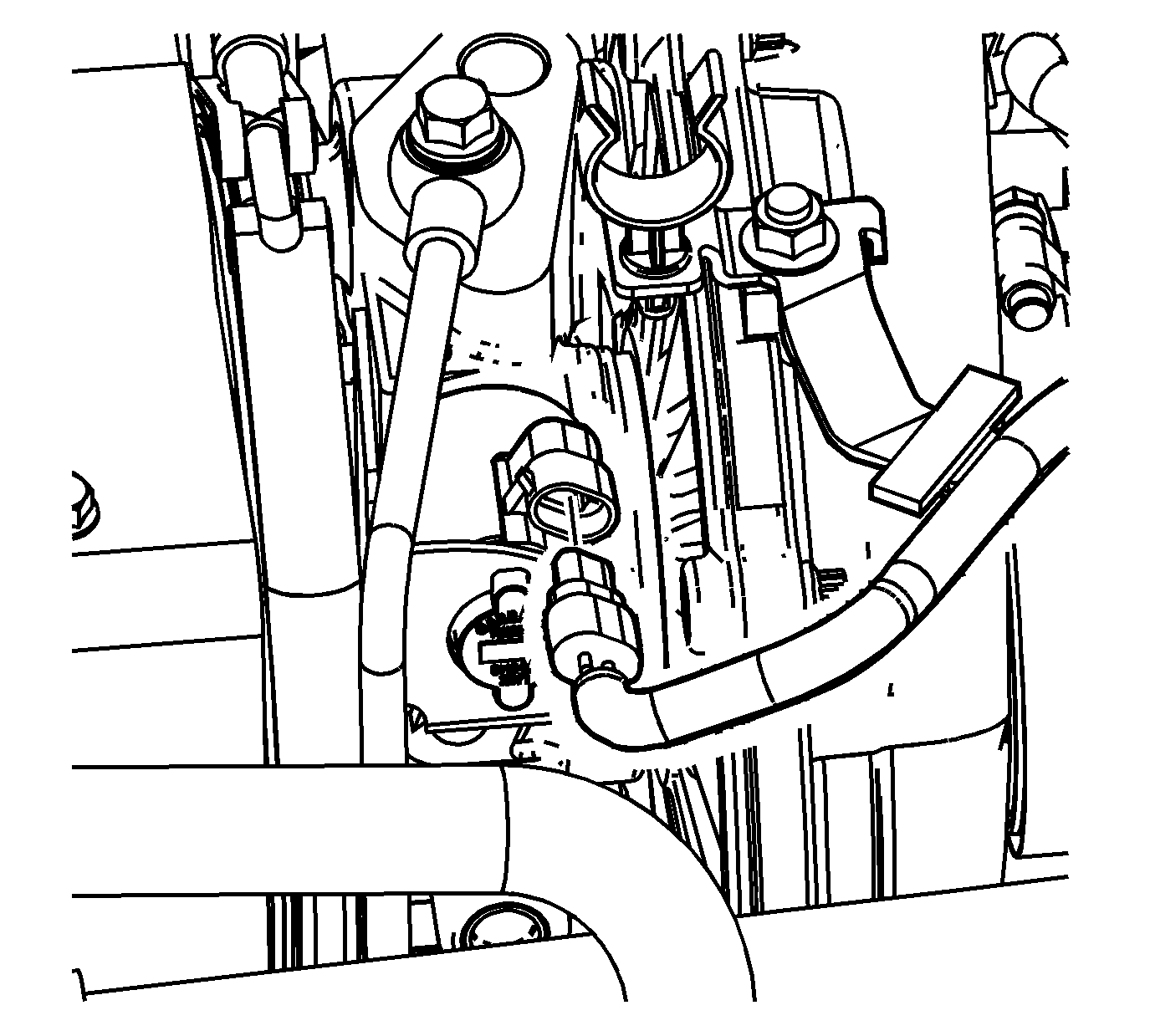

Fig 4: View Of Turbocharger Vane Control Solenoid Valve & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector to the turbocharger control solenoid valve.
Install the PCV hose/pipe to the air intake pipe. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
Install the water outlet tube. Refer to Water Outlet Tube Replacement (LU3) or Water Outlet Tube Replacement (LMM) .
