Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

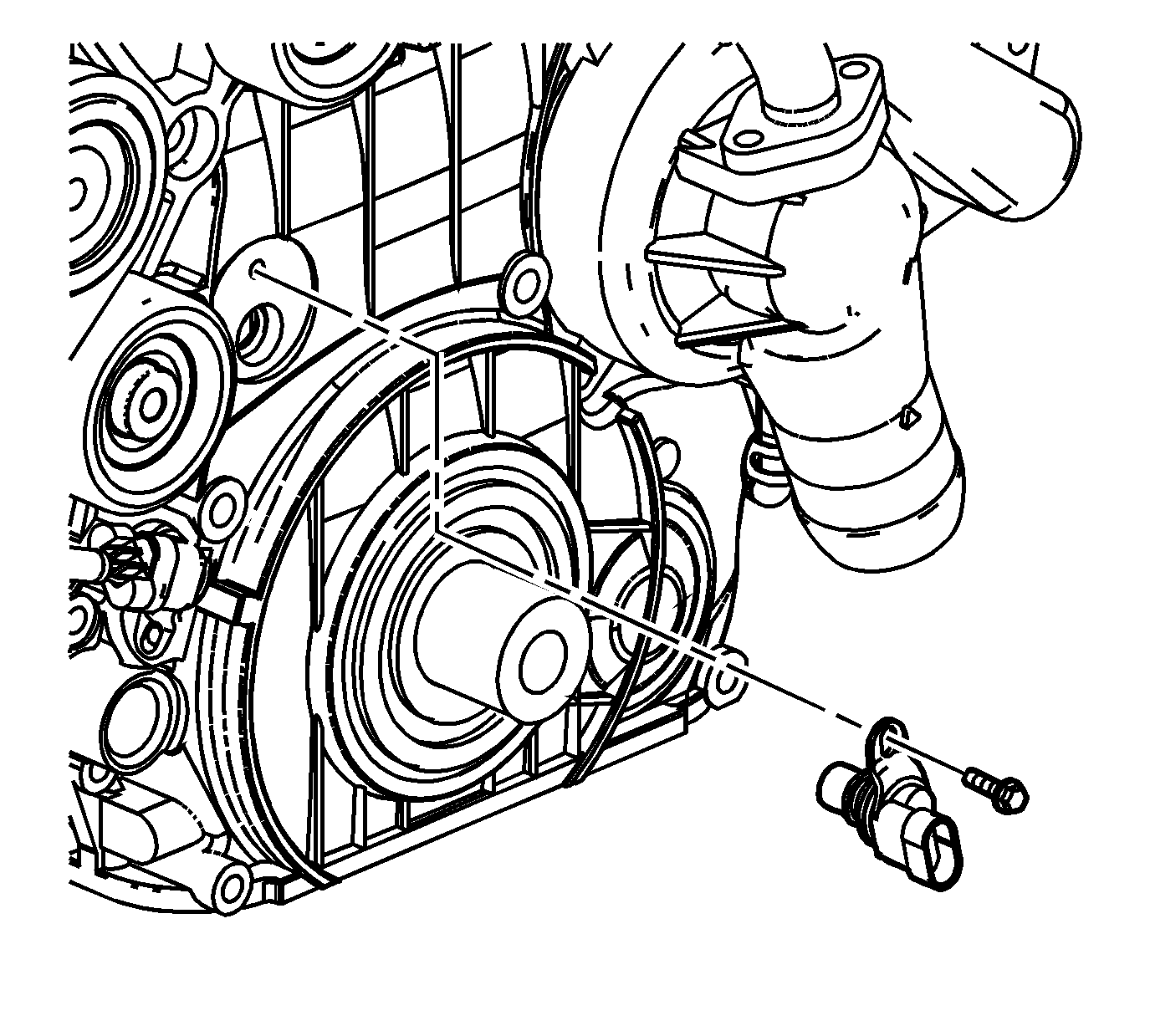

    Fig 1: View Of Camshaft Position Sensor
    GM1334865Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CMP sensor O-ring with clean engine oil.
  2. Install the CMP sensor.
    CAUTION: Refer to Fastener Caution .
  3. Install the CMP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  4. Install the cooling fan pulley. Refer to Fan Pulley Replacement .
