Engine Coolant Temperature Sensor Replacement
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Partially drain the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill) or Cooling System Draining and Filling (Static Fill) . |
|

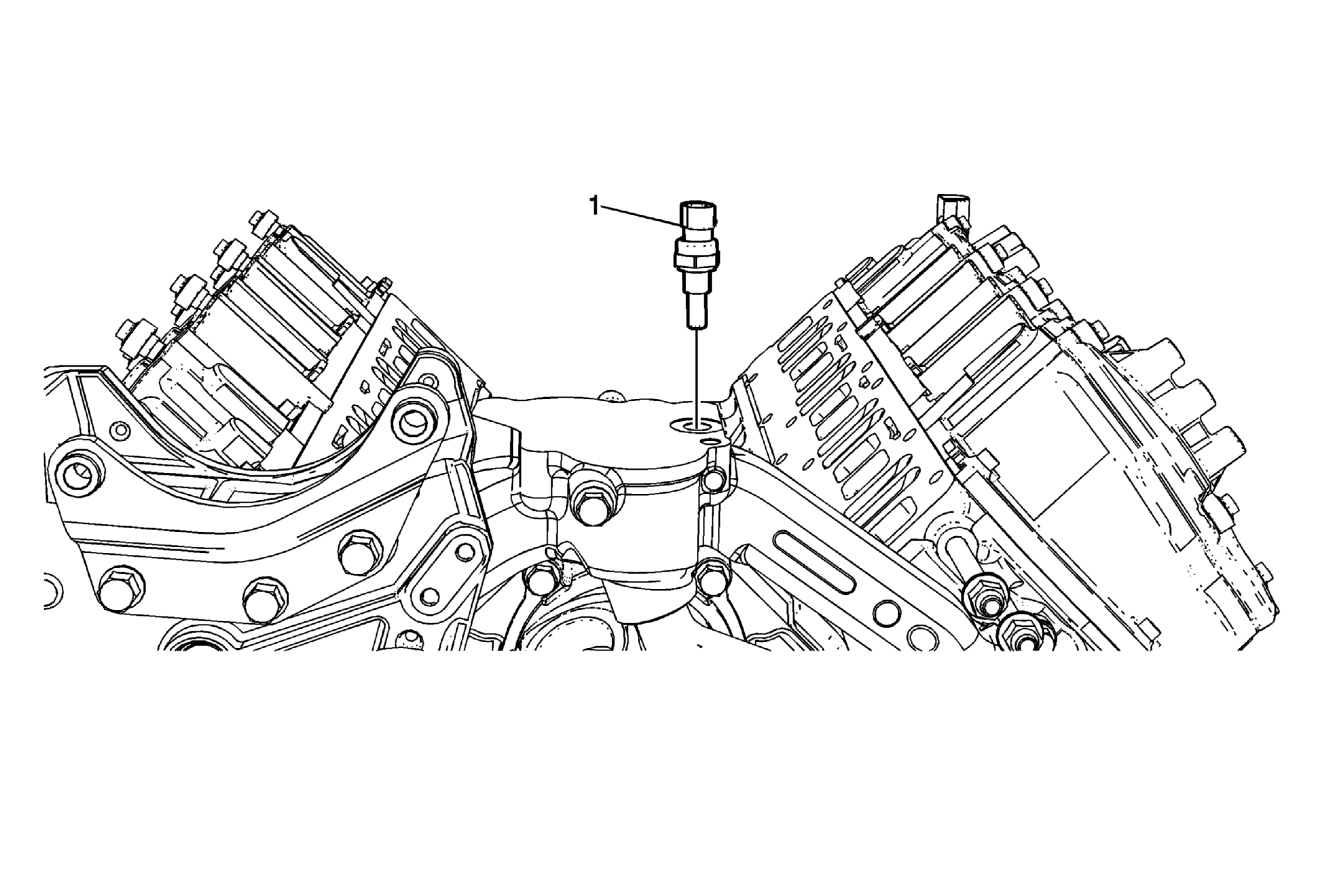

| 1 | Engine Coolant Temperature Sensor
CAUTION:
Refer to Fastener Caution
.
Tighten: 20 N.m(15 lb ft) Procedure: Disconnect the electrical connector. |
