Removal Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Lock Ring
    GM1642096Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel tank. Refer to Fuel Tank Replacement (Pickup)  or Fuel Tank Replacement (Cab/Chassis - Front)  or Fuel Tank Replacement (Cab/Chassis - Rear) .
  2. Disconnect the fuel lines from the sending unit. Refer to Metal Collar Quick Connect Fitting Service  or Plastic Collar Quick Connect Fitting Service .
  3. CAUTION: Avoid damaging the lock ring. Use only J-45722 to prevent damage to the lock ring.
    CAUTION: Do Not handle the fuel sender assembly by the fuel pipes. The amount of leverage generated by handling the fuel pipes could damage the joints.
    NOTE: Do NOT use impact tools. Significant force will be required to release the lock ring. The use of a hammer and screwdriver is not recommended. Secure the fuel tank in order to prevent fuel tank rotation.
  4. Use the J 45722  and a long breaker-bar in order to unlock the fuel sender lock ring.

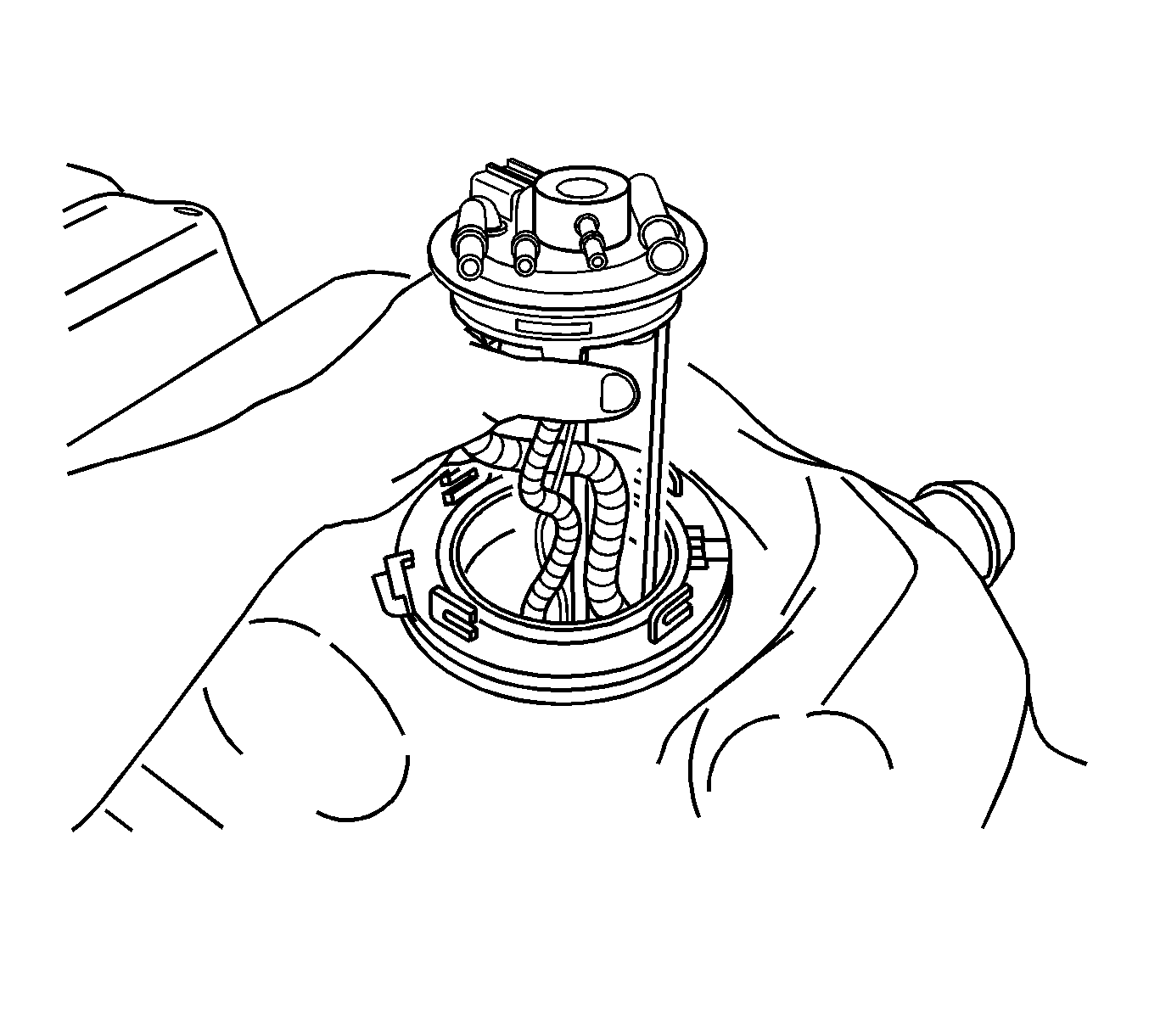

  5. Fig 2: View Of Sending Unit & Seal
    GM1488784Courtesy of GENERAL MOTORS CORP.
  6. Remove the sending unit and seal. Discard the seal.
  7. Clean the sending unit sealing surfaces.
  8. Fig 3: Checking Lock Ring For Flatness
    GM1617750Courtesy of GENERAL MOTORS CORP.
    NOTE: Some lock rings were manufactured with "DO NOT REUSE" stamped into them. These lock rings may be reused if they are not damaged or warped.
    NOTE: Inspect the lock ring for damage due to improper removal or installation procedures. If damage is found, install a NEW lock ring.
    NOTE: Check the lock ring for flatness.
  9. Place the lock ring on a flat surface. Measure the clearance between the lock ring and the flat surface using a feeler gauge at 7 points.
  10. If warpage is less than 0.41 mm (0.016 in), the lock ring does not require replacement.
  11. If warpage is greater than 0.41 mm (0.016 in), the lock ring must be replaced.
