Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

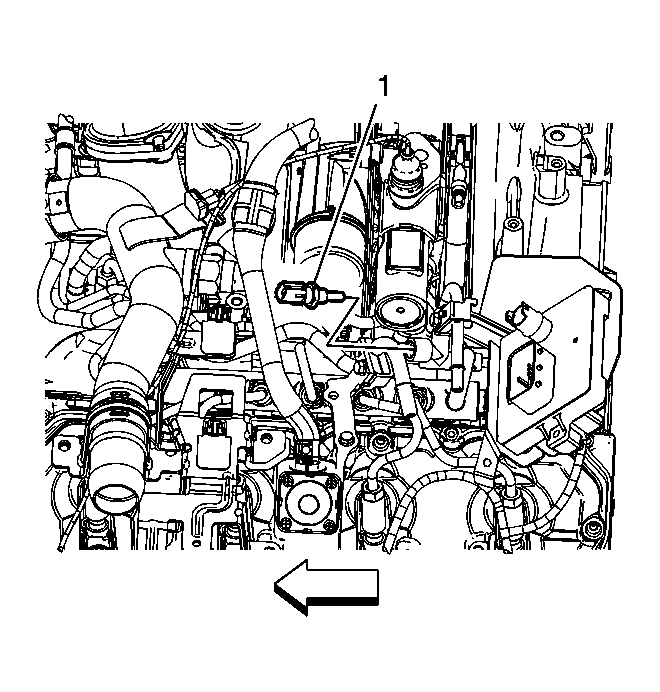

Fig 1: View Of Fuel Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the fuel temperature sensor (1) to the fuel return pipe.
Tighten: Tighten the sensor to 22 N.m (16 lb ft).

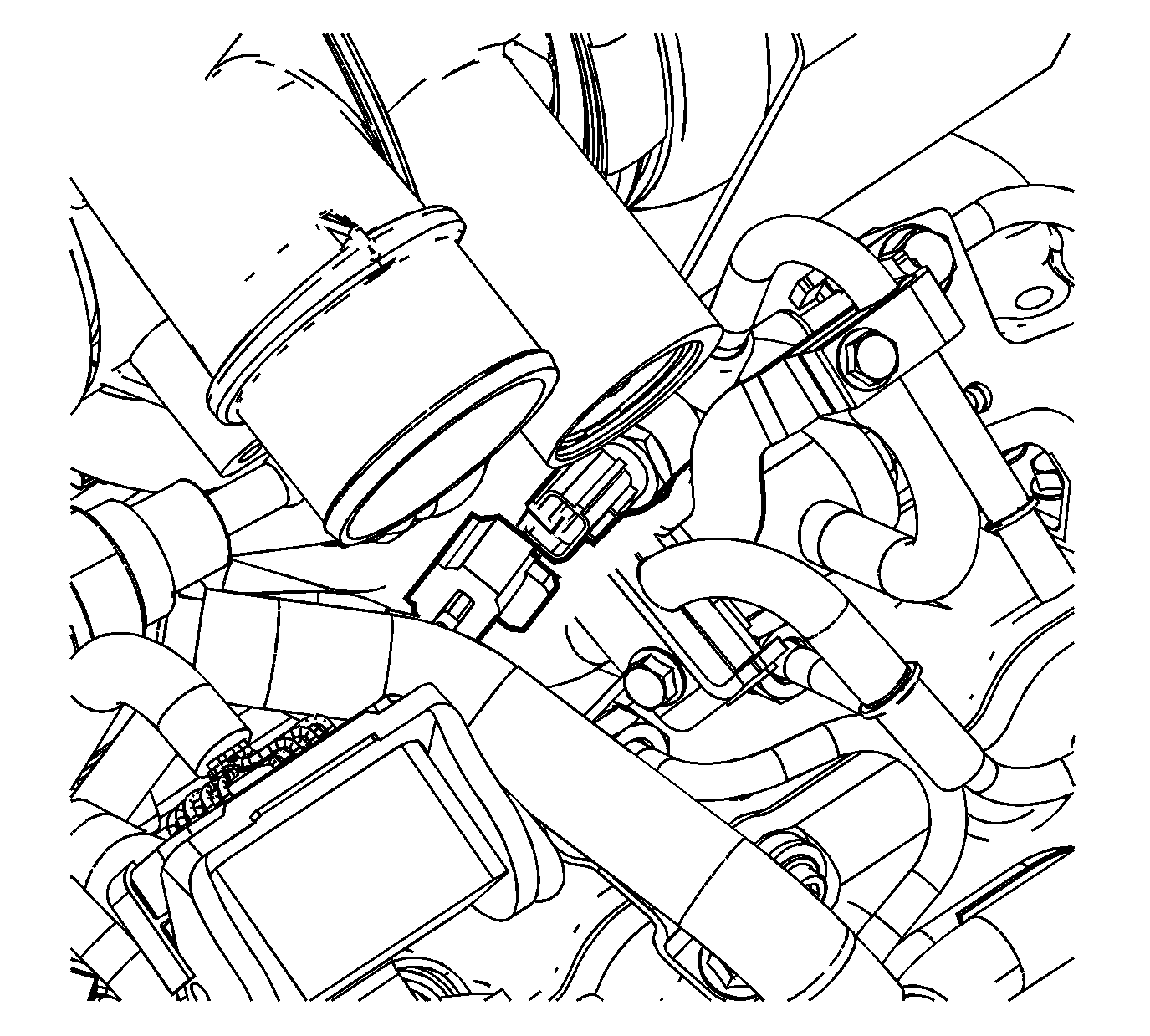

Fig 2: View Of Fuel Temperature Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector to the fuel temperature sensor.
Prime the fuel system. Refer to Fuel System Priming .
Start the engine. If the engine stalls, repeat the above step.
Once the engine starts, inspect for fuel leaks.
