Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

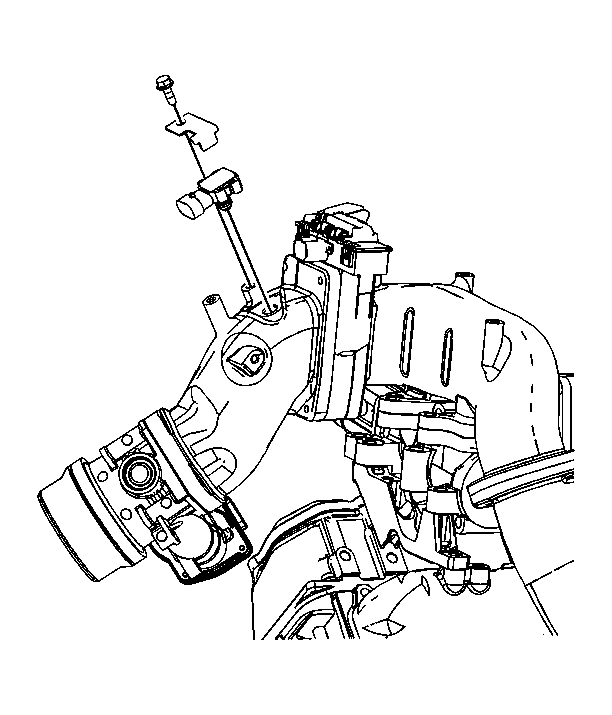

    Fig 1: View Of MAP Sensor, Bracket & Bolt
    GM1871204Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor and bracket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the MAP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

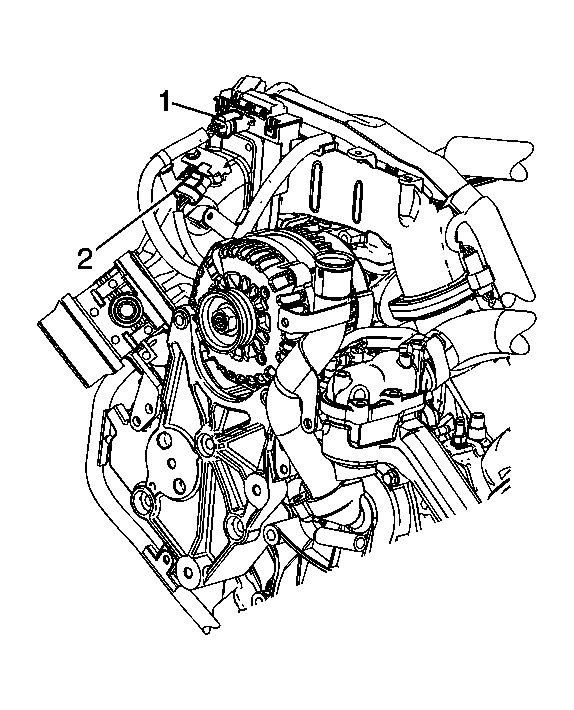

    3. Fig 2: View Of Intake Air Heater (IAH) & Manifold Absolute Pressure (MAP) Sensor Electrical Connectors
    GM1871195Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (2) to the MAP sensor.
