Installation Procedure
WARNING: This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Position the fuel tubes of the fuel meter body in the forward position.
- Install the fuel meter body into the fuel meter body bracket on the lower intake manifold.

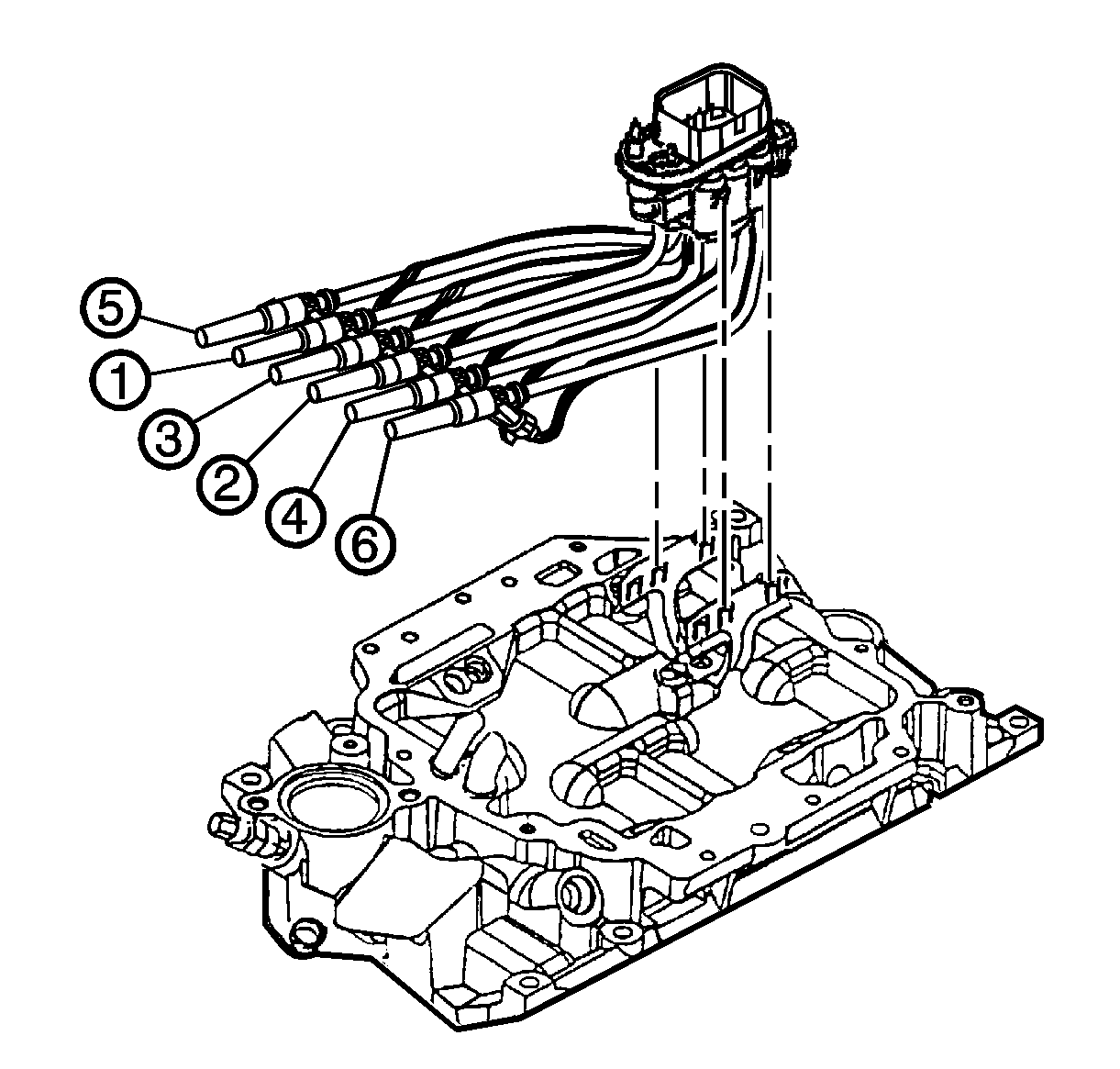

- Install the 6 injectors into the proper lower intake manifold bores in proper sequence (5, 1, 3, 2, 4, 6).
- Inspect the injectors in order to ensure that they are firmly seated and locked in the lower intake manifold bores.
- Ensure that the electrical connections of the injectors are positioned so that they do not interfere with each other, and are pointing towards the center of the intake manifold. Rotate the electrical connections inboard if necessary. Also, ensure there is no tension on the injector wires.
- Install the upper intake manifold. Refer to Upper Intake Manifold Replacement .
- Tighten the fuel fill cap.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Single Battery) or Battery Negative Cable Disconnection and Connection (Dual Batteries) or Battery Negative Cable Disconnection and Connection (Auxiliary Battery) .
- Test for fuel leaks using the following procedure:
- Turn the ignition ON, with the engine OFF, for 2 seconds.
- Turn the ignition OFF for 10 seconds.
- Turn the ignition ON, with the engine OFF.
- Inspect for fuel leaks.
NOTE:
All injector lines must face forward as the fuel meter body is snapped into the bracket. Also, the number 3 fuel tube must be positioned behind the number 1 fuel tube in order to eliminate interference with the upper intake manifold when installed.
