Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

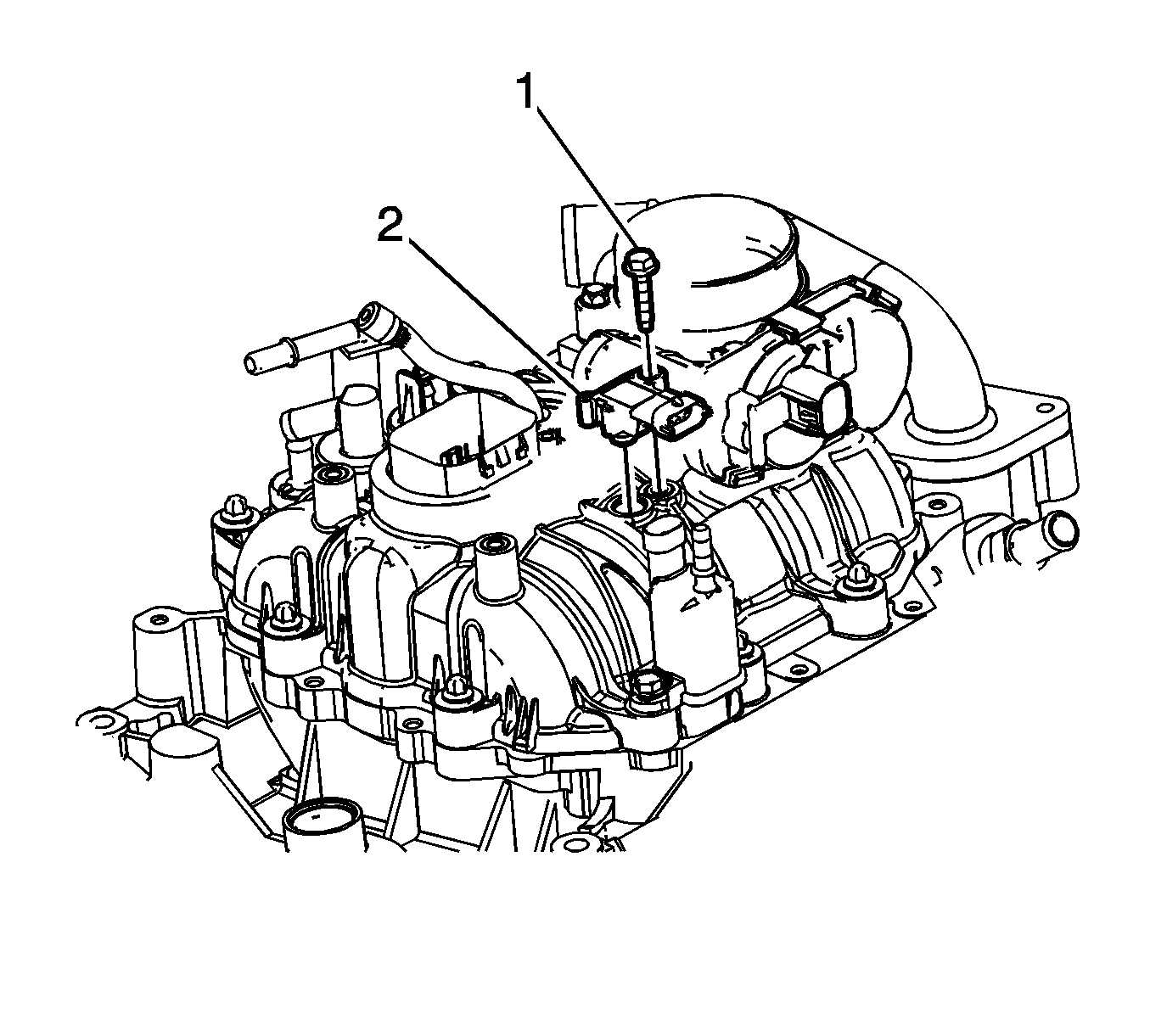

    Fig 1: View Of MAP Sensor & Bolt
    GM1876319Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW MAP sensor seal to the MAP sensor, if necessary.
  2. Install the MAP sensor (2) to the upper intake manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the MAP sensor bolt (1).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

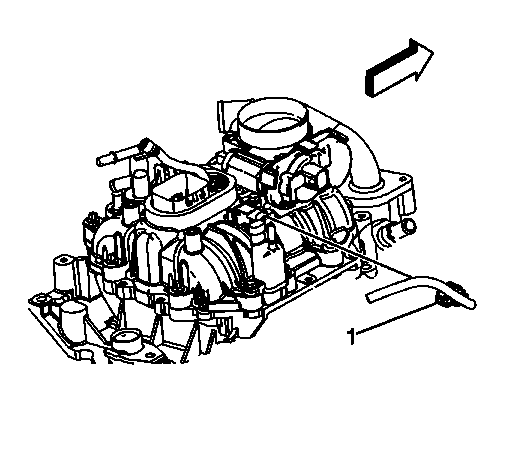

    4. Fig 2: View Of Engine Wiring Harness Electrical Connector
    GM1876318Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the MAP sensor.
