Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

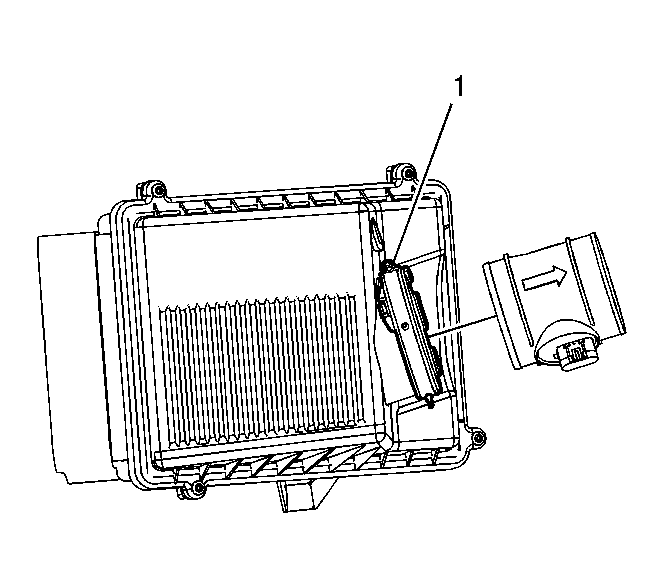

Fig 1: View Of MAF/IAT Sensor Seal Clamp

Courtesy of GENERAL MOTORS CORP.

NOTE: The embossed arrow on the MAF/IAT sensor indicates the proper air flow direction. The arrow must point toward the engine.

Install the MAF/IAT sensor to the air cleaner assembly.

CAUTION: Refer to Fastener Caution .

Tighten the MAF/IAT sensor seal clamp.
Tighten: Tighten the clamp to 4 N.m (35 lb in).

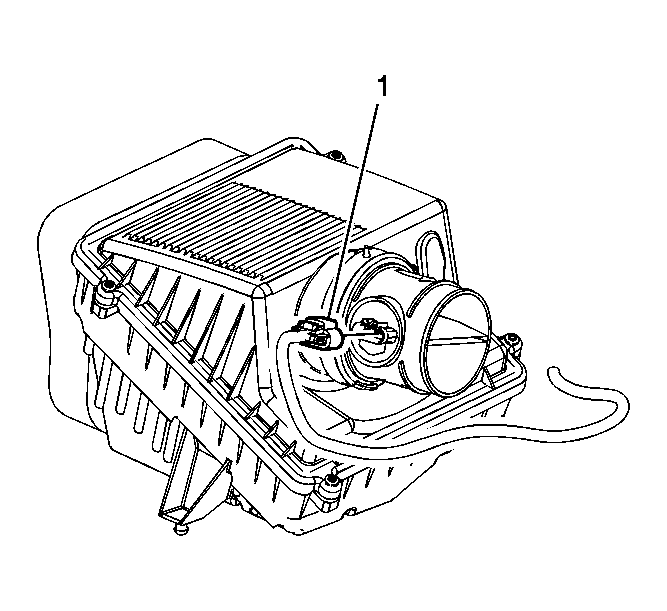

Fig 2: View Of Engine Wiring Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
