Installation Procedure
WARNING: This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- If reinstalling the old spark plug wires, apply dielectric grease GM PN 12345579 (Canadian PN 10953481), or equivalent to the inside the spark plug wire boots.
- Install the appropriate spark plug wire(s)
- Close the spark plug wire separators (1).
- Install the appropriate spark plug wire boot(s) (2) to the spark plug. (left side shown, right similar).

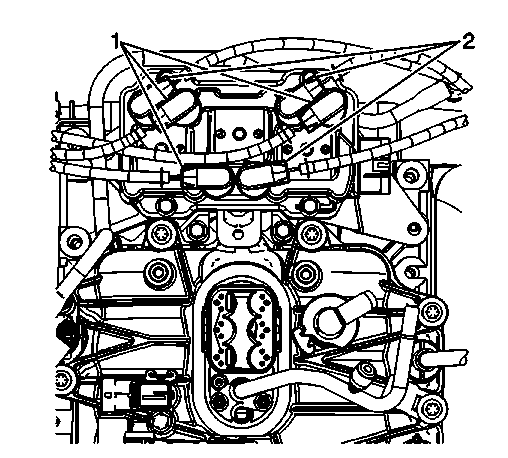

- Install the appropriate spark plug wire boot(s) (1, 2) to the ignition coil.

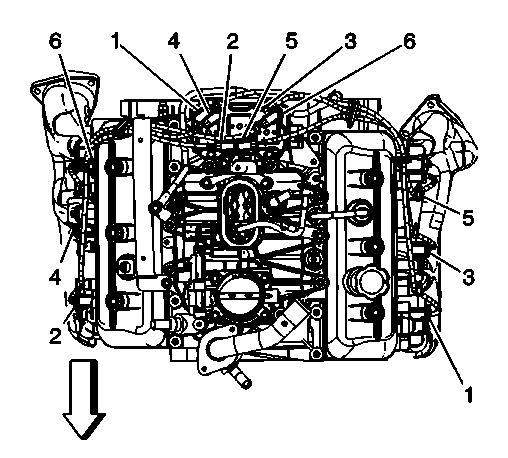

- Inspect the spark plug wires for proper routing (1, 2, 3, 4, 5, 6) and installation.
- Push sideways on each boot in order to inspect the seating.
- Reinstall any loose boot.
- Any time the spark plug wire or boot are installed on the spark plug, new dielectric grease needs to be applied inside the boot.
CAUTION:
If the boot to wire movement has occurred, the boot will give a false visual impression of being fully seated. Ensure that the boots have been properly assembled by pushing sideways on the installed boots. Failure to properly seat the terminal onto the spark plug will lead to wire core erosion and result in an engine misfire or crossfire condition, and possible internal damage to the engine.
