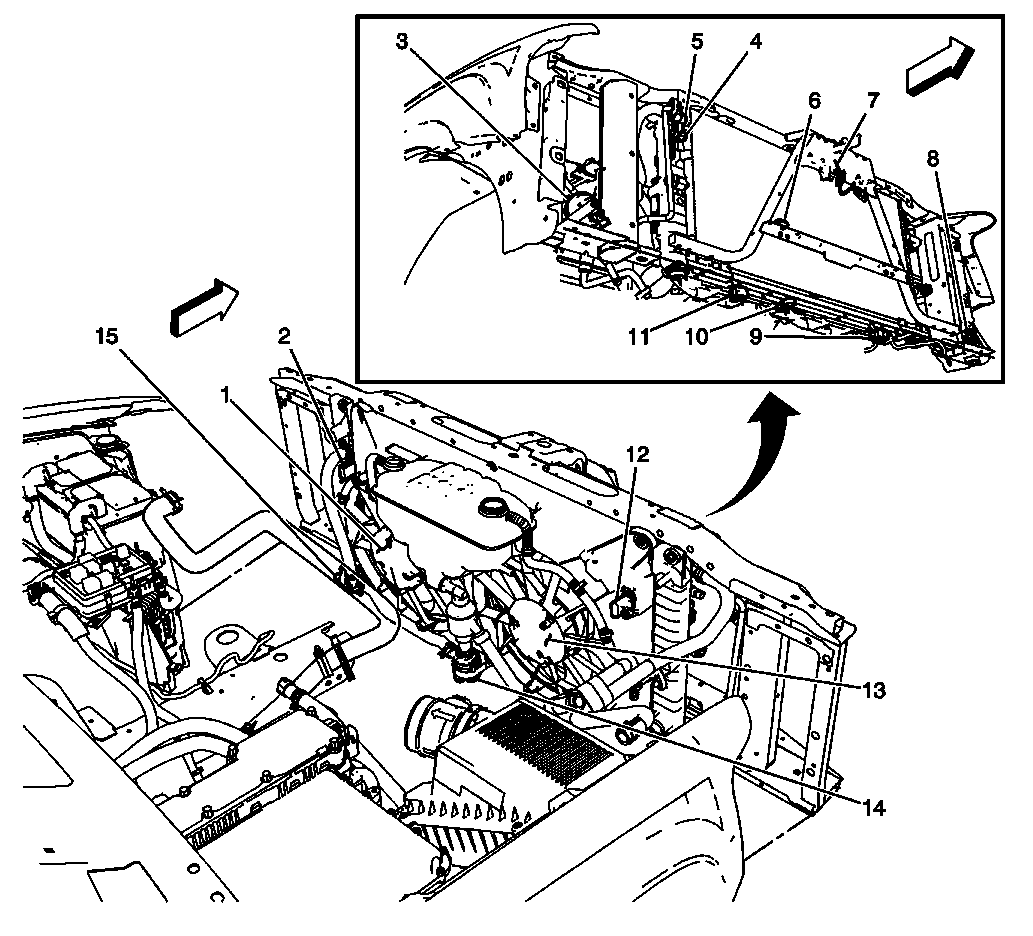

Front of Vehicle Components (10 Series)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Engine Cooling Fan - Left |
| 2 | Engine Cooling Fan - Resistor Left (HP2) |
| 3 | Horn - Right (7Z1/YE9/HP2) |
| 4 | Generator Control Module Temperature Sensor (HP2) |
| 5 | A/C Low Pressure Sensor (HP2) |
| 6 | Ambient Air Temperature Sensor (CJ2/C67)) |
| 7 | Hood Ajar Switch (AP3/AP8) |
| 8 | Horn - Left |
| 9 | Inflatable Restraint Front End Sensor - Left |
| 10 | High Voltage Circuit Impact Detection Sensor (HP2) |
| 11 | Inflatable Restraint Front End Sensor - Right |
| 12 | Engine Cooling Fan Resistor - Right (HP2) |
| 13 | Engine Cooling Fan - Right |
| 14 | Generator Control Module Coolant Pump - Right (HP2) |
| 15 | Generator Control Module Coolant Pump - Left (HP2) |
