Front of the Vehicle Components (except 10 Series)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

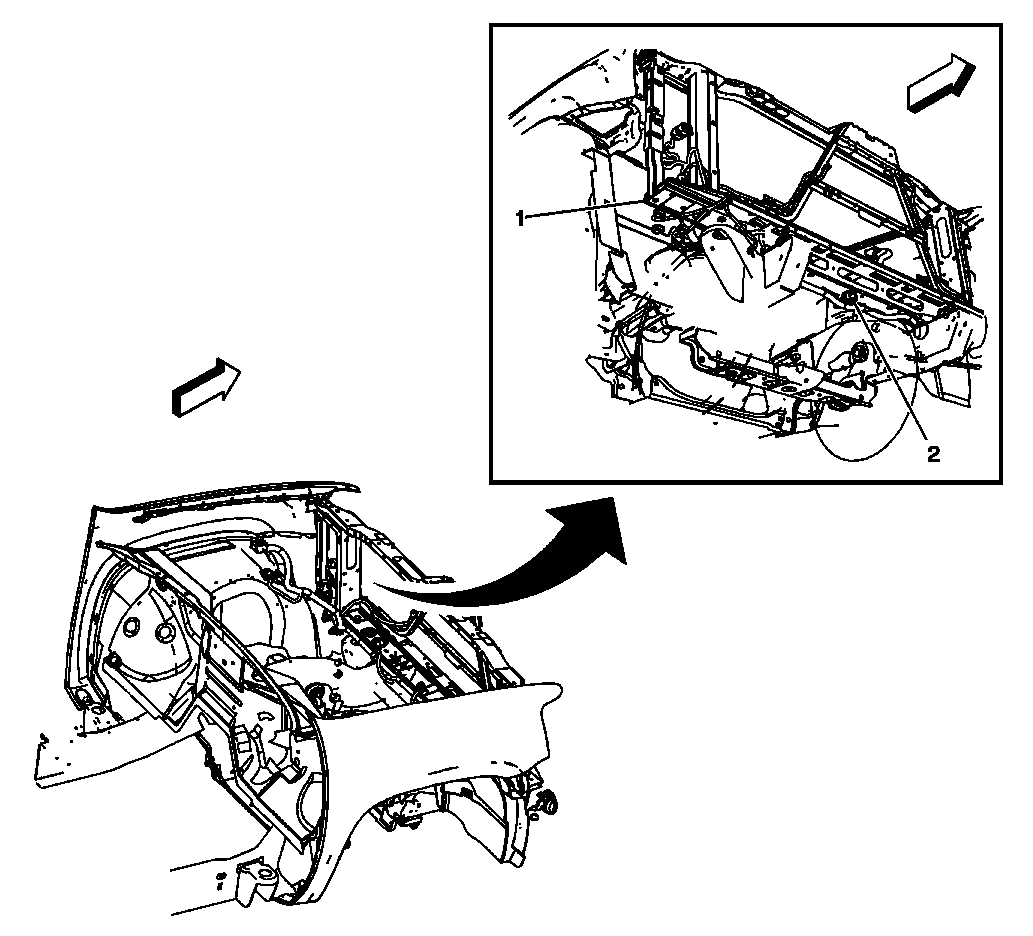

Fig 1: Front of the Vehicle Components (except 10 Series)
GM1922981Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Lower Radiator Support
2 Inflatable Restraint Front End Sensor
