Left Rear of the Engine Compartment Components (HP2)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

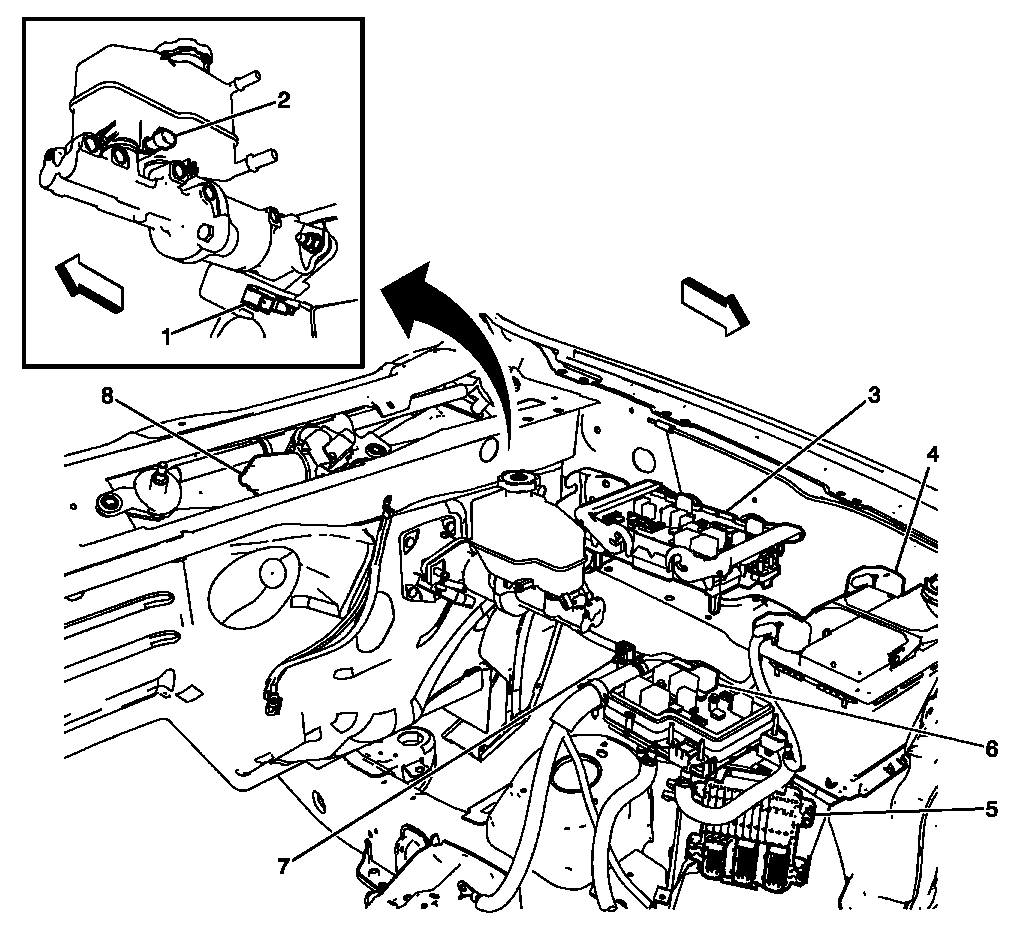

Fig 1: Left Rear of the Engine Compartment Components (HP2)
GM2161008Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Master Cylinder Piston Position Sensor
2 Brake Fluid Level Switch
3 Fuse Block - Underhood
4 Battery
5 Engine Control Module (ECM)
6 Fuse Block - Auxiliary
7 Battery Current Sensor
8 Windshield Wiper Motor
