Left Rear of the Engine Compartment Components (except HP2)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

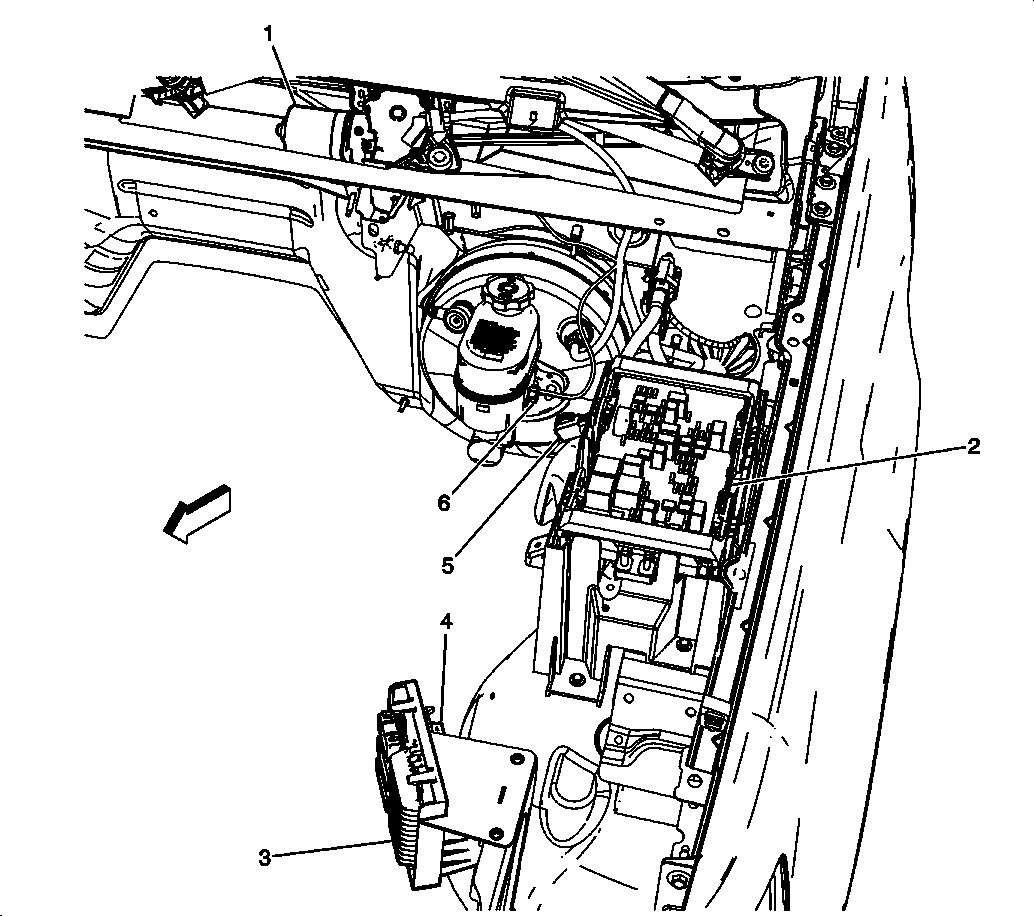

Fig 1: Left Rear of the Engine Compartment Components (except HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Fuse Block - Underhood
3	Engine Control Module (ECM)
4	Transmission Control Module (TCM) (M30 or MW7)
5	Brake Booster Vacuum Sensor (JL4 with 10 Series)/Brake Master Cylinder Pressure Sensor (JL1)
6	Brake Fluid Level Switch
