Rear of the Engine Compartment Components (TP2)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

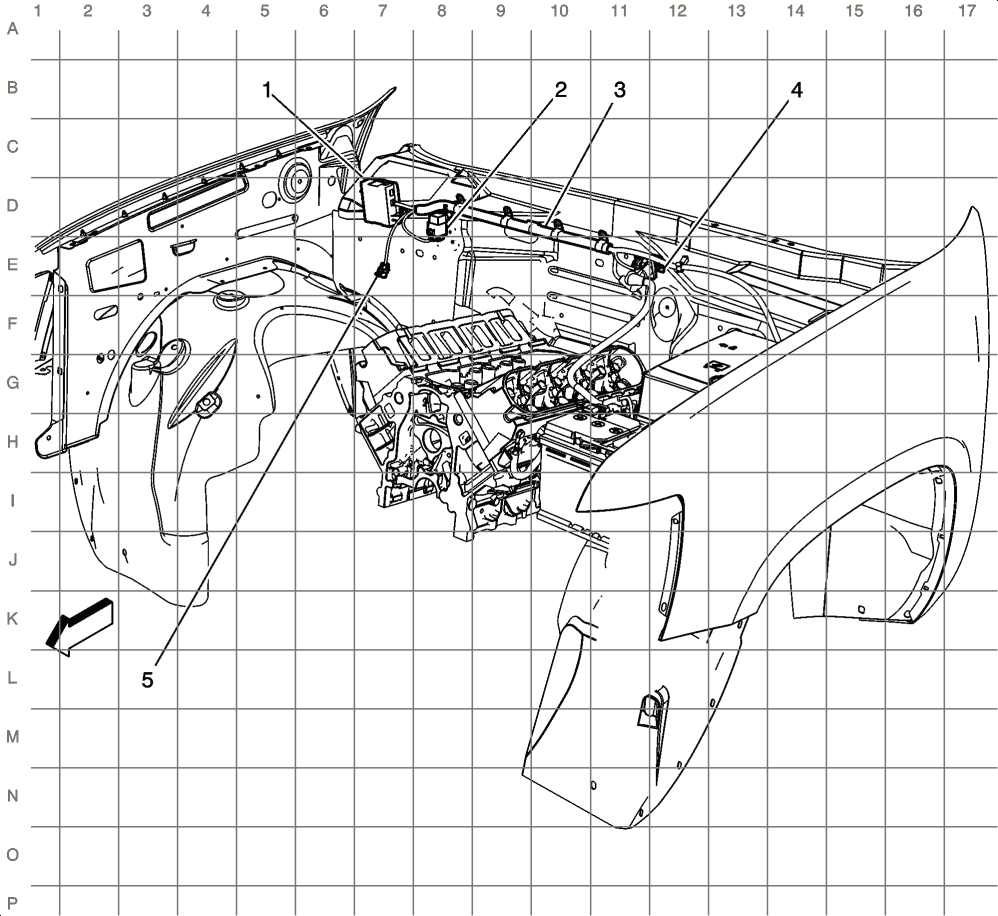

Fig 1: Rear of the Engine Compartment Components (TP2)
GM1934393Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Holder
2 Auxiliary Battery Run Relay
3 Auxiliary Battery Harness
4 Auxiliary Battery Relay
5 X122
