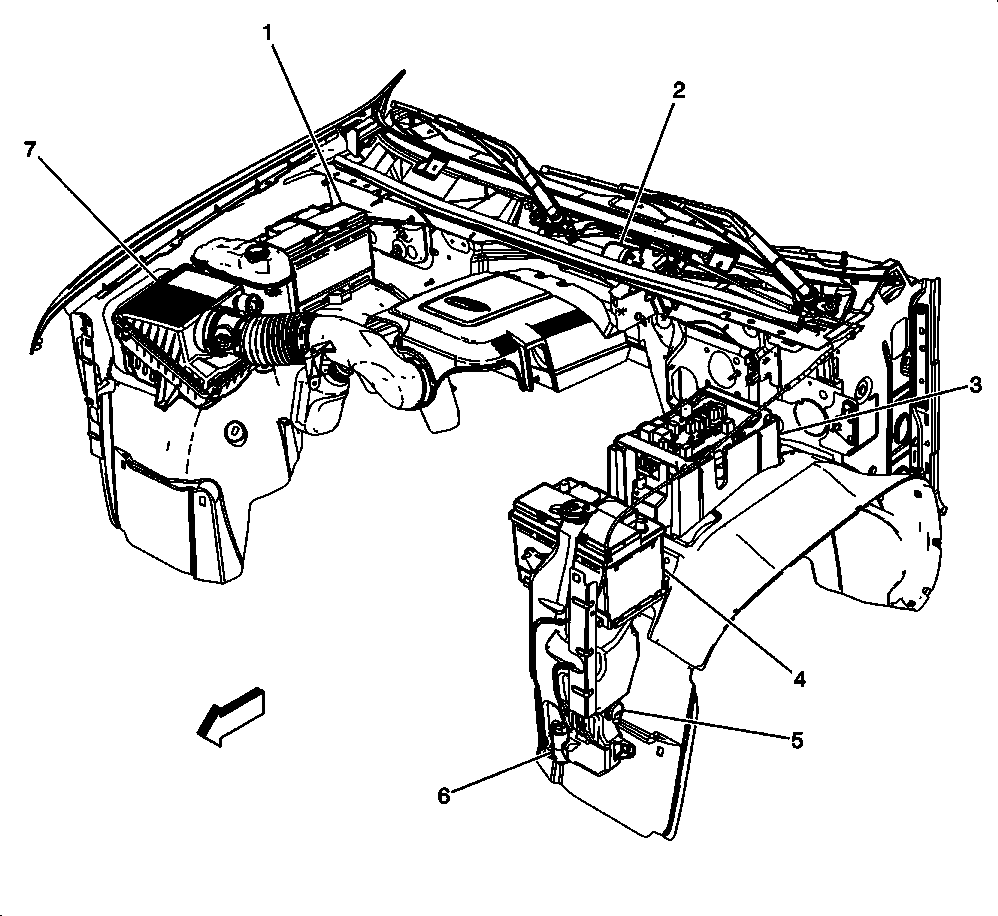

Rear of the Engine Compartment Components
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Battery - Right |
| 2 |
Windshield Wiper Motor |
| 3 |
Fuse Block - Underhood |
| 4 |
Battery - Left (Diesel, 6A6 or T92) |
| 5 |
Windshield Washer Fluid Level Switch |
| 6 |
Windshield Washer Fluid Pump |
| 7 |
Air Cleaner Box |
