Front of the Engine Components (LFA/HP2)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

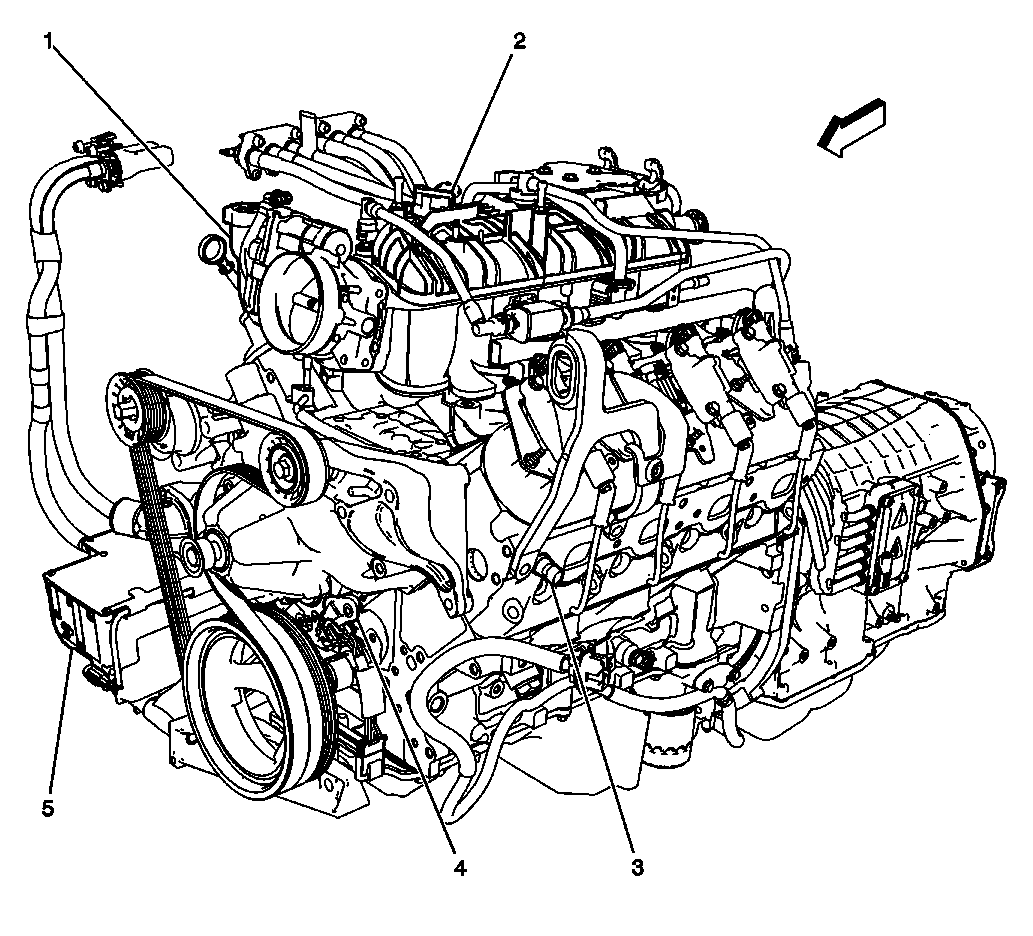

Fig 1: Front of the Engine Components (LFA/HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Body
2	Manifold Absolute Pressure (MAP) Sensor
3	Engine Coolant Temperature (ECT) Sensor
4	Camshaft Position (CMP) Sensor
5	A/C Compressor
