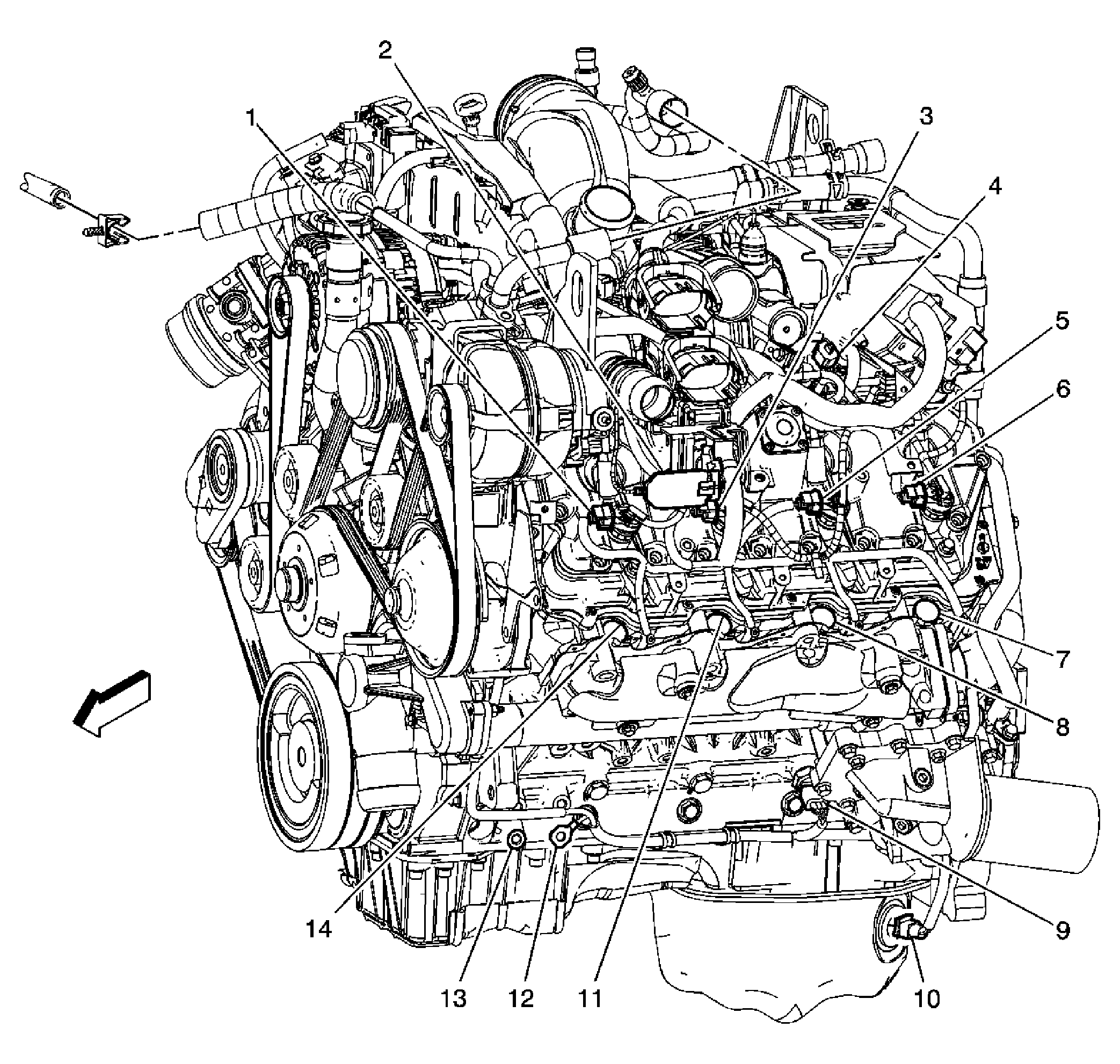

Left Side of the Engine Components (Diesel)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 2 |
| 2 | Turbocharger Vane Position Sensor |
| 3 | Fuel Injector 4 |
| 4 | Fuel Rail Pressure (FRP) Sensor |
| 5 | Fuel Injector 6 |
| 6 | Fuel Injector 8 |
| 7 | Glow Plug 8 |
| 8 | Glow Plug 6 |
| 9 | Engine Oil Pressure (EOP) Sensor |
| 10 | Engine Oil Level (EOL) Switch |
| 11 | Glow Plug 4 |
| 12 | G106 |
| 13 | G102 |
| 14 | Glow Plug 2 |
