Left Side of the Engine Components (LFA/HP2)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

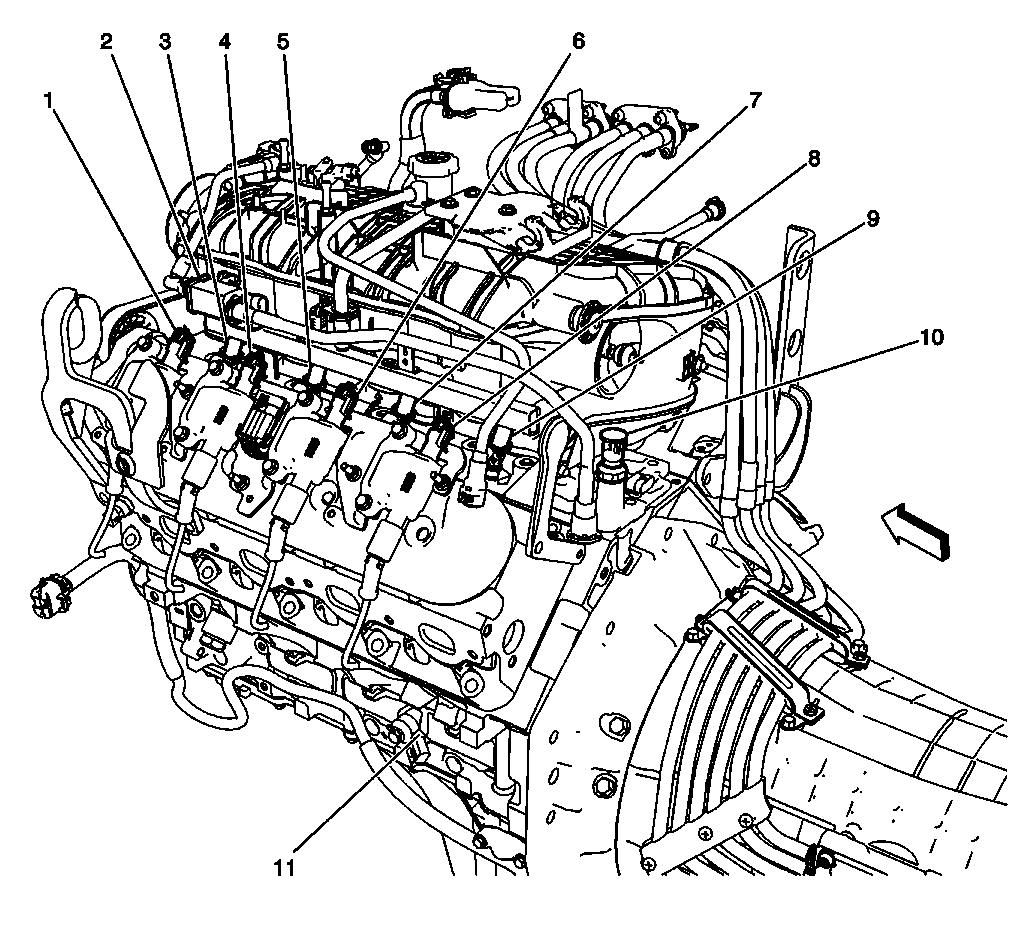

| Callout |
Component Name |
| 1 |
Ignition Coil 1 |
| 2 |
Evaporative Emissions (EVAP) Canister Purge Solenoid Valve |
| 3 |
Fuel Injector 1 |
| 4 |
Ignition Coil 3 |
| 5 |
Fuel Injector 3 |
| 6 |
Ignition Coil 5 |
| 7 |
Fuel Injector 5 |
| 8 |
Ignition Coil 7 |
| 9 |
Fuel Injector 7 |
| 10 |
Engine Oil Pressure (EOP) Sensor |
| 11 |
Knock Sensor (KS) 1 |
