Rear of the Engine Components (4.3L)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

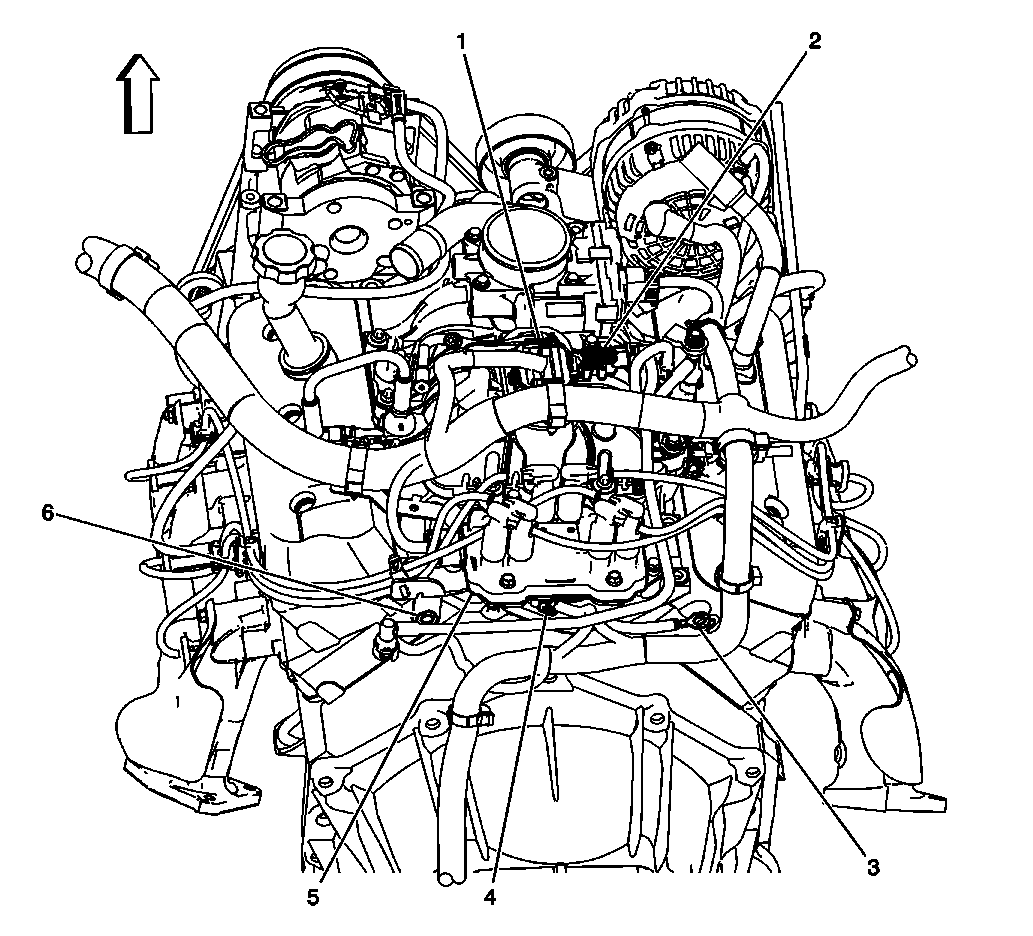

Fig 1: Rear of the Engine Components (4.3L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Central Sequential Fuel Injection (Central SFI) Module
2	Manifold Absolute Pressure (MAP) Sensor
3	G106
4	Engine Oil Pressure (EOP) Sensor
5	Ignition Control Module (ICM)
6	G107
