Rear of the Engine Components (Diesel)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

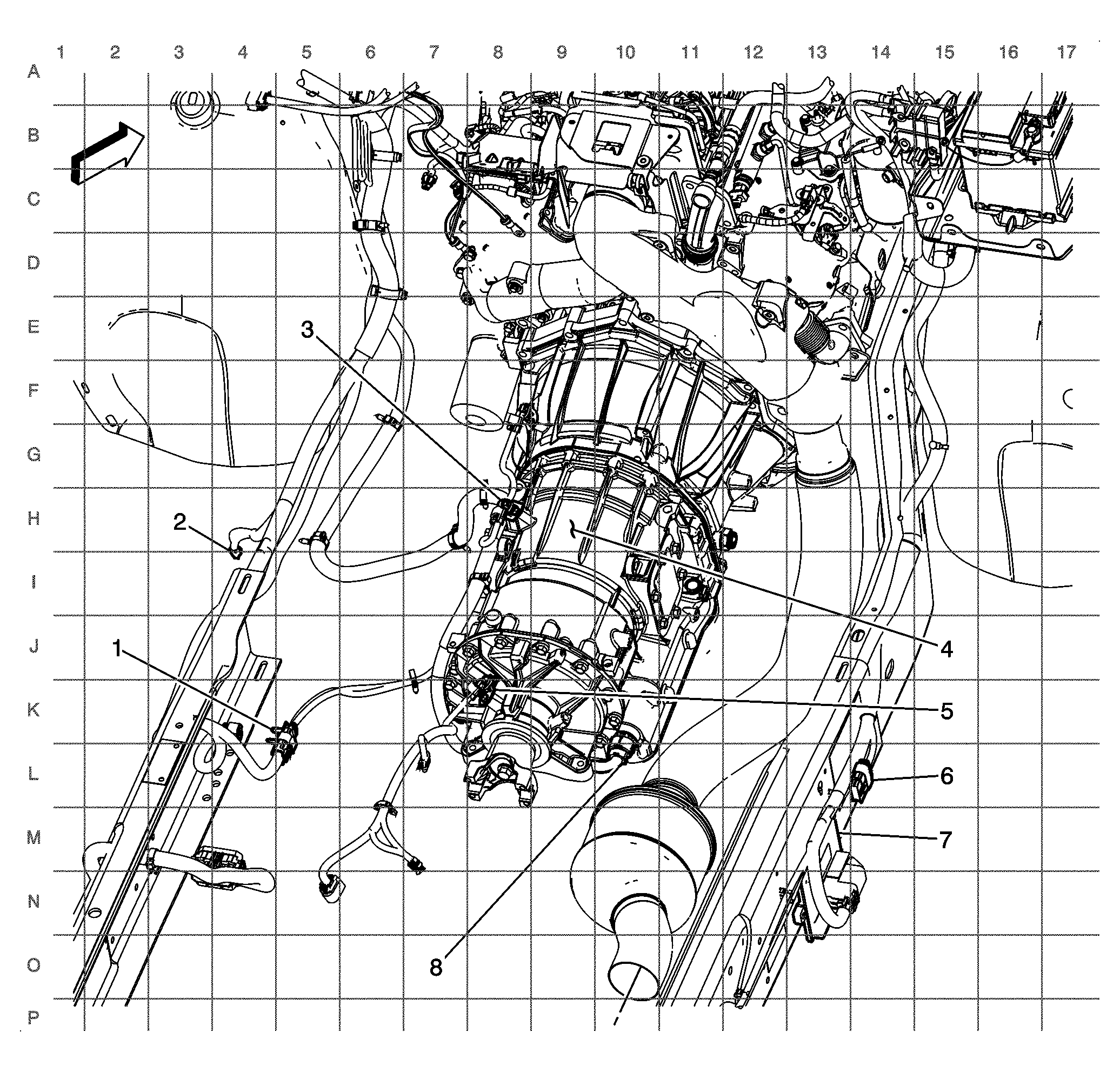

Fig 1: Rear of the Engine Components (Diesel)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X300
2	G300
3	Automatic Transmission Turbine Speed Sensor (MW7)
4	Transmission
5	Vehicle Speed Sensor (VSS) (MW7)
6	X124 (PTO)
7	Power Take Off (PTO) Module (PTO)
8	X175 (MW7)
