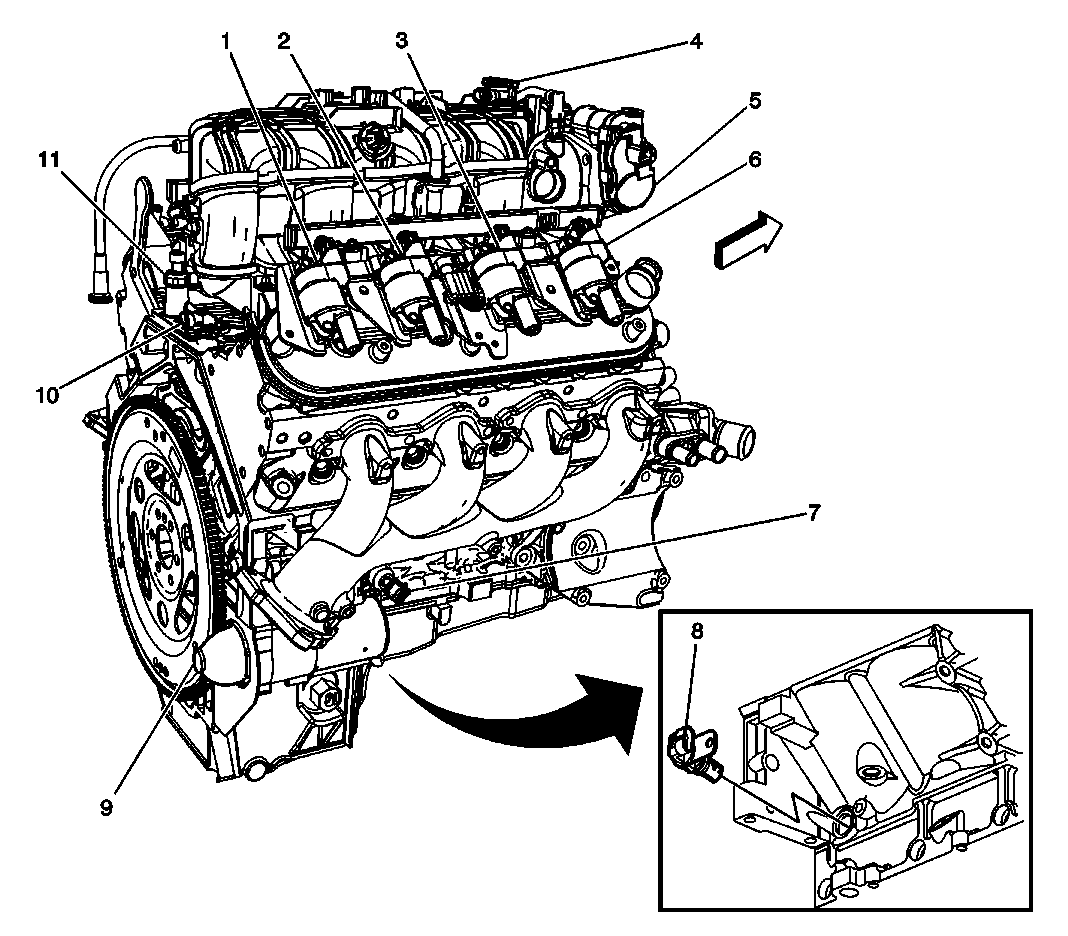

Right Side of the Engine Components (4.8L/5.3L/6.0L/6.2L except LFA/HP2)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Ignition Coil 8 |
| 2 | Ignition Coil 6 |
| 3 | Ignition Coil 4 |
| 4 | Manifold Absolute Pressure (MAP) Sensor |
| 5 | Throttle Body |
| 6 | Ignition Coil 2 |
| 7 | Knock Sensor (KS) 2 |
| 8 | Crankshaft Position (CKP) Sensor |
| 9 | Starter Motor |
| 10 | Valve Lifter Oil Manifold (VLOM) Assembly (5.3L/6.0L except LY6) |
| 11 | Engine Oil Pressure (EOP) Sensor |
