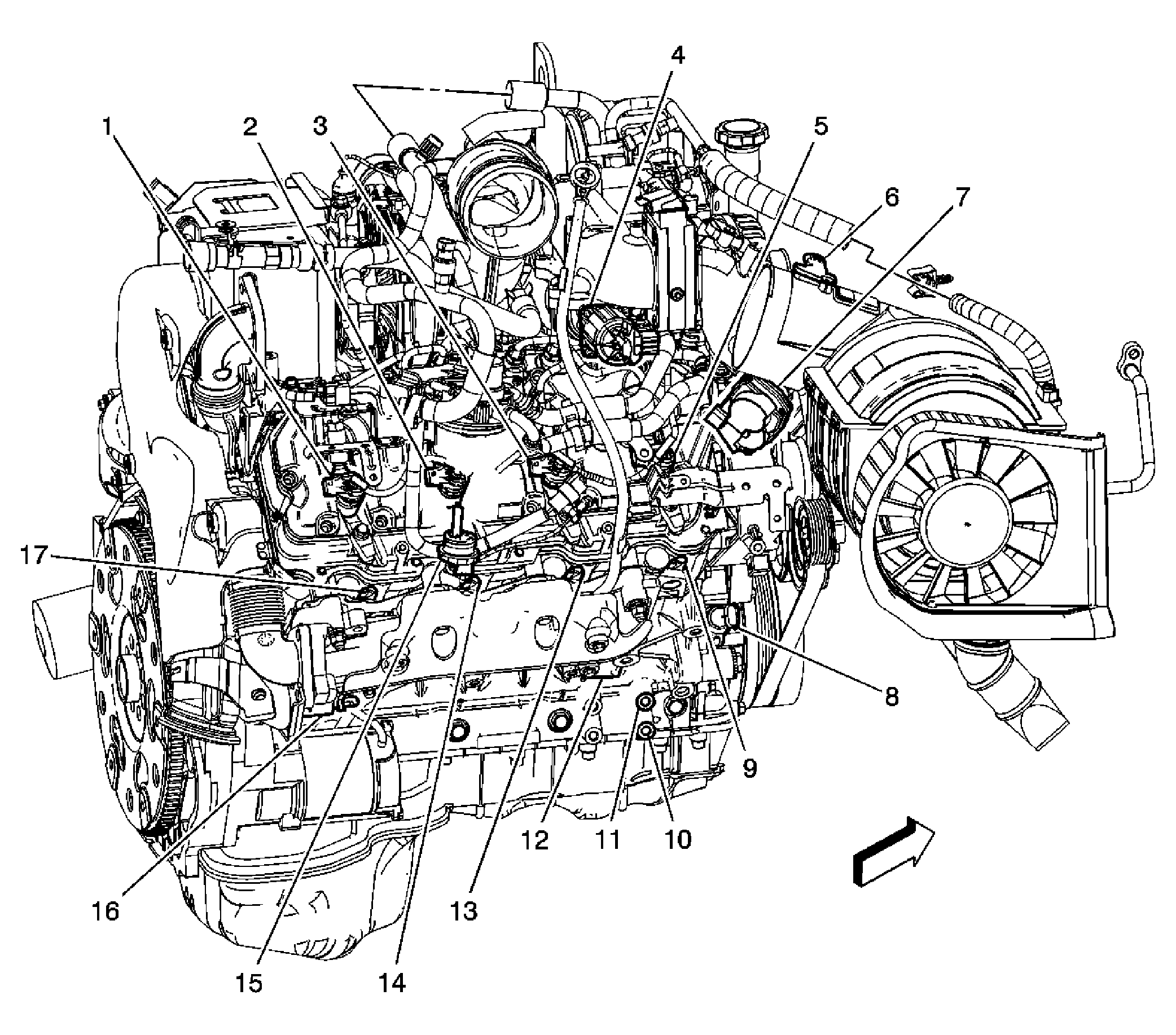

Right Side of the Engine Components (Diesel)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 7 |
| 2 | Fuel Injector 5 |
| 3 | Fuel Injector 3 |
| 4 | Exhaust Gas Recirculation (EGR) Valve |
| 5 | Fuel Injector 1 |
| 6 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
| 7 | Intake Air Valve |
| 8 | Crankshaft Position (CKP) Sensor |
| 9 | Glow Plug 1 |
| 10 | G103 |
| 11 | G105 |
| 12 | Block Heater |
| 13 | Glow Plug 3 |
| 14 | Glow Plug 5 |
| 15 | Water In Fuel Sensor |
| 16 | Starter Motor |
| 17 | Glow Plug 7 |
