Right Side of the Engine Components (LFA/HP2)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

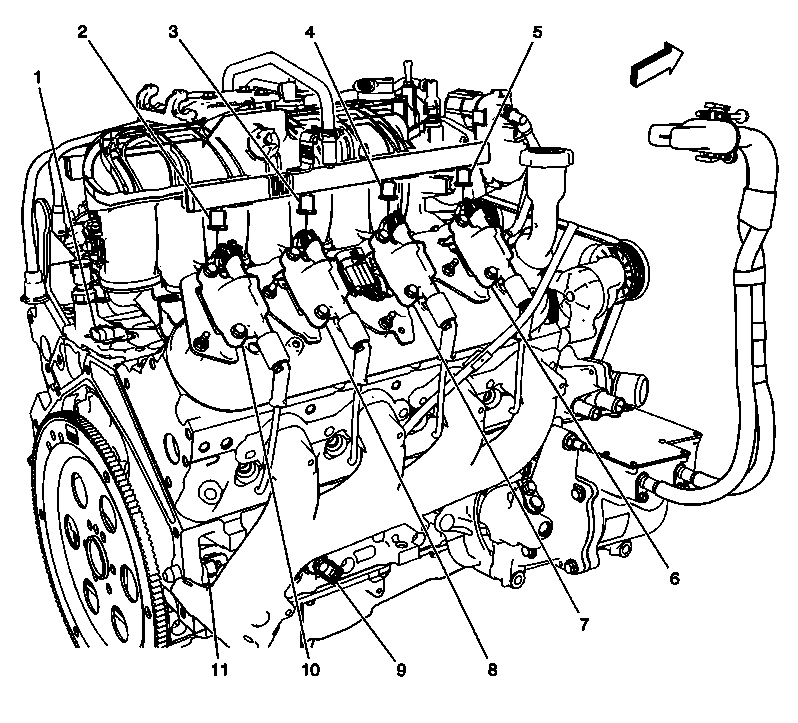

| Callout |
Component Name |
| 1 |
Valve Lifter Oil Manifold (VLOM) Assembly |
| 2 |
Fuel Injector 8 |
| 3 |
Fuel Injector 6 |
| 4 |
Fuel Injector 4 |
| 5 |
Fuel Injector 2 |
| 6 |
Ignition Coil 2 |
| 7 |
Ignition Coil 4 |
| 8 |
Ignition Coil 6 |
| 9 |
Knock Sensor (KS) 2 |
| 10 |
Ignition Coil 8 |
| 11 |
Crankshaft Position (CKP) Sensor |
