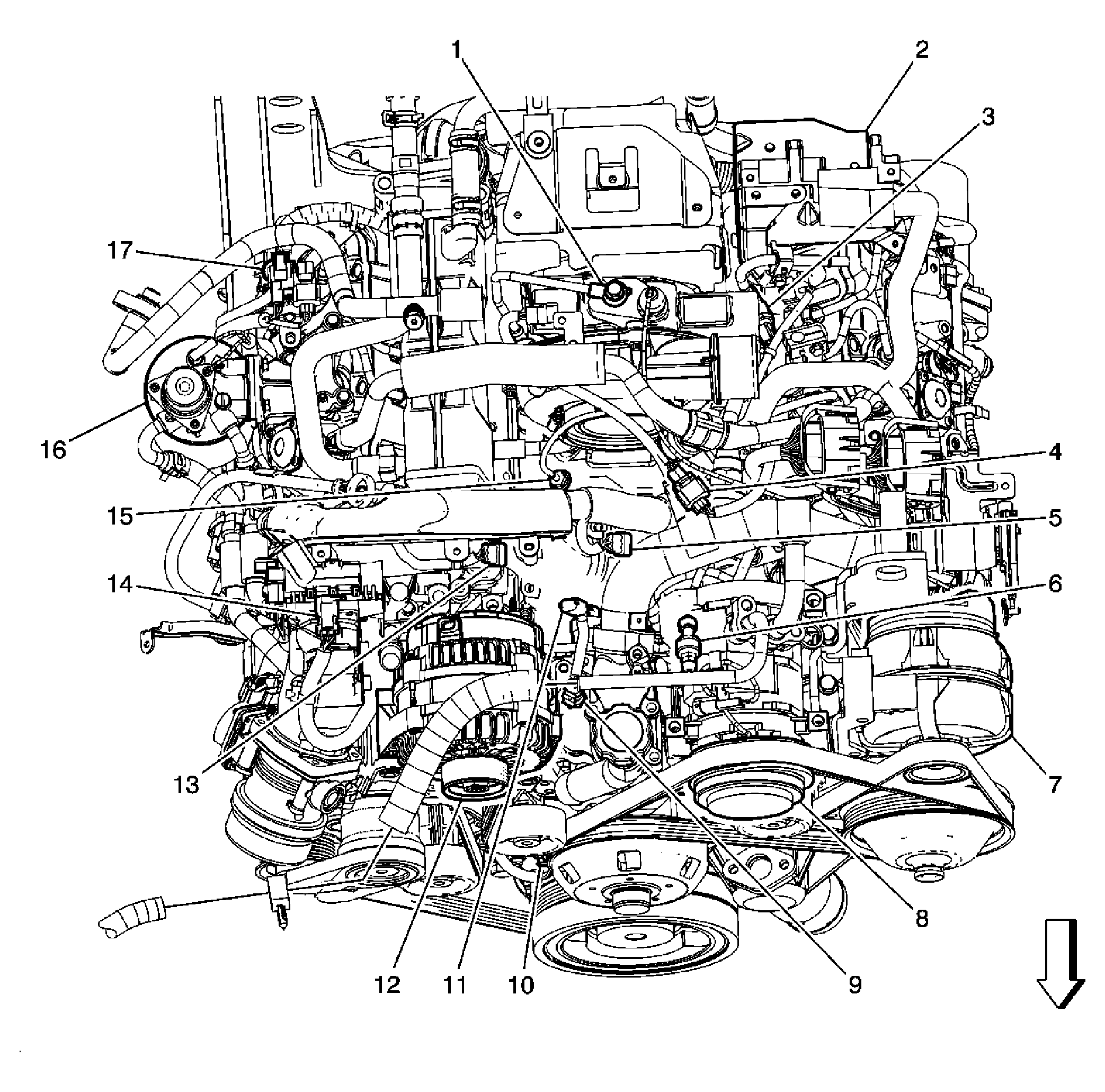

Top of the Engine Components (Diesel)
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Vane Position Control Solenoid Valve |
| 2 | Glow Plug Control Module (GPCM) |
| 3 | Fuel Temperature Sensor |
| 4 | Intake Air Temperature (IAT) Sensor 2 Connector |
| 5 | X128 |
| 6 | A/C Refrigerant Pressure Sensor (C67 or CJ2) |
| 7 | Generator - Auxiliary (K76 or YF2) |
| 8 | A/C Compressor Clutch (C67 or CJ2) |
| 9 | Engine Coolant Temperature (ECT) Sensor |
| 10 | Camshaft Position (CMP) Sensor |
| 11 | X127 |
| 12 | Generator |
| 13 | Manifold Absolute Pressure (MAP) Sensor |
| 14 | Intake Air Heater (IAH) |
| 15 | Intake Air Temperature (IAT) Sensor 2 |
| 16 | Fuel Heater |
| 17 | X117 |
