Right Side of the Passenger Compartment Components (Extended/Crew Cab)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

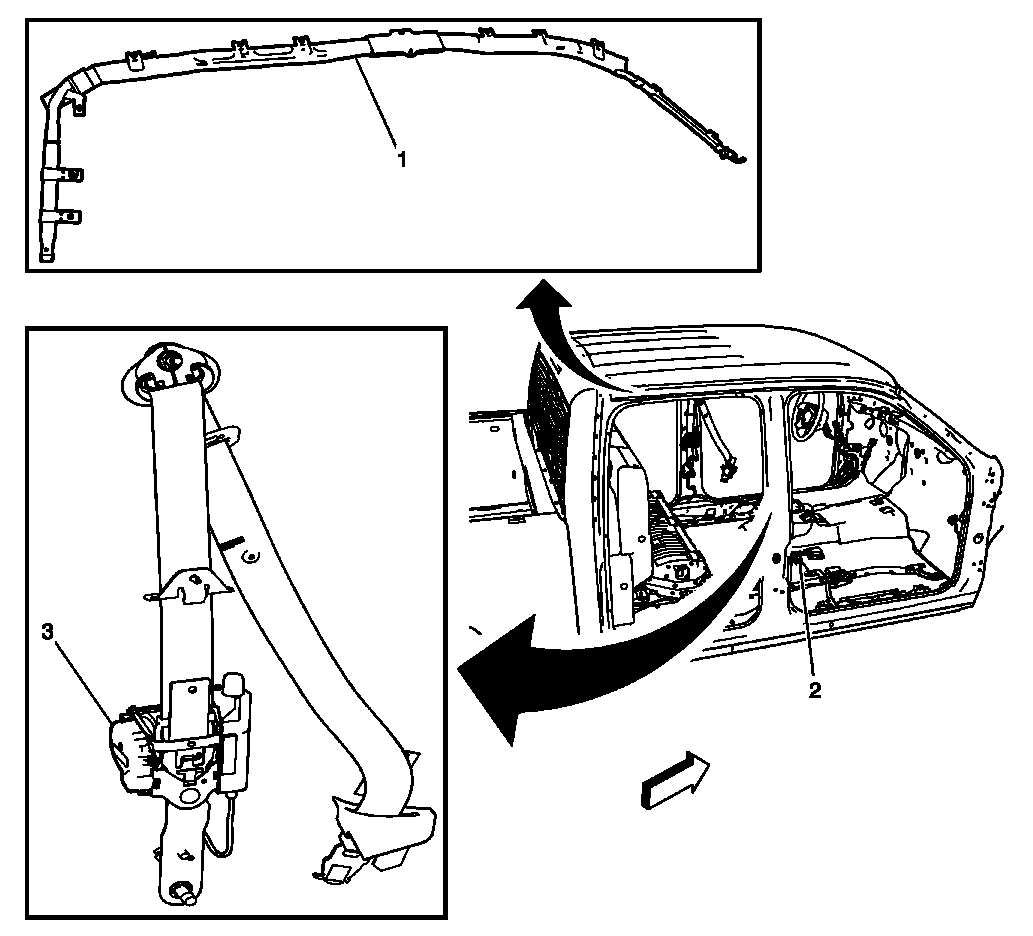

Fig 1: Right Side of the Passenger Compartment Components (Extended/Crew Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Passenger (ASF)
2	Data Link Resistor 2 (HP2)
3	Seat Belt Pretensioner - Passenger
