Seat Back Ventilation Heating and Cooling Module - Passenger (KB6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

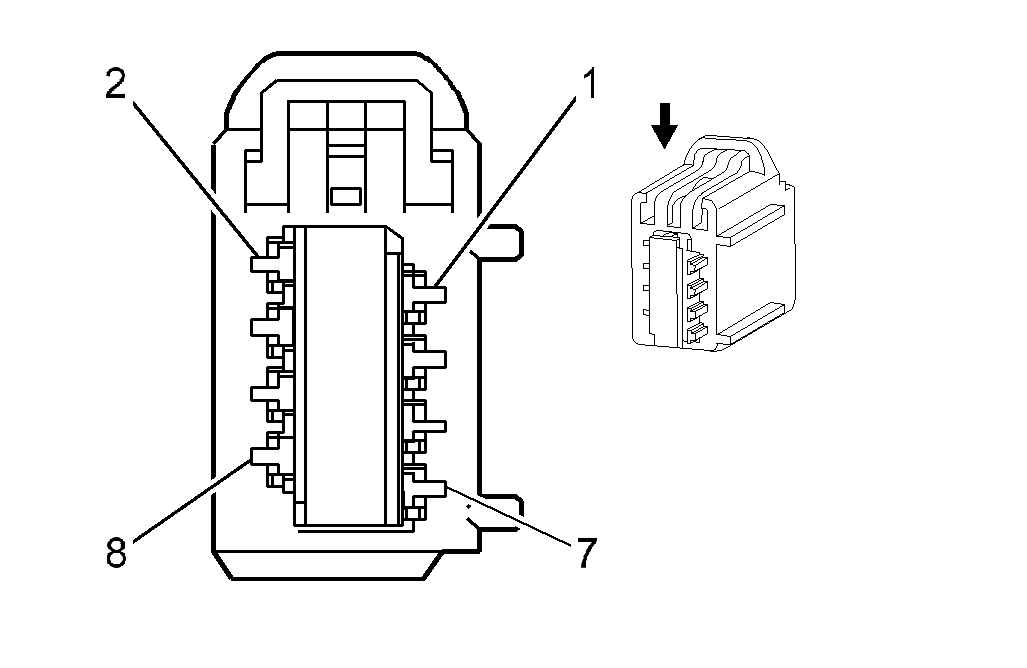

Fig 1: Seat Back Ventilation Heating and Cooling Module - Passenger (KB6) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	1 YE	6197	Passenger Seat Back Heated/Cool Ventilation Module Heat Control
2	0.35 WH	5194	Passenger Seat Blower Voltage Reference
3	1 D-BU/WH	6198	Passenger Seat Back Heated/Cool Ventilation Module Cool Control
4	0.35 L-GN	5916	Low Reference
5	0.35 TN	2436	Passenger Seat Back Temperature Sensor Signal
6	-	-	Not Used
7	0.35 WH/BU	7011	Passenger Seat Back Blower Speed Control
8	0.35 TN	2482	Low Reference

Connector Part Information

Harness Type: Passenger Seat
OEM Connector: E3575-001
Service Connector: Service by Harness - See Part Catalog
Description: 8-Way F 1.5mm Unsealed (BK)

Terminal Part Information

Pins: 1, 3
Terminated Lead: 13575829
Release Tool: J-38125-11A
Diagnostic Test Probe: J-35616-2A (GY)
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A

Pins: 2, 4, 5, 7, 8
Terminated Lead: 13578891
Release Tool: J-38125-11A
Diagnostic Test Probe: J-35616-2A (GY)
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
